Smart Junction Box (SJB): Notes
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

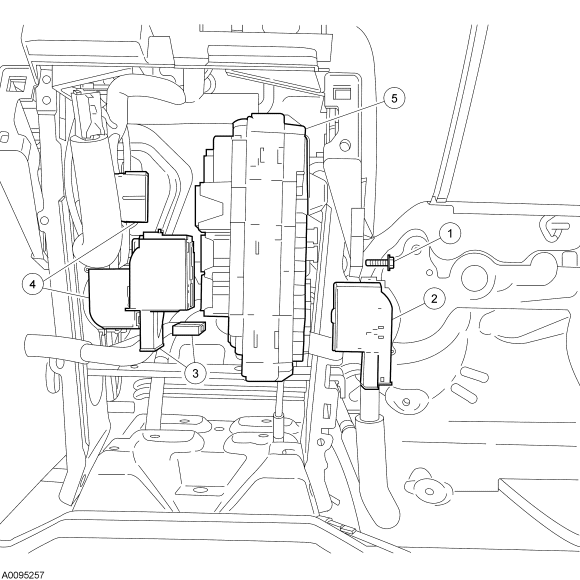

| Item |
Part Number |
Description |
| 1 |
N807011 |
SJB screw |
| 2 |
- |
SJB electrical connector (part of 14290) |
| 3 |
- |
SJB electrical connectors (part of 14401) |
| 4 |
- |
SJB electrical connectors (part of 14405) |
| 5 |
14A068B |
SJB |
