Pinpoint Test D: The Powertrain Control Module (Pcm) Does Not Respond To The Diagnostic Tool

WARNING: This page is about a different car, the 2005 Mercury Sable and 2005 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. D1 CHECK PCM C175 FOR DAMAGE
    • Key in OFF position.
    • Disconnect: PCM C175.
    • Is the PCM C175 OK?
    • Yes  : GO to  D2.
    • No  : REPAIR PCM C175. CARRY OUT the diagnostic tool data link test.
  2. D2 CHECK HIGH SPEED CAN CIRCUITS 1847 (WH/OG) AND 1848 (PK/OG) BETWEEN DLC C251 AND PCM C175 FOR OPEN
    • Key in OFF position.
    • Measure the resistance between the PCM C175 pin 15, circuit 1847 (WH/OG), harness side and the DLC C251 pin 6, circuit 1847 (WH/OG), harness side.

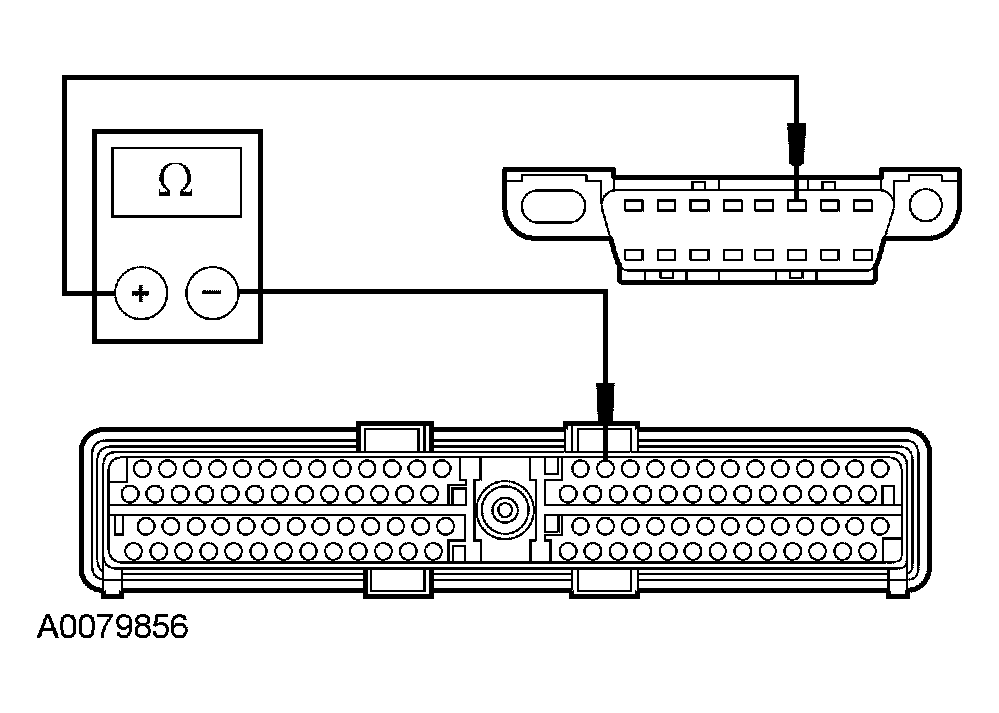

      Fig 1: Measuring Resistance Between PCM C175 Pin 15, Circuit 1847 (WH/OG), Harness Side And DLC C251 Pin 6, Circuit 1847 (WH/OG), Harness Side
      G03958568Courtesy of FORD MOTOR CO.
    • Measure the resistance between the PCM C175 pin 16, circuit 1848 (PK/OG), harness side and the DLC C251 pin 14, circuit 1848 (PK/OG), harness side.

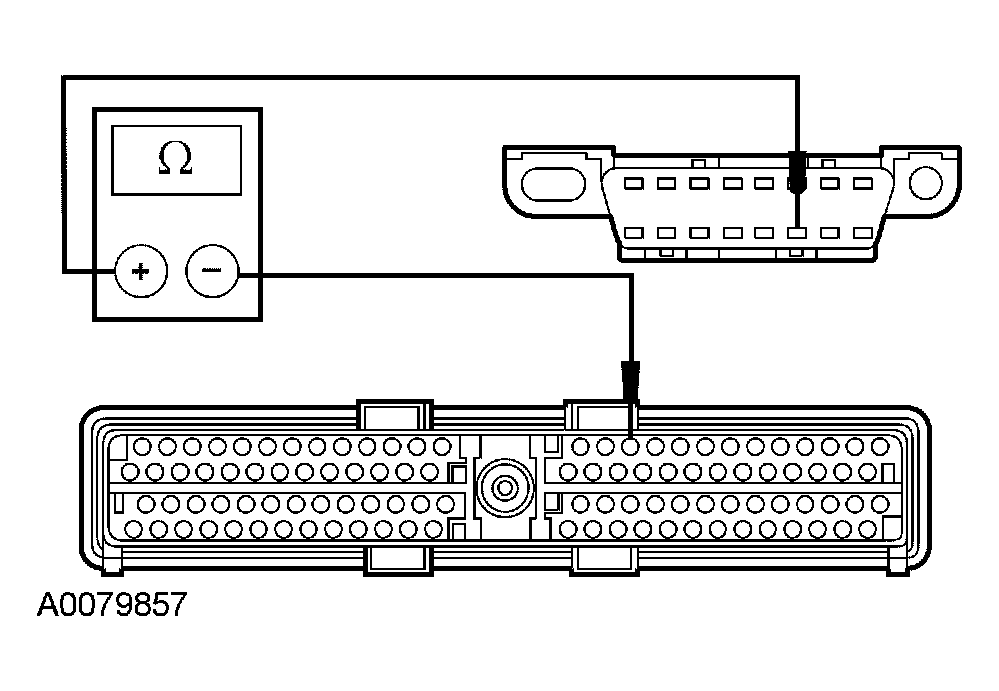

      Fig 2: Measuring Resistance Between PCM C175 Pin 16, Circuit 1848 (PK/OG), Harness Side And DLC C251 Pin 14, Circuit 1848 (PK/OG), Harness Side
      G03958569Courtesy of FORD MOTOR CO.
    • Are the resistances less than 5 ohms?
    • Yes  : GO to  D3.
    • No  : REPAIR the circuit in question. CLEAR the DTCs. REPEAT the self-test. CARRY OUT the diagnostic tool data link test.
  3. D3 CHECK FOR CORRECT PCM OPERATION
    • Disconnect all the PCM connectors.
    • Check for:
      • corrosion
      • pushed-out pins
    • Connect all the PCM module connectors and make sure they seat correctly.
    • Operate the system and verify the concern is still present.
    • Is the concern still present?
    • Yes  : INSTALL a new PCM. REFER to ELECTRONIC ENGINE CONTROLS . CLEAR the DTCs. REPEAT the self-test. CARRY OUT the diagnostic tool data link test.
    • No  : The system is operating correctly at this time. Concern may have been caused by a loose or corroded connector. CLEAR the DTCs. REPEAT the self-test. CARRY OUT the diagnostic tool data link test.
