Safety Belt Retractor - Rear, Outboard: Notes

NOTE: RH side shown, LH side similar.

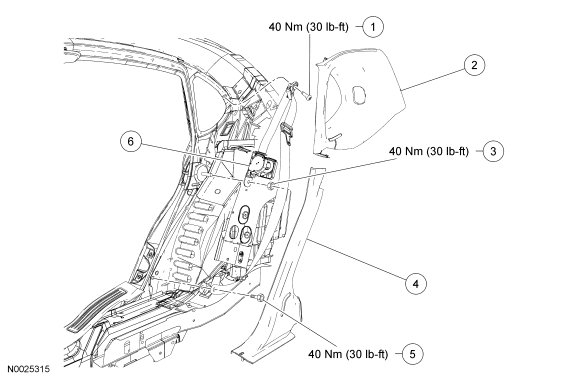

Fig 1: Rear, Outboard Safety Belt Retractor Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Bolt, D-ring (part of 611B68 RH/611B69 LH)
2	-	Upper quarter trim panel
3	N806773	Nut, safety belt and retractor
4	-	Lower quarter trim panel
5	389370	Bolt, safety belt and retractor anchor
6	611B68 RH/ 611B69 LH	Safety belt and retractor assembly
