Steering Gear: Notes

Special Tools

Illustration Tool Name Tool Number
GF0000940
Holding Fixture, Transmission 307-003 (T57L-500-B)
GF0003334
Installer, Constant Velocity Joint Boot Clamp 205-343 (T95P-3514-A)
Material

Item Specification
Premium Long-Life Grease
XG-1-C
ESA-M1C75-B

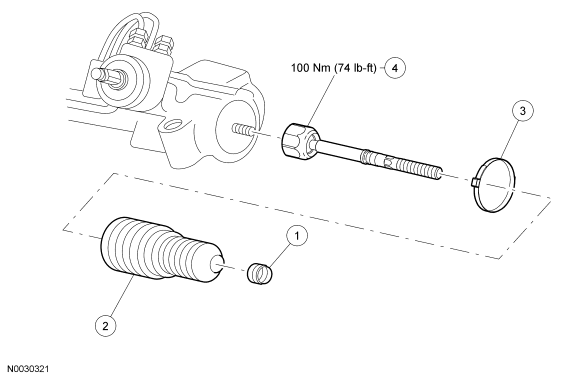

Fig 1: Exploded View Of Inner Tie Rod With Torque Specifications
GF0020623Courtesy of FORD MOTOR CO.
Item Part Number Description
1 3C650 Outer bellows boot clamp
2 3332 Inner tie-rod bellows boot
3 - Inner bellows boot clamp (part of 3332)
4 3280 Inner tie rod
