Hydraulic System: Accumulators
The hydraulic system has accumulators in circuits for 5 apply components. Each accumulator has a piston (with seal and spring) positioned on a hollow shaft.
The low-intermediate (N-D) accumulator is located in the bottom of the transaxle case.
The chain cover and side of the transaxle case contain 4 accumulators:
- Reverse (N-R)
- Intermediate (1-2)
- Direct (2-3)
- Overdrive (3-4)

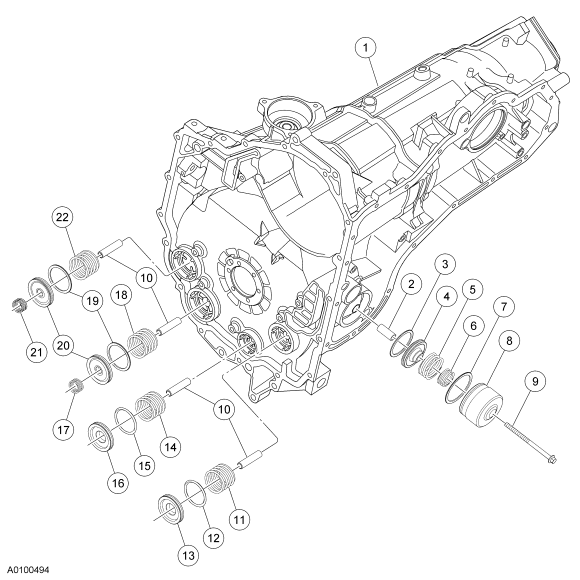

| Item | Part Number | Description |
|---|---|---|
| 1 | 7005 | Case assembly |
| 2 | 7H276 | Shaft - drive shift accumulator |
| 3 | 7G095 | Seal - 1-2, 2-3 and N-D shift accumulator piston |
| 4 | 7G274 | Piston - drive shift accumulator |
| 5 | 7G300 | Spring - drive shift accumulator |
| 6 | 7G301 | Spring - drive shift accumulator |
| 7 | 7H277 | Seal - drive shift accumulator cover |
| 8 | 7H275 | Cover - drive shift accumulator |
| 9 | N807757-S | Bolt - 6 mm x 1.0 hex flange head (1 required) |
| 10 | 7G094 | Shafts - shift accumulator |
| 11 | 7G266 | Spring - 3-4 shift accumulator (pink) |
| 12 | 7F248 | Seal - 3-4 accumulator piston |
| 13 | 7F246 | Piston - 3-4 shift accumulator |
| 14 | 7E485 | Spring - reverse shift accumulator (pink) |
| 15 | 7H274 | Seal - reverse shift accumulator |
| 16 | 7H273 | Piston - reverse shift accumulator |
| 17 | 7F284 | Spring - 2-3 shift accumulator assist |
| 18 | 7F285 | Spring - 2-3 shift accumulator (blue) |
| 19 | 7G095 | Seals - 1-2, 2-3 and N-D shift accumulator piston |
| 20 | 7G133 | Pistons - 1-2, 2-3 shift accumulator |
| 21 | 7F284 | Spring - 1-2 shift accumulator assist |
| 22 | 7G267 | Spring - 1-2 shift accumulator (blue) |
