Main Control

The hydraulic system has a main control assembly. The pump assembly, hydraulic control valves and electro-hydraulic actuators are located in the main control.

Gaskets are used for the separator plate between the pump body and valve body. The separator plate between the valve body and chain cover has integral gaskets.

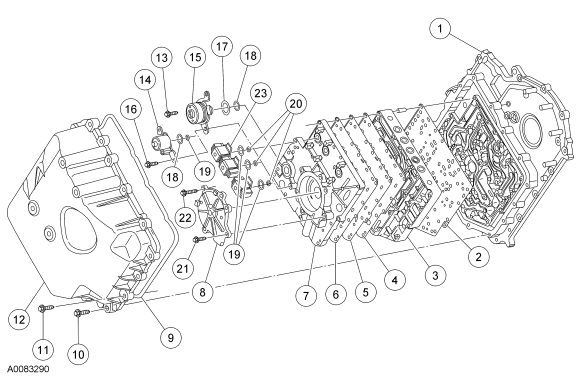

Fig 1: Main Control Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	7G188	Chain cover assembly
2	7Z490	Main control valve body separator plate (bonded)
3	7A100	Main control valve body
4	7A136	Pump assembly valve body gasket
5	7A142	Pump body separator plate
6	7G331	Pump body separator plate
7	7A104	Pump body, bearing and seal assembly
8	7G187	Pump cover and sleeve assembly
9	7F396	Main control cover gasket (reusable)
10	N605893-S1427	Bolt - M6-1.0 x 27.5 hex flange pilot (4 required)
11	N605908-S437	Bolt - M8-1.25 x 38 hex flange pilot (11 required)
12	7G004	Main control cover
13	N803727-S	Bolt - M6-1.0 x 30 hex head (3 required)
14	7G136	Torque converter clutch (TCC) solenoid valve
15	7G383	Pressure control solenoid valve
16	N605772-S	Bolt - M6-1.0 x 16 large hex flange head (2 required)
17	7Z144	Inner O-ring seal 25.12 x 1.78 (large)
18	7Z144	Outer O-ring seals 12.42 x 1.78 (small)
19	7Z484	Inner O-ring seals 15.6 x 1.78 (large)
20	7Z484	Outer O-ring seals 6.07 x 1.78 (small)
21	N605892-S21	Bolt - M6-1.0 x 22.5 hex head (2 required)
22	N807073-S1100	Bolt - M6-1.0 x 88.5 hex head (4 required)
23	7G484	Shift solenoid (3 required)

Fig 2: Exploded View Of Main Control Valve Body Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	7G295	Retainer
2	7C389	Manual control valve
3	7F423	Capacity modulator spring
4	7E477	2-3 capacity modulator valve
5	7F187	Valve retainer plug
6	7G007	Valve plug retainer
7	7E477	2-3 capacity modulator valve
8	7F423	Capacity modulator spring
9	7F187	Valve retainer plug
10	7G007	Valve plug retainer
11	7G182	1-2 shift valve
12	7H147	1-2 shift spring
13	7F187	Valve retainer plug
14	7G007	Valve plug retainer
15	7D053	2-3 shift valve
16	7A320	2-3 shift spring
17	7F187	Valve retaining plug
18	7G007	Valve plug retainer
19	7F259	3-4 shift valve
20	7H147	3-4 shift spring
21	7F194	Retainer plate
22	7F382	Manual downshift modulator spring
23	7D225	Manual downshift modulator valve
24	7F187	Valve retaining plug
25	7G007	Valve plug retainer
26	7D059	3-2 shift timing valve
27	7F414	3-2 shift timing spring
28	7F194	Retainer plate
29	7H146	Forward clutch control valve
30	7H147	Forward clutch control spring
31	7F194	Retainer plate
32	7G473	Solenoid regulator valve
33	7G411	Solenoid regulator spring
34	7L215	Plug valve
35	7G307	Converter regulator valve
36	7G316	Converter regulator spring - outer
37	7F194	Spring retainer plate
38	7G314	Pressure spring
39	7G408	Pressure valve
40	7F187	Plug
41	7G007	Spring retainer plate
42	7C388	Main regulator valve
43	7A478	Spring retainer
44	7G364	Isolator spring
45	7A270	Main regulator spring
46	7C020	Main regulator boost valve
47	7G183	Main regulator boost sleeve
48	7F445	Retainer
49	7G179	Bypass clutch control valve
50	7G320	Bypass clutch control plunger
51	7H140	Bypass clutch control spring
52	7G319	Bypass clutch control sleeve
53	7G007	Retainer
54	7G408	Line pressure modulator valve
55	7G314	Line modulator spring
56	7F187	Line modulator valve plunger
57	7G007	Retainer
58	N807739-S	Coil pin (2 required)
59	7G310	Modulator check springs
60	7D453	Cap modulator check valves (2 required)
61	7E195	Check ball (5 required)
62	7G308	Filters
63	N807737-S	Screws (used to hold bonded gasket) (3 required)
64	7G318	Valve body sleeve
65	7E217	Transmission manual low relief valve
66	7N155	Cooler bypass spring
67	7A099	Main control valve body
