Direct Clutch Cylinder: Notes
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Remover, O-Ring Seal | 100-010 (T71P-19703-C) | |
| Dial Indicator Gauge With Holding Fixture | 100-D002 (D78P-4201-B) | |
| Compressor, Clutch Spring | 307-015 (T65L-77515-A) | |
| Protector, Piston Seal | 307-168 (T86P-70234-A) |

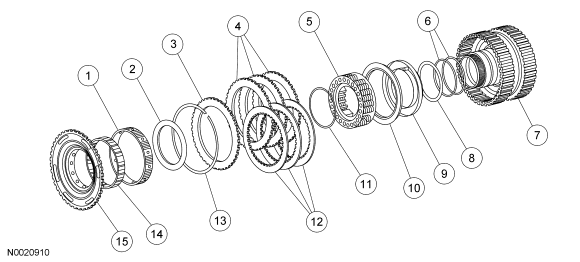

| Item | Part Number | Description |
|---|---|---|
| 1 | 7D171 | Direct one-way clutch outer race assembly |
| 2 | 7F369 | No. 7 thrust washer |
| 3 | 7B066 | Pressure plate |
| 4 | 7B442 | Steel plates |
| 5 | 7F235 | Return spring assembly |
| 6 | 7G102 | O-rings (2 required) |
| 7 | 7G120 | Clutch cylinder |
| 8 | 7F225 | Inner piston seal |
| 9 | 7A262 | Piston and seal assembly |
| 10 | 7G448 | Apply ring |
| 11 | N803176-S | Return spring retaining ring |
| 12 | 7B164 | Friction plates |
| 13 | 7D483 | Direct clutch retaining ring |
| 14 | 7A089 | Direct one-way clutch assembly |
| 15 | 7G156 | Direct one-way clutch inner race and bushing assembly |
