Forward Clutch Cylinder: Notes
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Feeler Gauge Set | 303-D027 (D81L-4201-A) or equivalent | |
| Compressor, Clutch Spring | 307-015 (T65L-77515-A) | |
| Protector, Piston Seal | 307-175 (T86P-70548-A) |

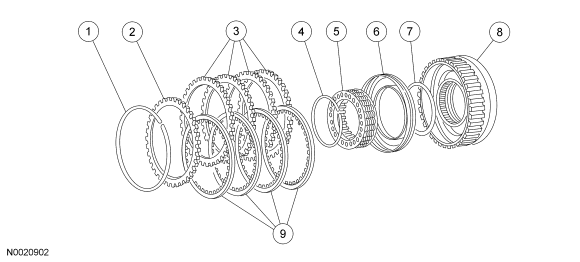

| Item | Part Number | Description |
|---|---|---|
| 1 | 7G367 | Retainer ring |
| 2 | 7B066 | Forward clutch pressure plate |
| 3 | 7E314 | Forward clutch plates (steel) |
| 4 | N803053-S | Retaining ring |
| 5 | 7G299 | Forward clutch support and spring assembly |
| 6 | 7L140 | Forward clutch piston and seal assembly |
| 7 | 7G242 | Forward clutch inner seal |
| 8 | 7H011 | Forward clutch cylinder and valve assembly |
| 9 | 7E311 | Forward clutch plates (friction) |
