Reverse Clutch: Disassembly

  1. Remove the reverse clutch pack assembly.
    1. Remove the reverse clutch pressure plate retaining snap ring.
    2. Remove the reverse clutch pressure plate.
    3. Remove the clutch pack.
    4. Remove the wave spring.

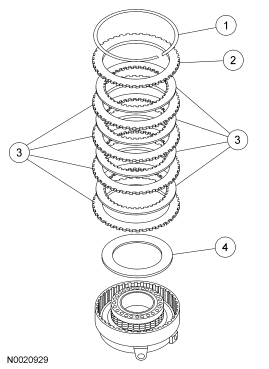

    2. Fig 1: Identifying Reverse Clutch Pack Assembly
    GF0020357Courtesy of FORD MOTOR CO.
    CAUTION: Do not fully compress the spring retainer.
  2. Using the special tool, remove the snap ring.
    3. Fig 2: Removing Snap Ring Using Special Tool (307-015)
    GF0020358Courtesy of FORD MOTOR CO.
  3. Remove the reverse clutch support and spring.
    4. Fig 3: Reverse Clutch Support & Spring
    GF0020359Courtesy of FORD MOTOR CO.
  4. Remove the reverse clutch piston.
    5. Fig 4: Reverse Clutch Piston
    GF0020360Courtesy of FORD MOTOR CO.
  5. Remove the reverse clutch piston outer seal.
    6. Fig 5: Reverse Clutch Piston Outer Seal
    GF0020361Courtesy of FORD MOTOR CO.
  6. Remove the reverse clutch piston inner seal.
    7. Fig 6: Reverse Clutch Piston Inner Seal
    GF0020362Courtesy of FORD MOTOR CO.
