Differential Seals: Notes

Special Tools

Illustration Tool Name Tool Number
GF0020135
 Step Plate Adapter 205-D014 (D80L-630-3) or equivalent
GF0000247
 Remover, Crankshaft Front Oil Seal 303-107 (T74P-6700-A)
GF0020136
 Installer, Front Cover Oil Seal 303-335 (T88T-6701-A)
GF0020137
 Installer, Halfshaft Output Fluid Seal 307-157 (T86P-1177-B)
GF0020138
 Aligner, Output Shaft Fluid Seal 307-317 (T94P-77001-JH)

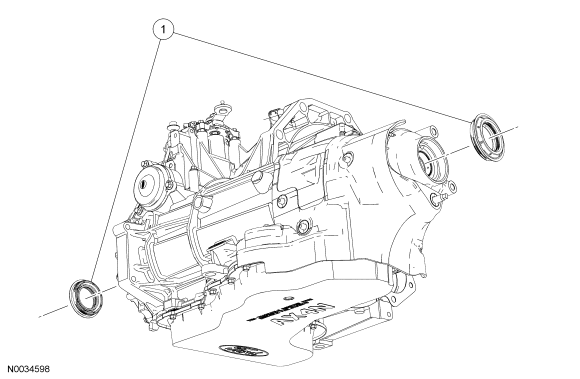

Fig 1: Exploded View Of Differential Seals
GF0020139Courtesy of FORD MOTOR CO.
Item Part Number Description
1 1177 Seal assembly - differential (2 required)
