Digital Transmission Range (TR) Sensor: Notes

Special Tools

Illustration Tool Name Tool Number
GF0000909
 Alignment Gauge, TR Sensor 307-351 (T97L-70010-A)

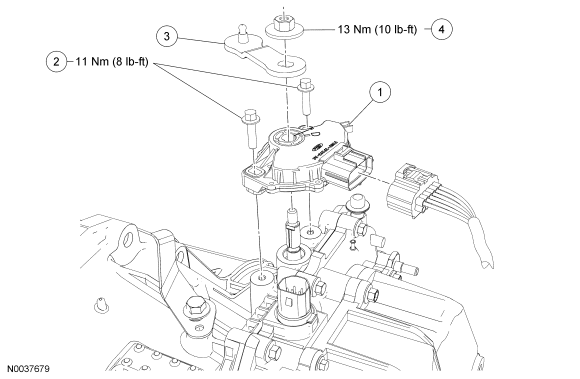

Fig 1: Exploded View Of Digital Transmission Range TR Sensor With Torque Specifications
GF0020148Courtesy of FORD MOTOR CO.
Item Part Number Description
1 7F293 Transmission range (TR) sensor
2 N605775-S103 TR sensor bolts (2 required)
3 7G354 Manual lever
4 N621941-S441 Manual lever nut
