Output Shaft Speed (OSS) Sensor: Notes

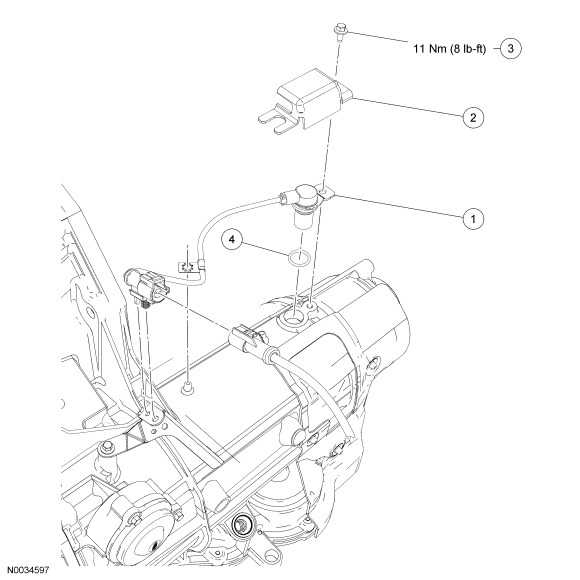

Fig 1: Exploded View Of Output Shaft Speed OSS Sensor With Torque Specifications
GF0020130Courtesy of FORD MOTOR CO.
Item Part Number Description
1 7H103 Transmission output shaft speed (OSS) sensor
2 7A434 Heat shield
3 N605890-S36 OSS bolt
4 7J148 O-ring seal
