Electrical Component Locator: Grounds
GROUNDS LOCATION
| Component | Location |
|---|---|
| G100 | Left side of engine compartment. See Figure. |

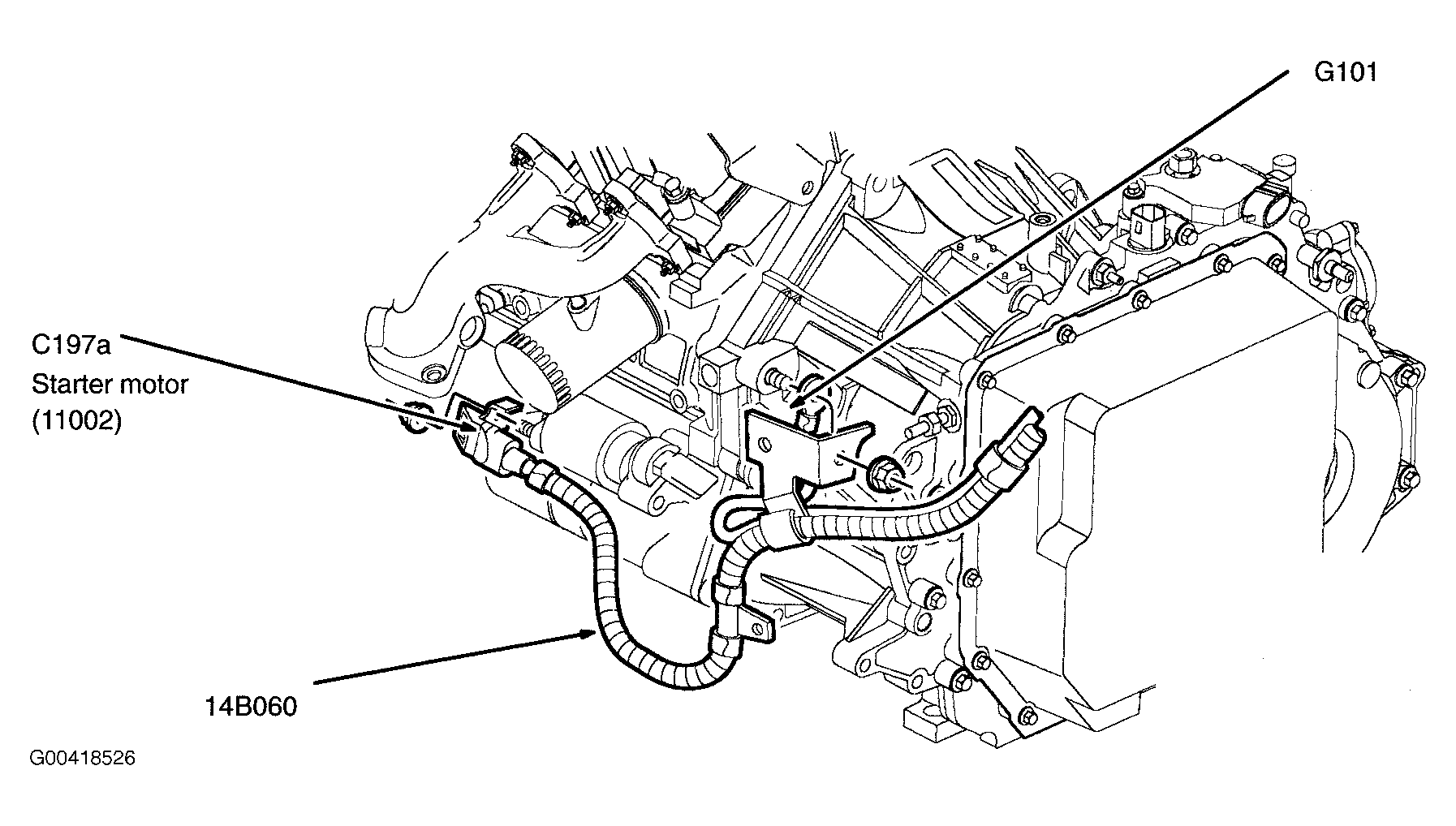

| G101 | Left side of engine, above starter motor. See Figure. |
| G102 | Right rear of engine compartment. See Figure. |
| G103 | Right rear side of engine compartment. See Figure. |
| G103 | Right rear side of engine compartment. See Figure. |
| G104 | Right front side of engine compartment. See Figure. |
| G105 | Right front side of engine compartment. See Figure. |

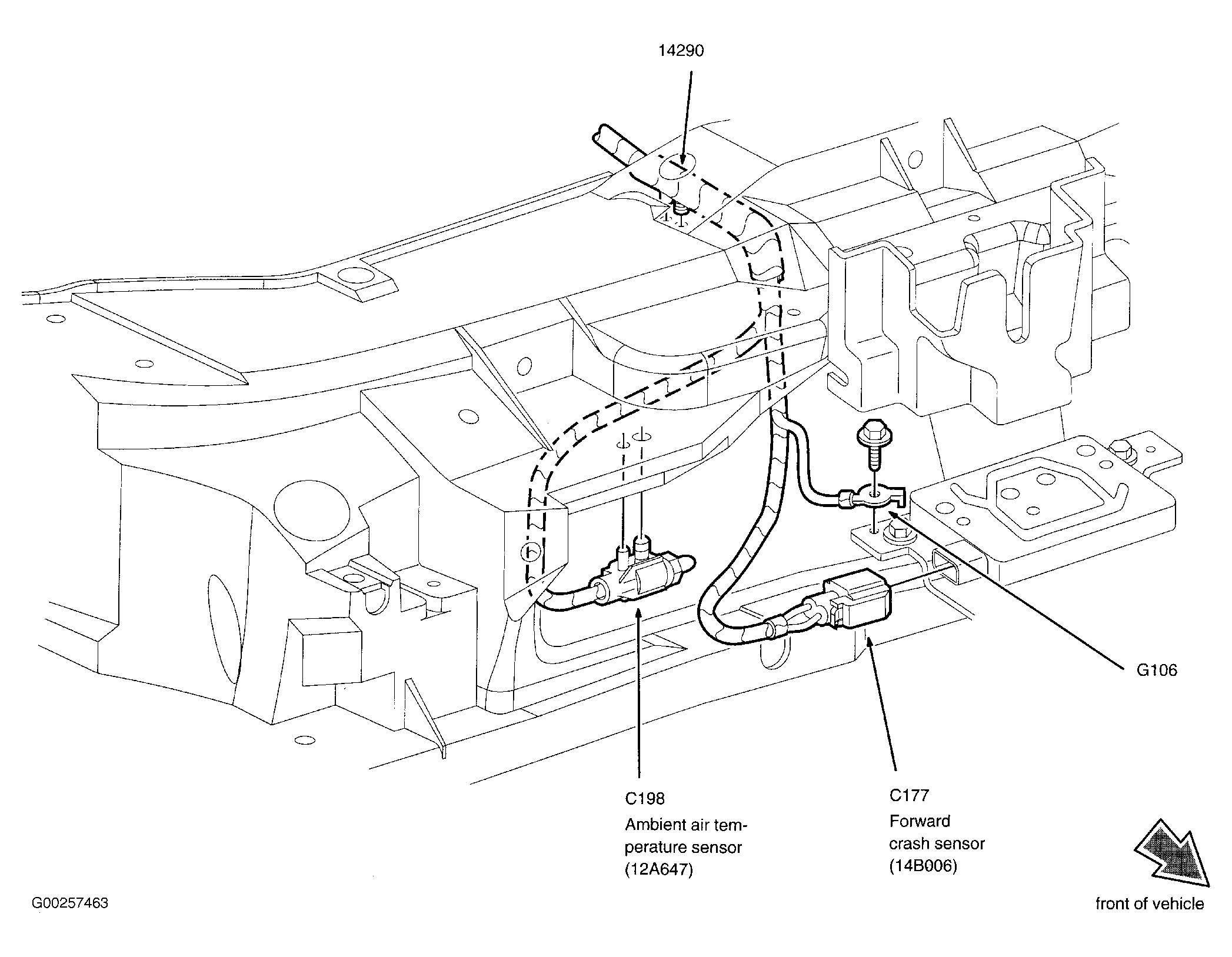

| G106 | Behind right side of front bumper, near forward crash sensor. See Figure. |
| G107 | Top left side of engine compartment. See Figure. |
| G108 | Top left side of engine compartment. See Figure. |
| G200 | Behind center of dash. See Figure. |
| G201 | Behind center of dash. See Figure. |
| G202 | At base of left "A" pillar. See Figure. |
| G203 | At base of left "A" pillar. See Figure. |
| G204 | At base of right "A" pillar. See Figure. |
| G205 | At base of right "A" pillar. See Figure. |
| G300 | Left side of luggage compartment, behind lining. See Figure. |
| G301 | Left side of luggage compartment, behind lining. See Figure. |
| G302 | Right side of luggage compartment, behind lining. See Figure. |
| G303 | Right side of luggage compartment, behind lining. See Figure. |
