Electrical Component Locator: Miscellaneous
MISCELLANEOUS LOCATION
| Component | Location |
|---|---|
| Air Bag Sliding Contact | Near bottom of steering column. See Figure. |
| AX4S/4F50N Transmission | Left rear of engine. See Figure. |
| Battery | Left front corner of engine compartment. See Figure. |
| Blower Motor Resistor Assembly | In dash, below center of glove box. See Figure. |
| Data Link Connector (DLC) | Mounted on dash, below steering column. See Figure. |
| Electronic Compass | On rearview mirror. See Figure. |
| Engine Cooling Fan Resistor | Near electric cooling fans. See Figure. |
| Generator | Right rear of engine compartment. See Figure. |
| Heated Positive Crankcase Ventilation (PCV) Valve | Top right side of engine. See Figure. |

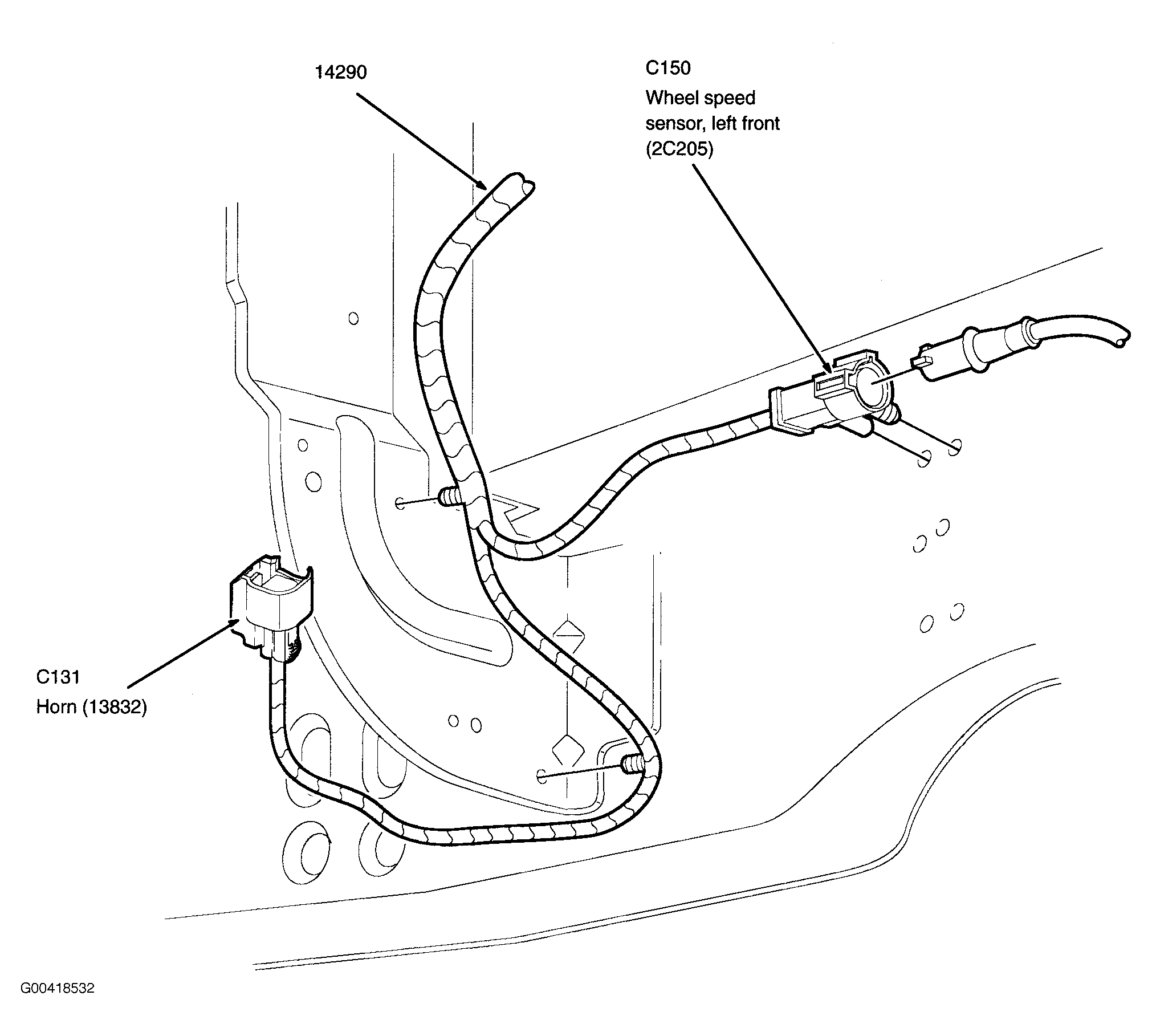

| Horn | Lower left front of engine compartment. See Figure. |
| Ignition Transformer Capacitor 1 | Attached to ignition coil. See Figure. |

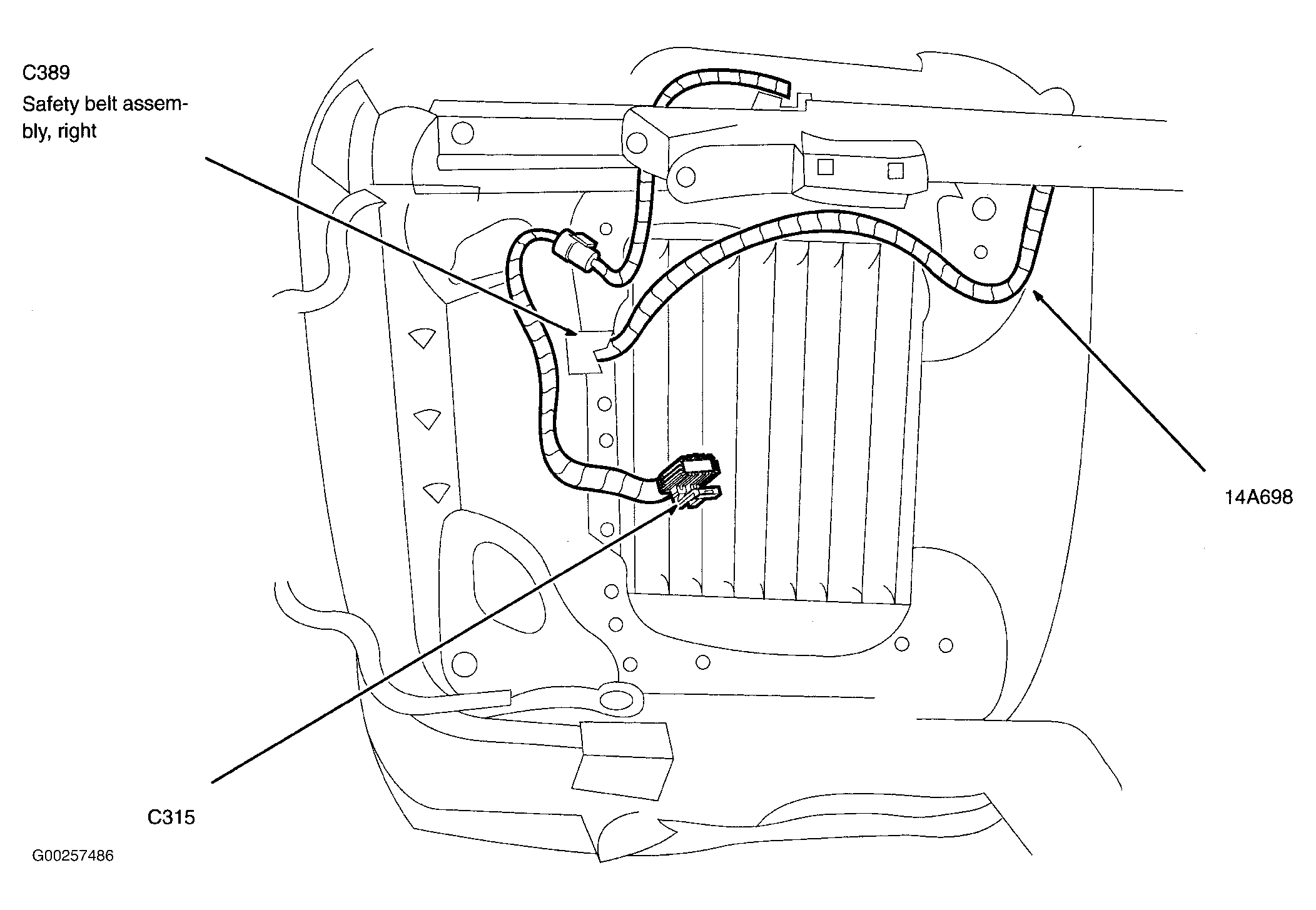

| Right Safety Belt Assembly | Under passenger seat. See Figure. |
