Exhaust System - Exploded View

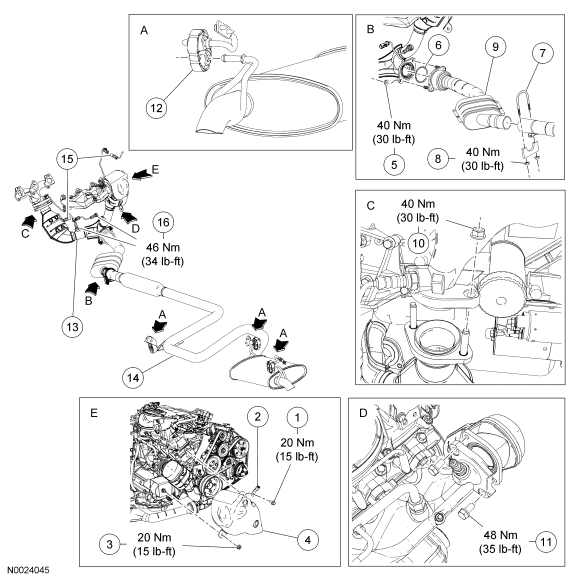

Fig 1: Exploded View Of Exhaust System With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	N605779	Heat shield bolt
2	14463	Ground strap
3	W520103	Heat shield nut
4	5K282	Heat shield
5	-	Catalytic converter-to-exhaust converter Y-pipe nut (2 required)
6	5F263	Exhaust gasket
7	5A231	Muffler clamp
8	-	Muffler clamp nut (2 required)
9	5E212	Catalytic converter
10	N804178	Exhaust Y-pipe-to-exhaust manifold nut (2 required)
11	N802096	Exhaust Y-pipe-to-exhaust manifold bolt (2 required)
12	5F262	Exhaust hanger isolator (3 required)
13	5F250	Exhaust Y-pipe
14	5C258	Muffler and tailpipe
15	14A464	Catalyst monitor sensor electrical connector (2 required)
16	9F472	Catalyst monitor sensor (2 required)
