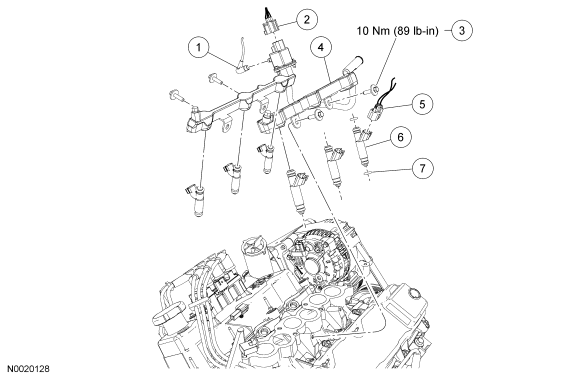

Fuel Rail and Fuel Injector - Exploded View
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Vacuum tube (part of 9E498) |
| 2 | 14A464 | Fuel rail pressure sensor electrical connector (part of 12B637) |
| 3 | N808779 | Fuel rail bolt (4 required) |
| 4 | 9F792 | Fuel rail |
| 5 | 14A464 | Fuel injector electrical connector (6 required) (part of 12B637) |
| 6 | 9F593 | Fuel injector (6 required) |
| 7 | - | Fuel O-ring seals (12 required) |
- For additional information, refer to the following procedures.
