Camshaft Synchronizer: Notes

Special Tools

Illustration	Tool Name	Tool Number
	Synchronizer Alignment Gauge	303-589

Material

Item	Specification
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent	WSS-M2C930-A

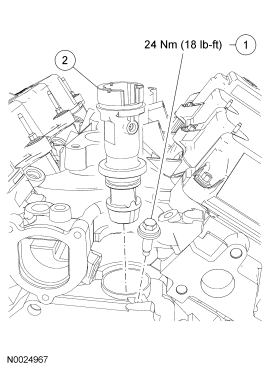

Fig 1: Exploded View Of Camshaft Synchronizer With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	12A309	Camshaft synchronizer bolt
2	12131	Camshaft synchronizer
