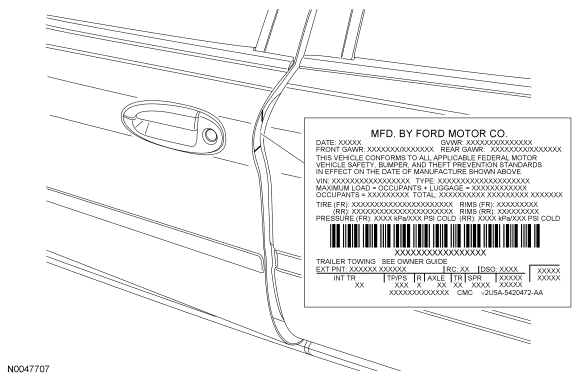

Vehicle Certification (VC) Label: Notes
The vehicle certification (VC) label contains the manufacturer name, the month and year of manufacture, the certification statement and the VIN. It also includes gross vehicle weight ratings (GVWR).
| Item | Description |
|---|---|
| 1 | Exterior paint code |
| 2 | Region code |
| 3 | Domestic special order code |
| 4 | Interior trim code |
| 5 | Tape/paint pinstripe code |
| 6 | Radio code |
| 7 | Axle code |
| 8 | Transmission code |
| 9 | Spring code |
| 10 | Powertrain calibration information |
Paint codes are listed as a 2-part code. The first set of characters listed indicate the vehicle primary body color. The second set of characters listed (if applicable) indicate a 2-tone or accent body color. All colors are base coat/clear coat.
- AQ - Arizona Beige
- C2 - Gold Ash Metallic
- DV - Light Tundra/Titanium Green
- FX - Merlot
- P3 - Windveil Blue
- T8 - Tungsten Metallic
- TS - Silver Frost
- UA - Ebony
- WT - Performance White
Interior trim codes are listed as a 2-part code. The first character listed indicates the seat and fabric style. The second character listed indicates the interior trim color.
Trim Code
- K - Fairfax/Kent cloth
- L - Imola leather
- N - Split hide leather
Interior Trim Color Code
- 2 - Medium Graphite
- H - Medium Parchment
- W - Midnight Black
Tape and paint pinstripe codes do not apply.
- 5 - Electronic premium AM/FM stereo with compact disc (CD) player
- H - Electronic AM/FM stereo with cassette
The following lists the axle ratio.
- 6R - 3.96
- N - 4-speed automatic overdrive AF50N
Spring codes are listed as a 2-part code. The first set of characters identify the front springs. The second set of characters identify the rear springs.
Front Springs
- FF - 4F13-5310-AA
- GG - 4F13-5310-BA
- HH - 4F13-5310-CA
- JJ - 4F13-5310-DB
Rear Springs
- KK - 4F13-5560-AA
- LL - 4F13-5560-BA
- MM - 4F13-5560-CA
- NN - 4F13-5560-DA
- PP - 4F13-5560-EA
- SS - 4F13-5560-FA
- TT - 4F13-5560-GA
