Power Steering Fluid Cooler: Notes

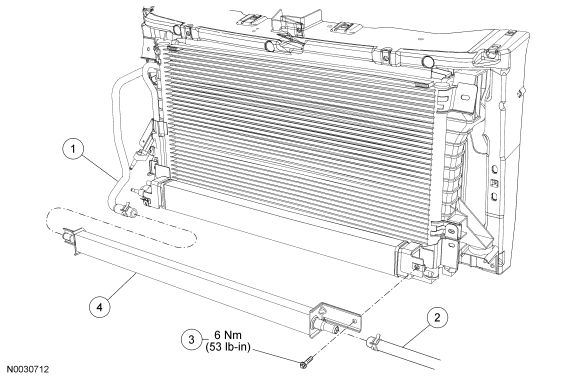

Fig 1: Exploded View Of Power Steering Fluid Cooler With Torque Specifications
GF0020621Courtesy of FORD MOTOR CO.
Item Part Number Description
1 3A713 Steering gear-to-power steering fluid cooler hose.
2 3493 Power steering fluid cooler to power steering pump hose.
3 N606676 Power steering gear cooler bolt (2 required).
4 3D746 Power steering gear cooler.
