Steering Wheel: Notes

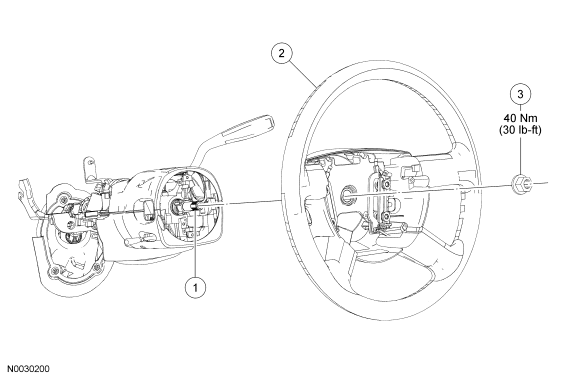

Fig 1: Exploded View Of Steering Wheel With Torque Specifications
GF0020633Courtesy of FORD MOTOR CO.
Item Part Number Description
1 3524 Shaft assembly
2 3600 Steering wheel
3 - Nut
