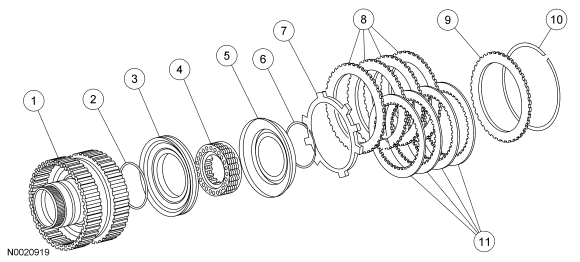

| 1 |
7G121 |
Direct and intermediate clutch cylinder |
| 2 |
7G240 |
Intermediate clutch piston inner seal |
| 3 |
7E005 |
Intermediate clutch piston and seal assembly |
| 4 |
7G297 |
Intermediate clutch support and spring |
| 5 |
7H185 |
Intermediate clutch return piston and seal assembly |
| 6 |
N803175-S |
Retaining ring |
| 7 |
7G159 |
Wave spring |
| 8 |
7B164 |
Intermediate clutch plates-internally splined (steel) (quantity of clutch plates are model dependent) |
| 9 |
7B455 |
Intermediate clutch pressure plate |
| 10 |
7G367 |
Intermediate clutch pressure plate retainer snap ring |
| 11 |
7E314 |
Intermediate clutch plates-externally splined (friction) (quantity of clutch plates are model dependent) |
