Wiper and Washer Systems

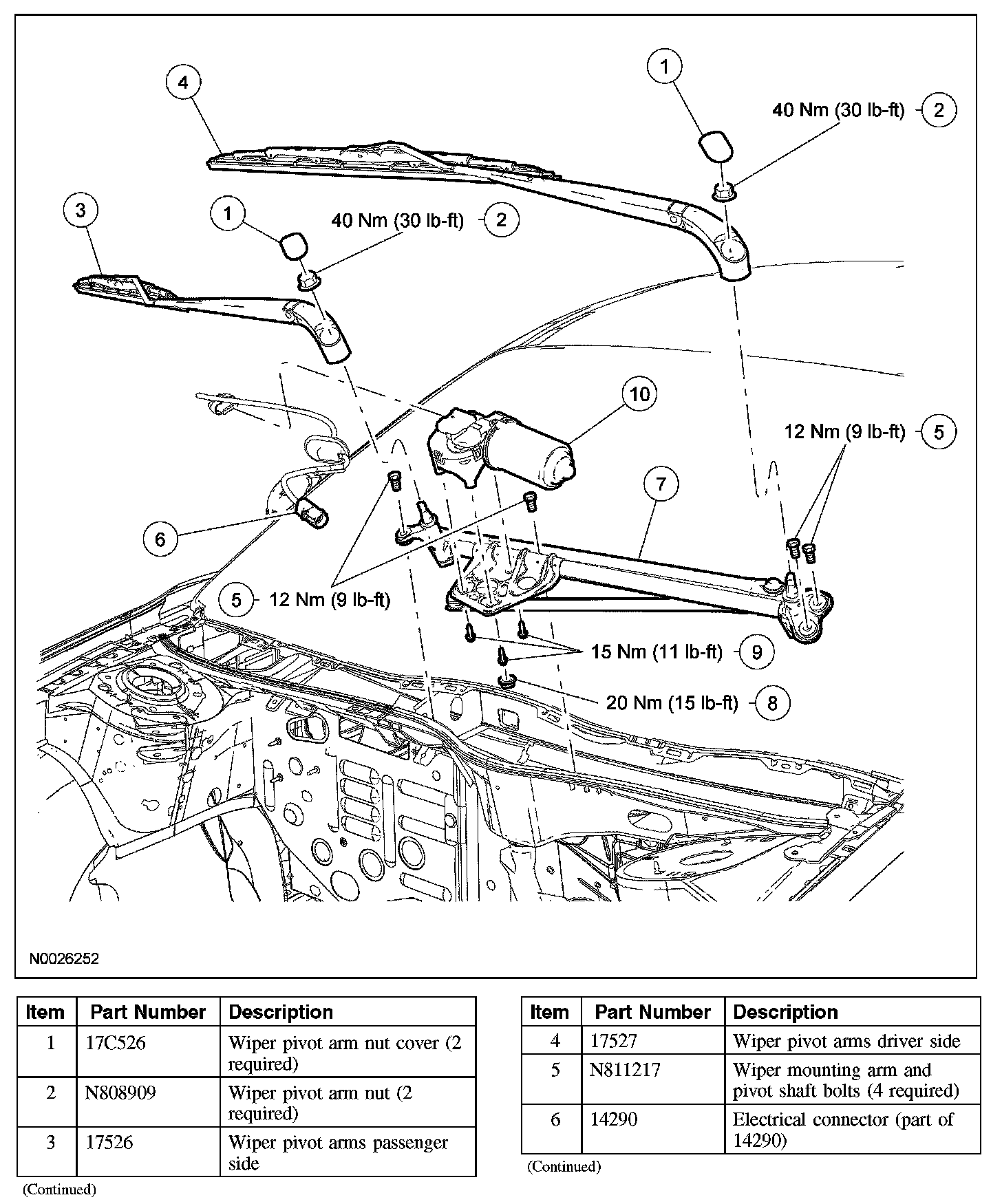

WIPER AND WASHER SYSTEM - EXPLODED VIEW


Part 1:






Part 2:






Removal and Installation
1. For additional information, refer to the procedures.
