Climate Control Assembly
CLIMATE CONTROL ASSEMBLYRadio Removing Tool:

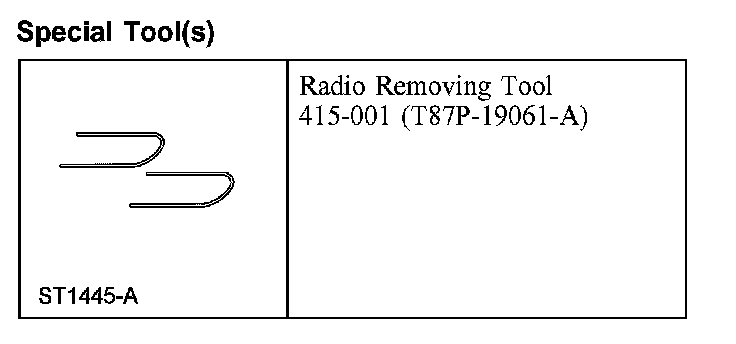

Special Tool(s)
Removal and Installation
All vehicles

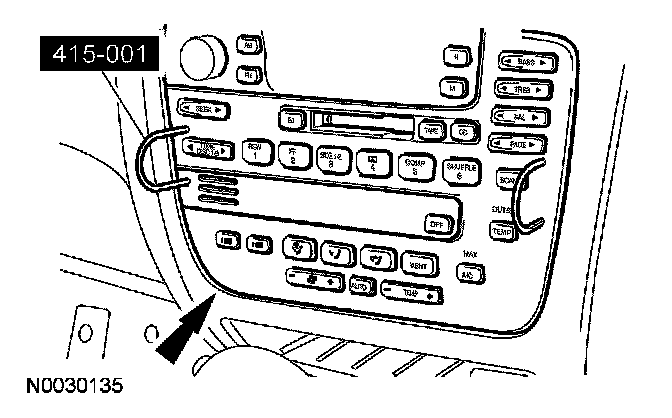

1. Using the special tool, pull out the integrated control panel.

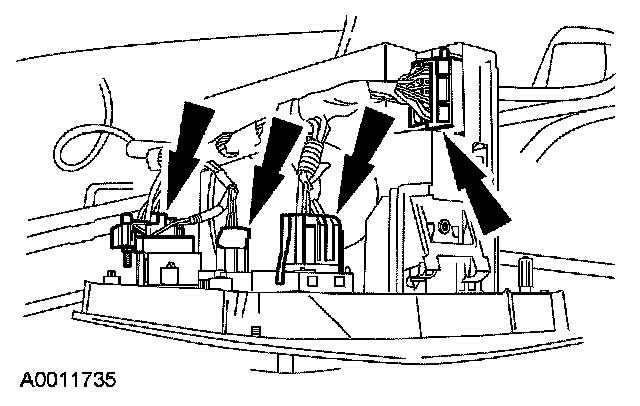

Vehicles with manual climate control
2. Disconnect the electrical connectors and remove the integrated control panel.

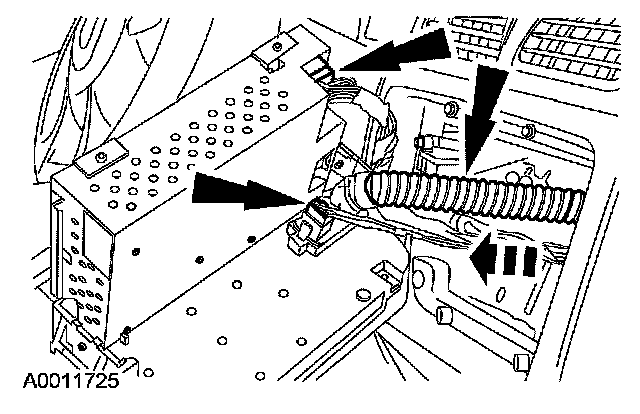

Vehicles with electronic automatic temperature control (EATC)
3. Disconnect the electrical connectors and in-vehicle temperature sensor hose and remove the integrated control panel.
All vehicles
4. To install, reverse the removal procedure.
