Function Selector Switch



FUNCTION SELECTOR SWITCH

Removal and Installation
1. Remove the integrated control panel. Climate Control Assembly
2. Remove the function selector knob.

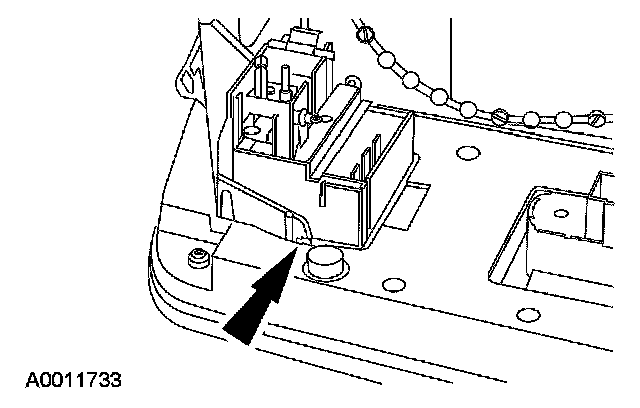

3. Disengage the retaining tabs and remove the function selector switch.
4. To install, reverse the removal procedure.
