Temperature Control Switch



TEMPERATURE CONTROL SWITCH

Removal and Installation
1. Remove the integrated control panel. Climate Control Assembly
2. Remove the temperature control knob.

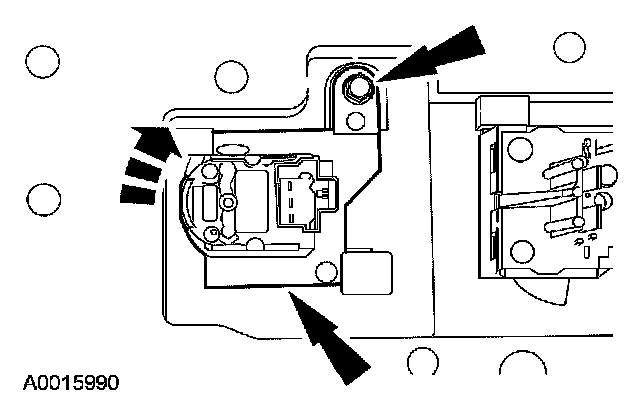

3. Remove the screw and rotate the temperature control switch clockwise to remove.
4. To install, reverse the removal procedure.
