Control Module HVAC: Service and Repair

CLIMATE CONTROL MODULE - REMOTE

Removal and Installation

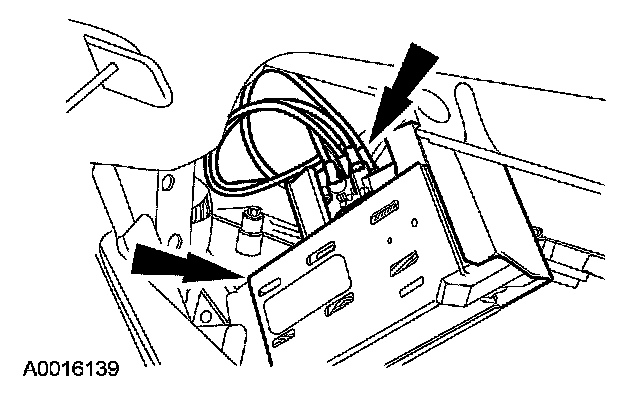

1. Remove the integrated control panel. Climate Control Assembly

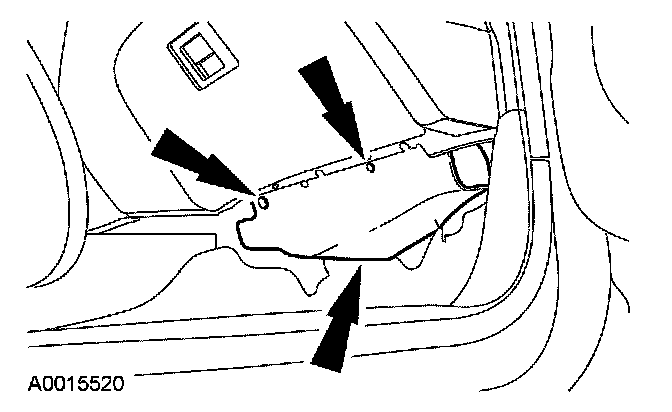

2. Remove the RH lower instrument panel insulator.
3. Lower the glove compartment.

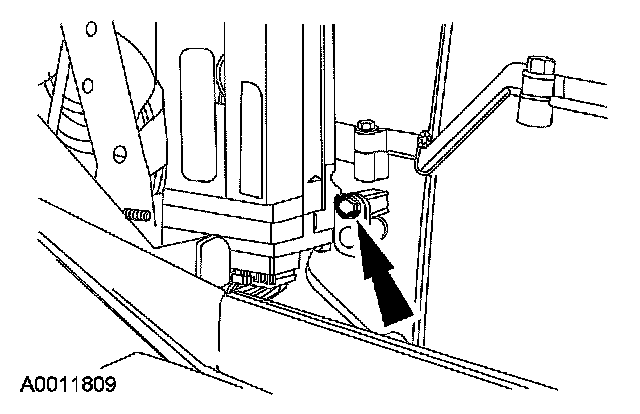

4. Remove the 2 remote climate control module screws.

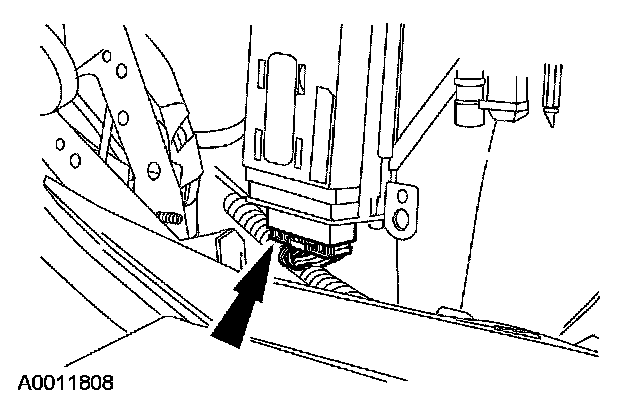

5. Disconnect the remote climate control module electrical connector.







6. Remove the 2 nuts and disconnect the plenum vacuum harness.
7. Remove the remote climate control module.
8. To install, reverse the removal procedure.
