Test A: The Powertrain Control Module (PCM) Does Not Respond To The Scan Tool

PINPOINT TEST A: THE POWERTRAIN CONTROL MODULE (PCM) DOES NOT RESPOND TO THE SCAN TOOL

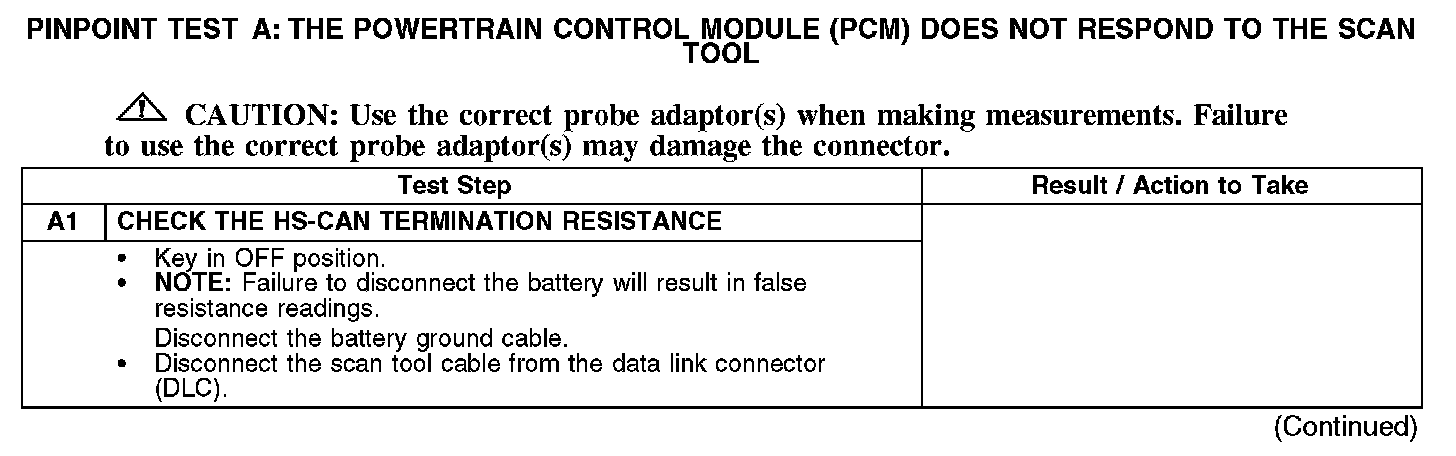

A1:

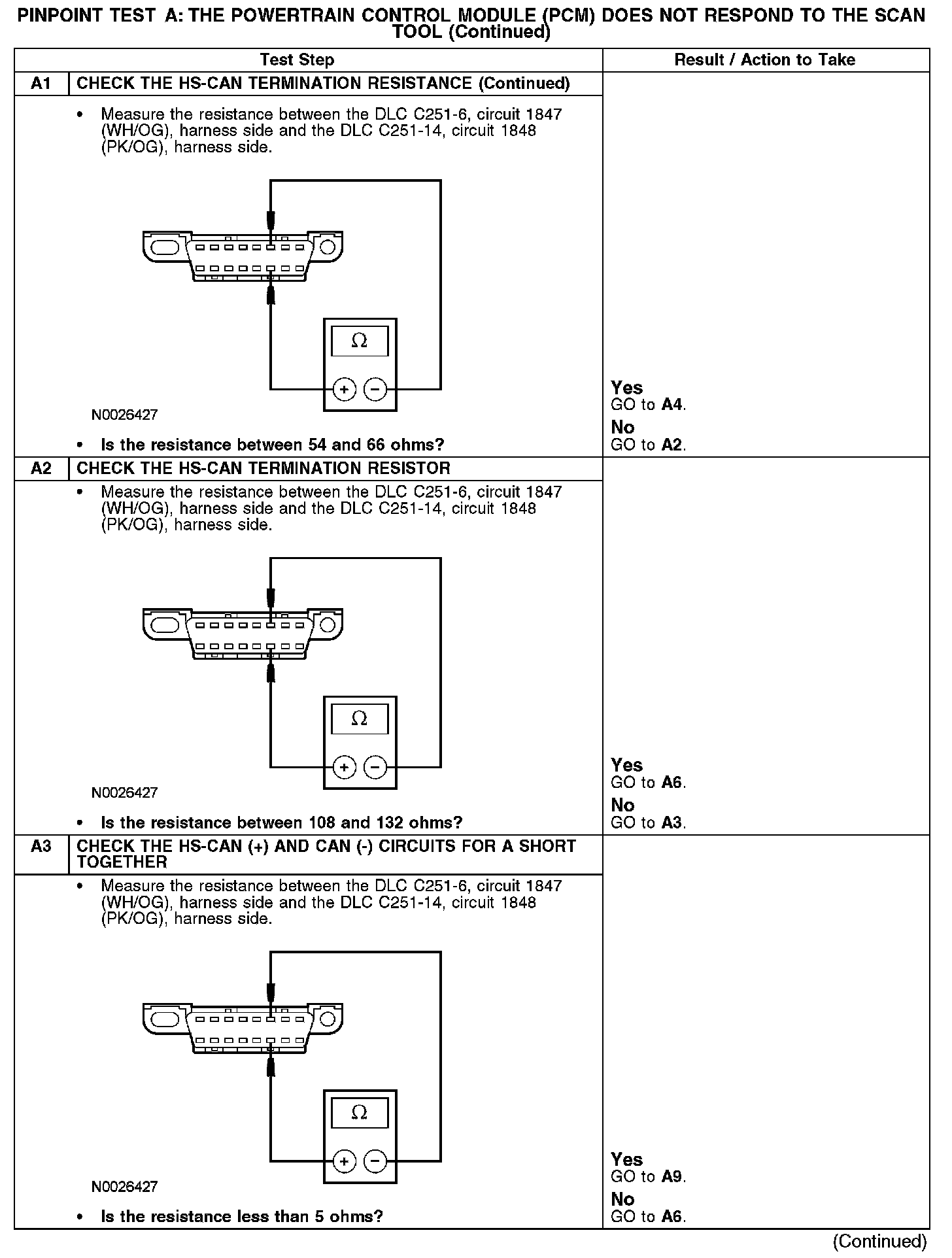

A1-A3:

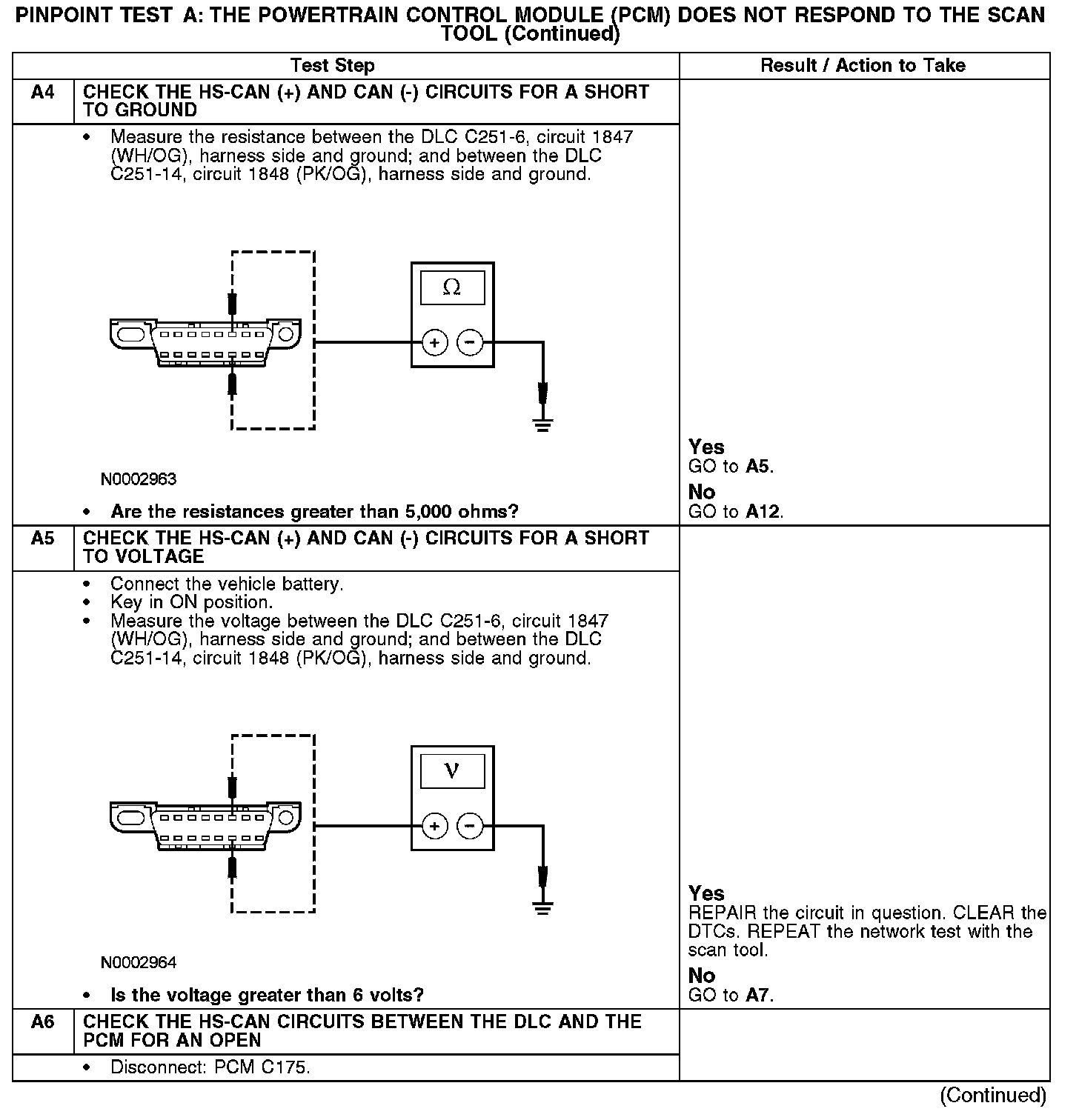

A4-A6:

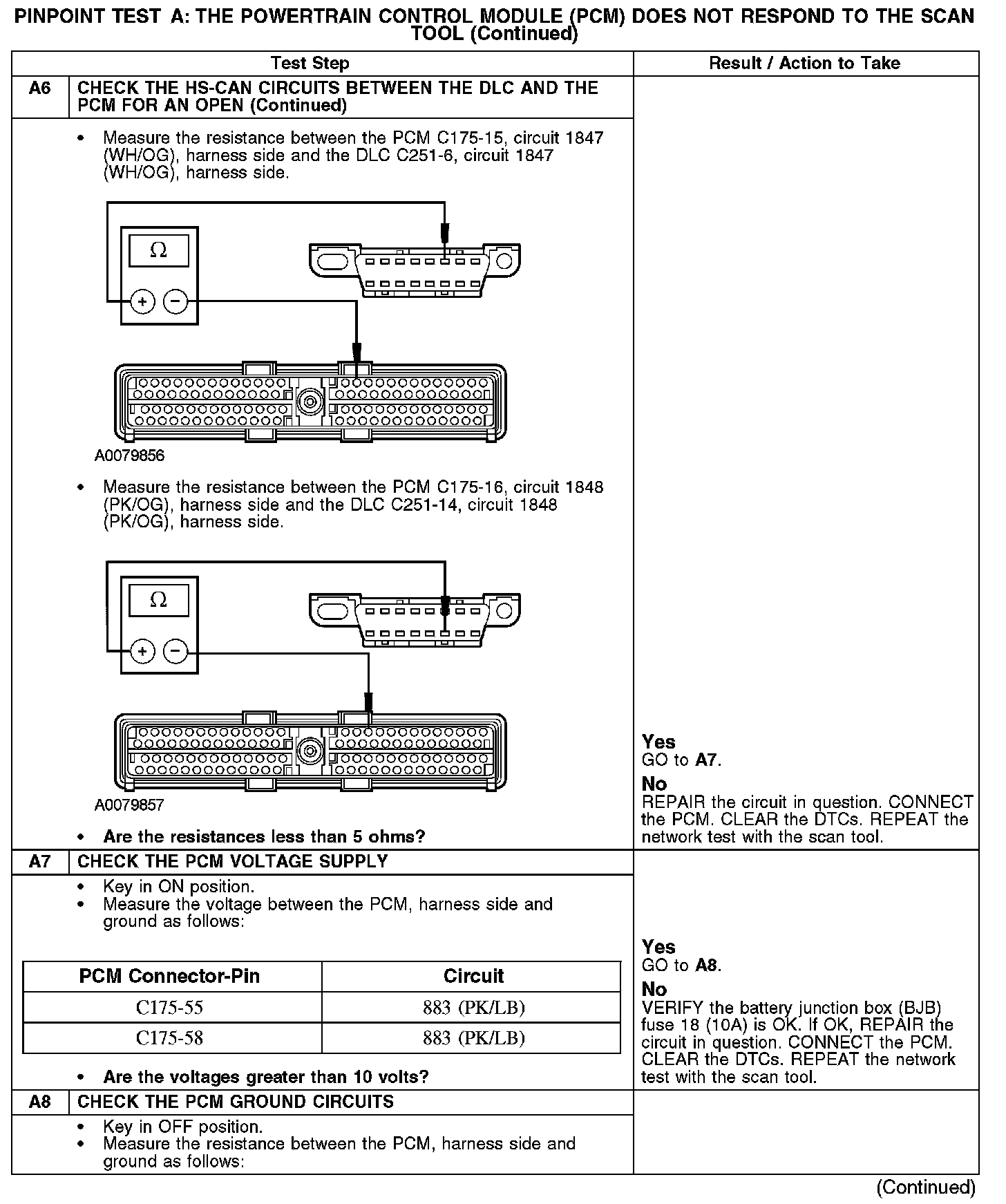

A6-A8:

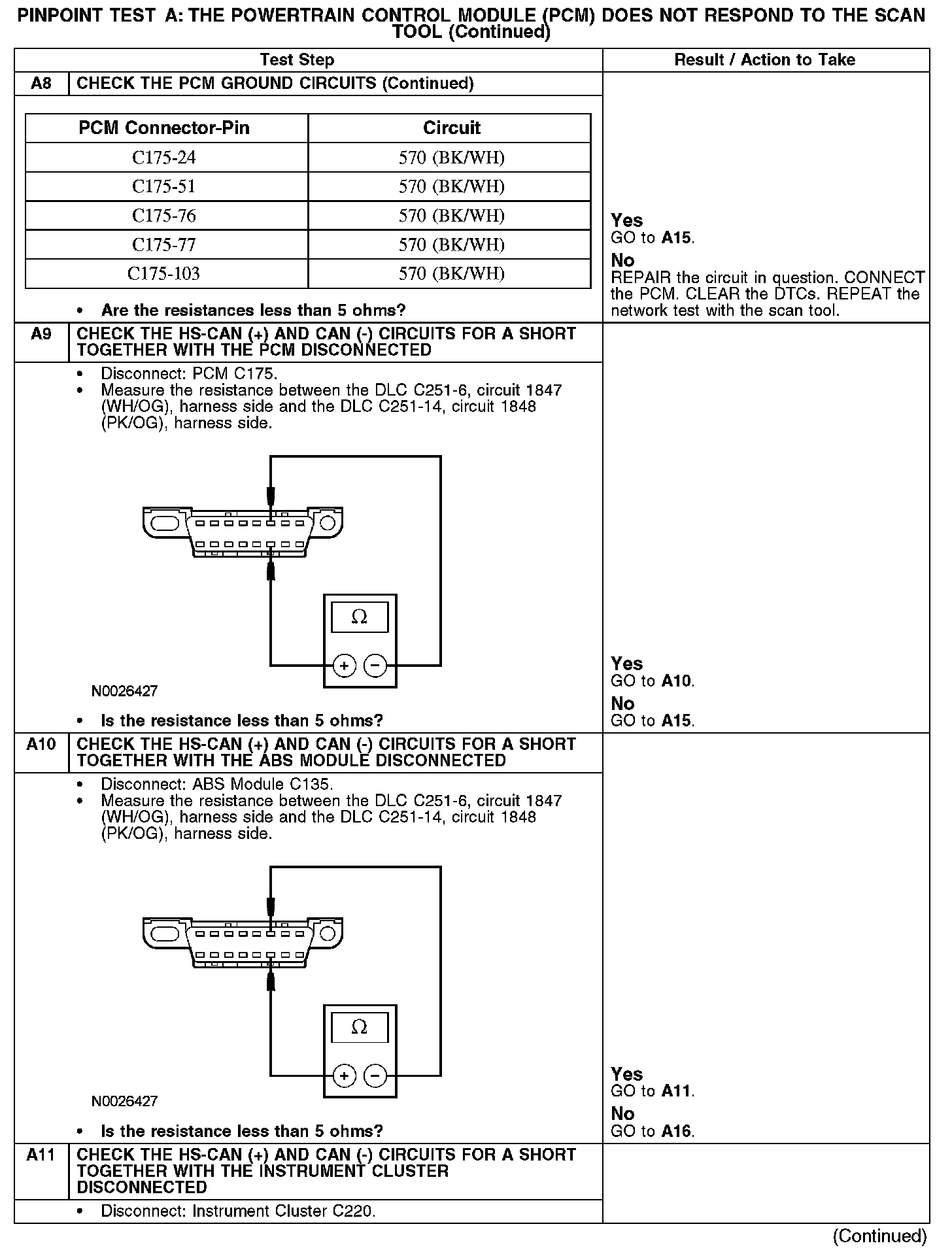

A8-A11:

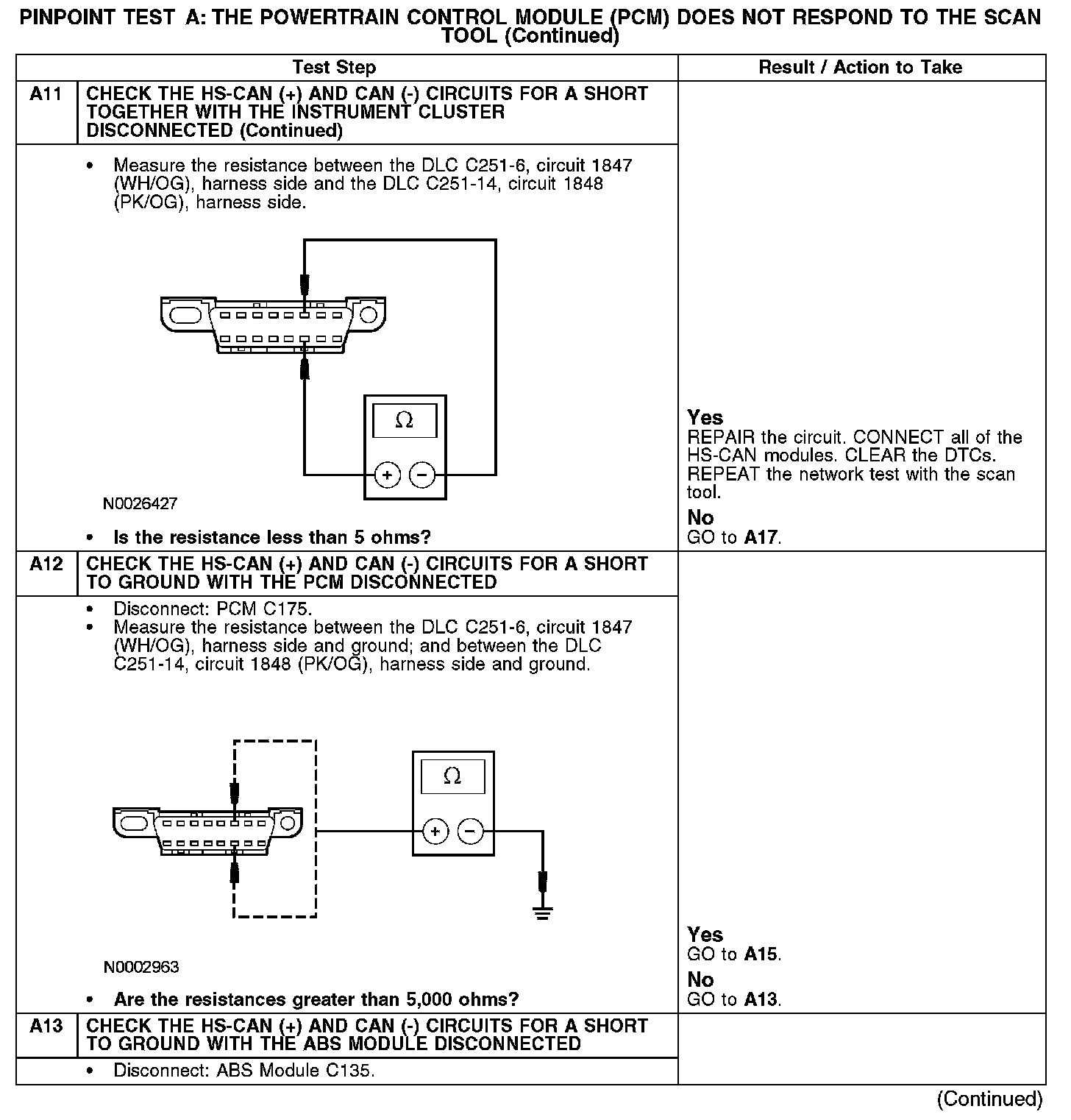

A11-A13:

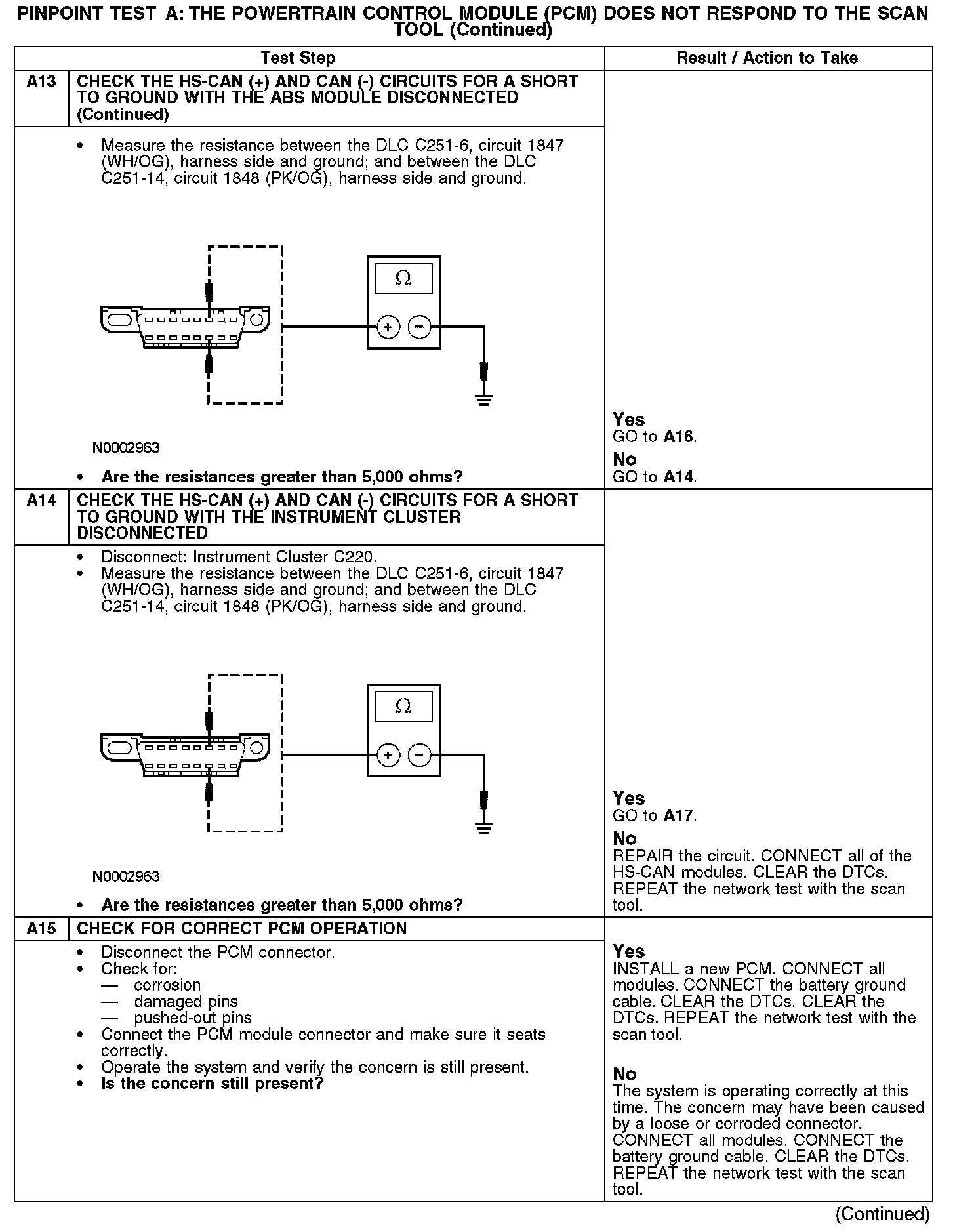

A13-A15:

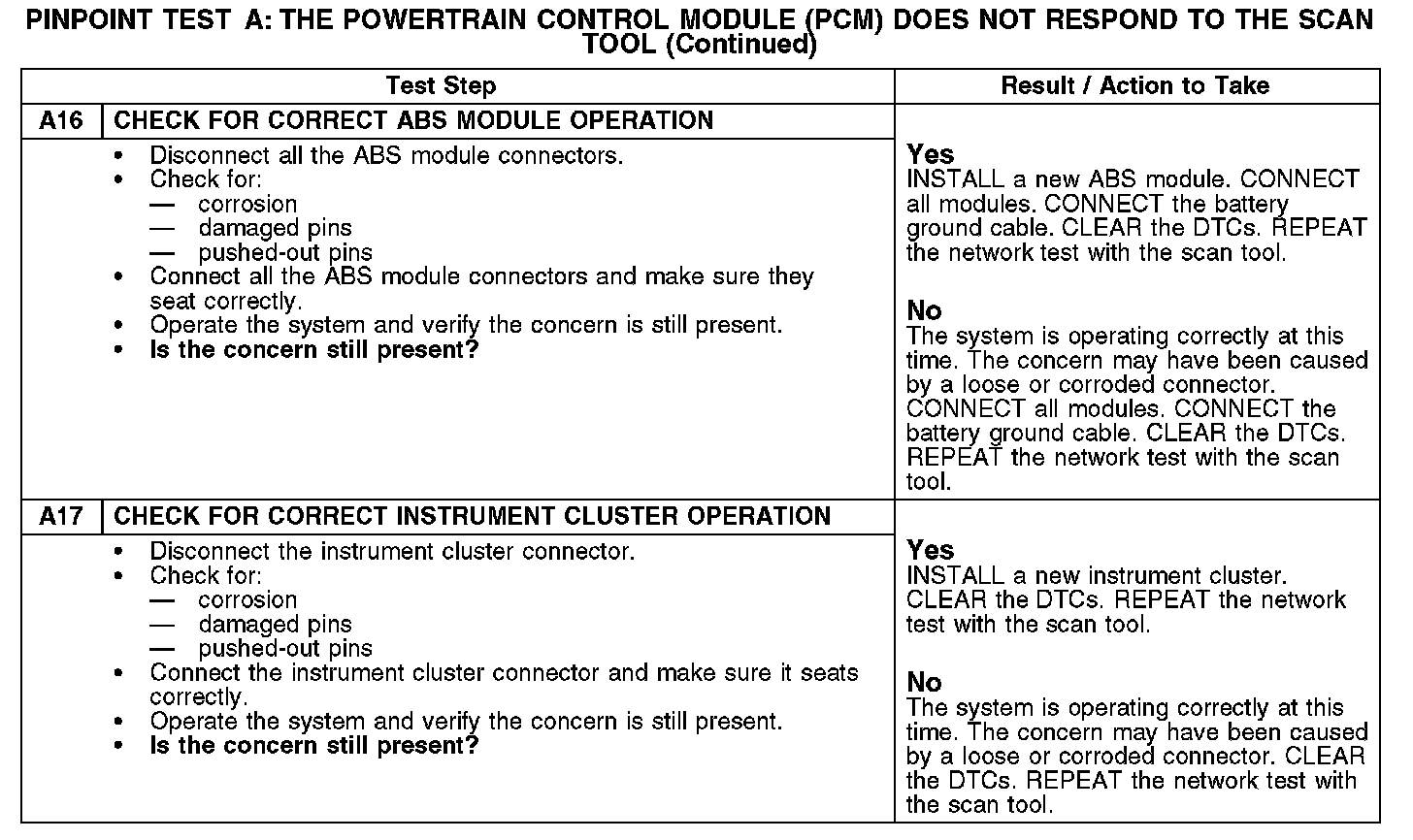

A16-A17:

Normal Operation
The PCM communicates with the scan tool through the high speed controller area network (HS-CAN), circuits 1847 (WH/OG) and 1848 (PK/OG). The PCM shares the HS-CAN with the anti-lock brake system (ABS) module and the instrument cluster. Circuit 883 (PK/LB) provides voltage, and circuit 570 (BK/WH) provides ground.

Possible Causes
- Fuse
- Circuit 570 (BK/WH) open
- Circuit 883 (PK/LB) open
- Circuit 1847 (WH/OG) open, short to ground or voltage (HS-CAN +)
- Circuit 1848 (PK/OG) open, short to ground or voltage (HS-CAN -)
- Circuit 1847 (WH/OG) (HS-CAN +) and circuit 1848 (PK/OG) (HS-CAN -) shorted together
- PCM
- ABS module
- Instrument cluster
