Keyless Entry Key-Pad: Service and Repair

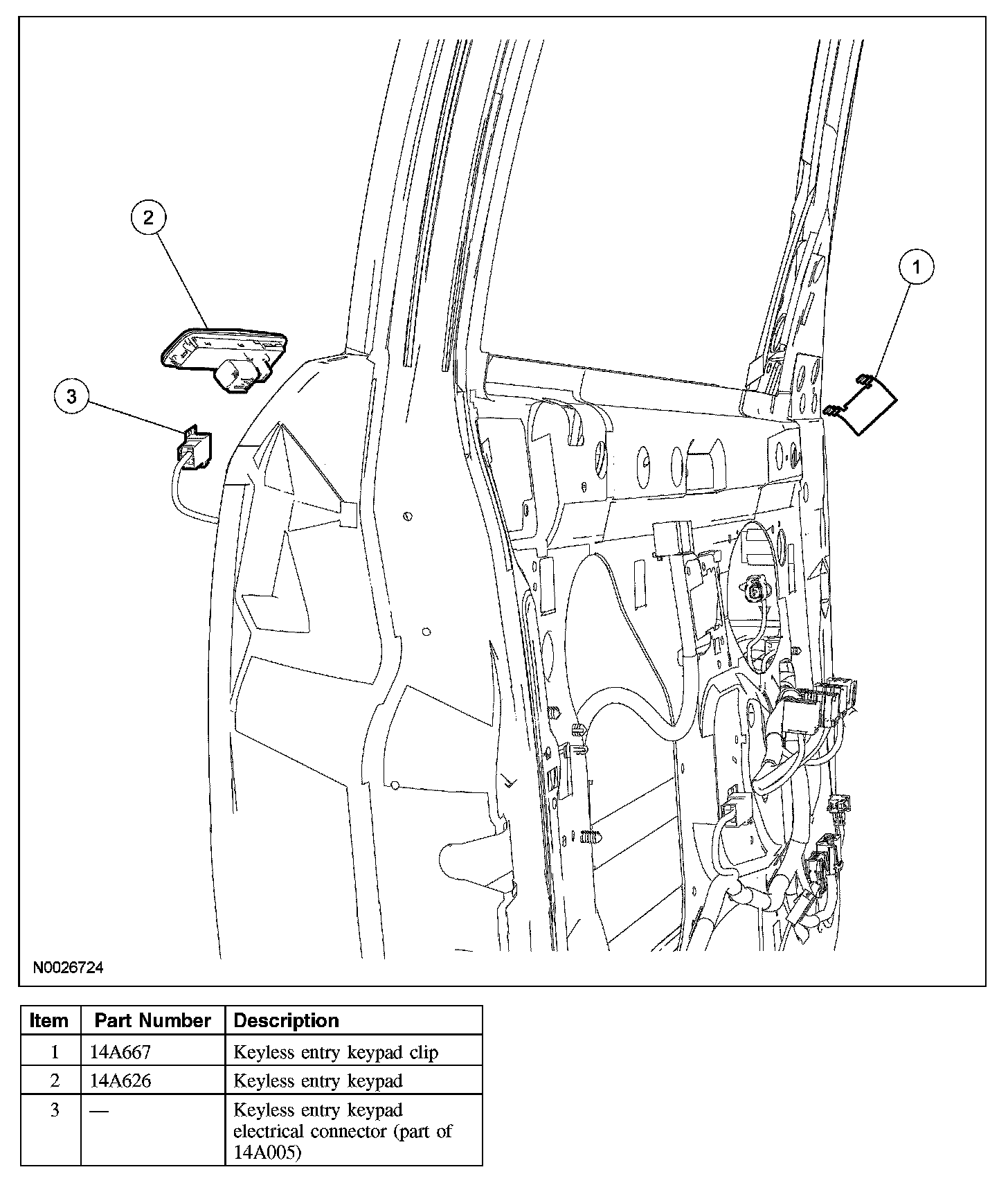

KEYLESS ENTRY KEYPAD







Removal and Installation
1. Remove the LH front door trim panel.
2. Position the watershield aside.
3. Remove the clip and the keyless entry keypad.
- Disconnect the electrical connector.

4. To install, reverse the removal procedure.
