System Diagram

Exhaust System - Exploded View

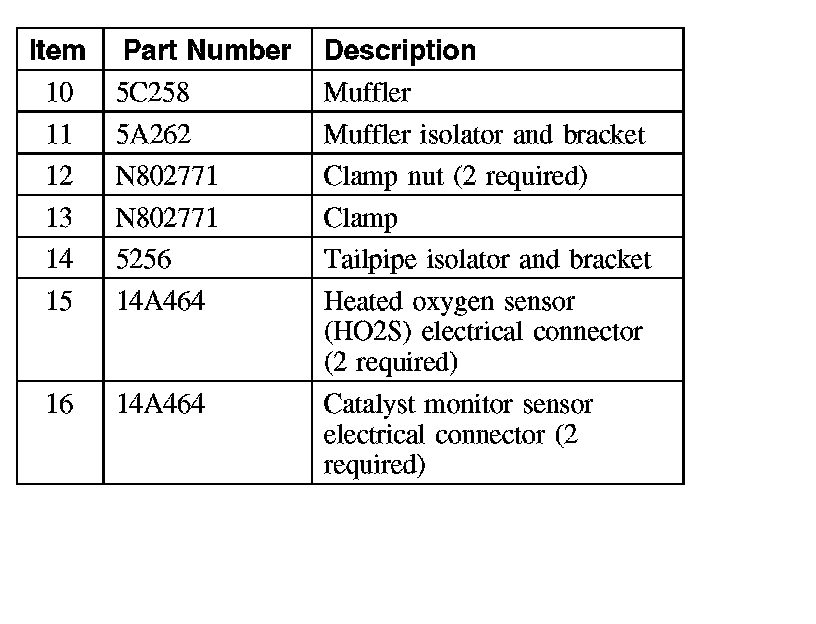

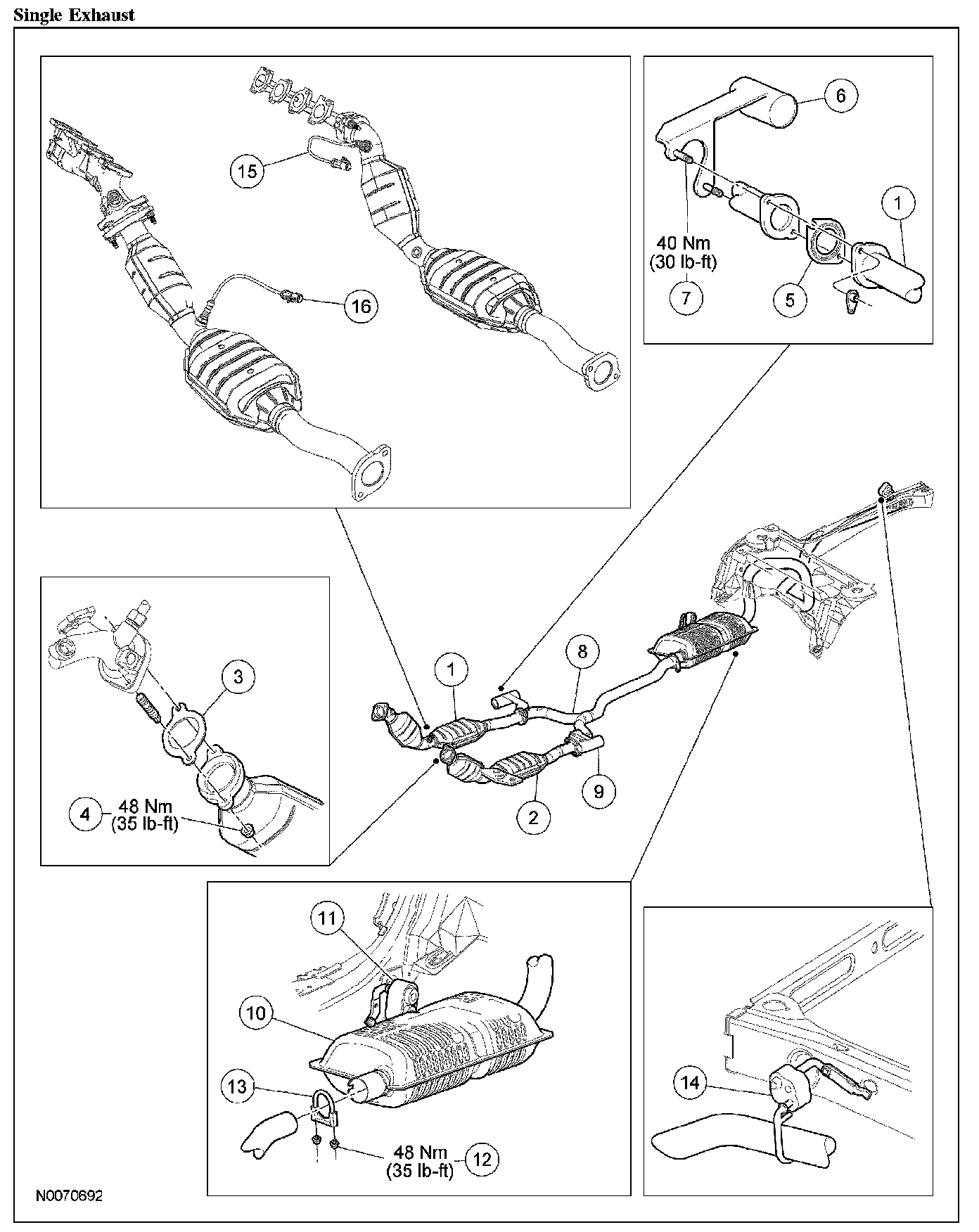

Single Exhaust (Part 1):




Single Exhaust (Part 2):




Single Exhaust (Part 3):

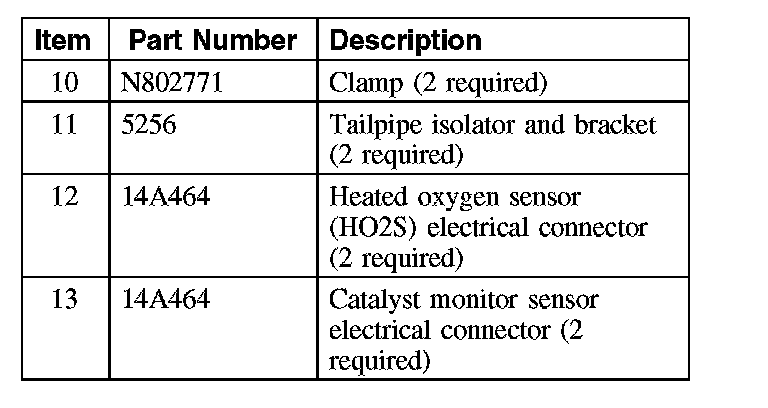

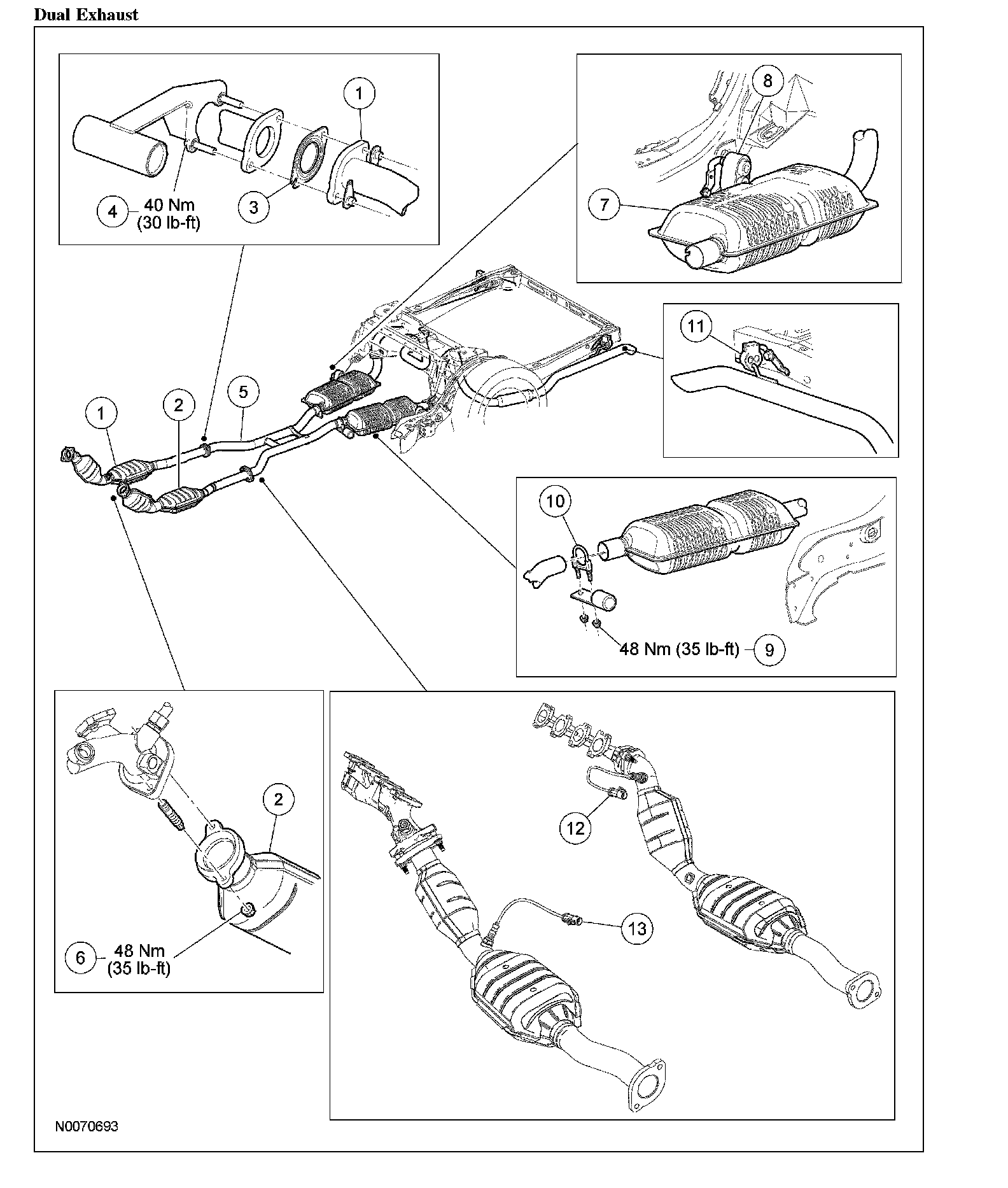

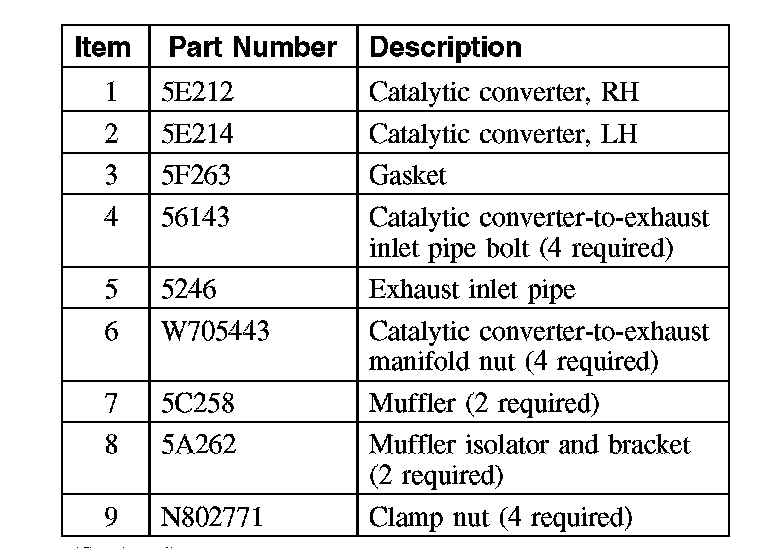

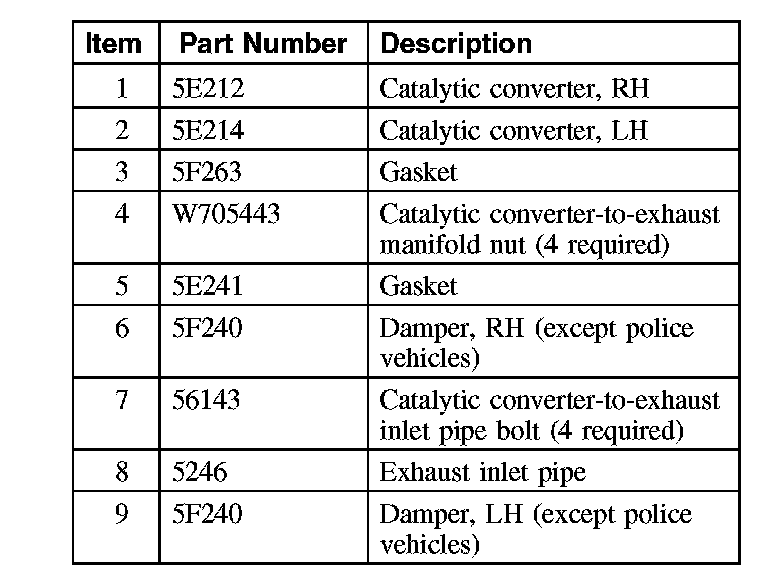

Dual Exhaust (Part 1):




Dual Exhaust (Part 2):




Dual Exhaust (Part 3):
