Flex Plate

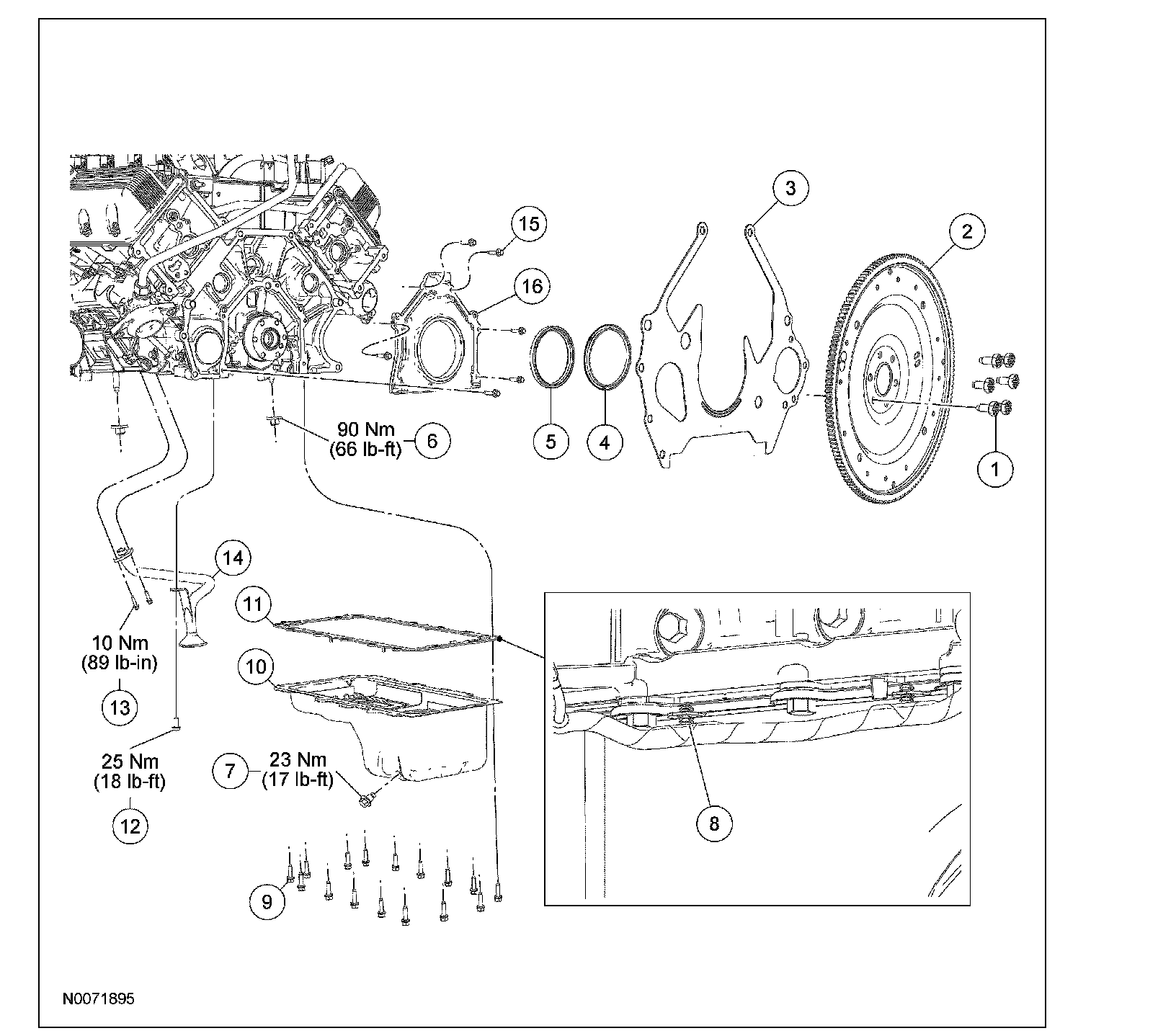

Lower End Components - Exploded View, Flexplate and Crankshaft Rear Seal with Retainer Plate

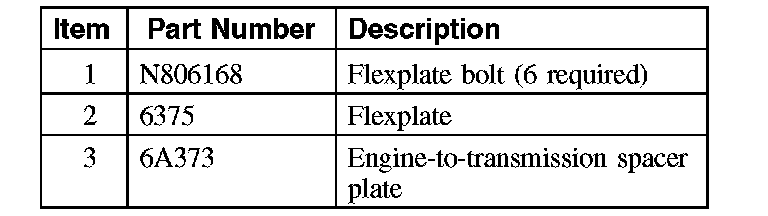

Lower End Components - Exploded View, Flexplate and Crankshaft Rear Seal with Retainer Plate (Part 1):




Lower End Components - Exploded View, Flexplate and Crankshaft Rear Seal with Retainer Plate (Part 2):

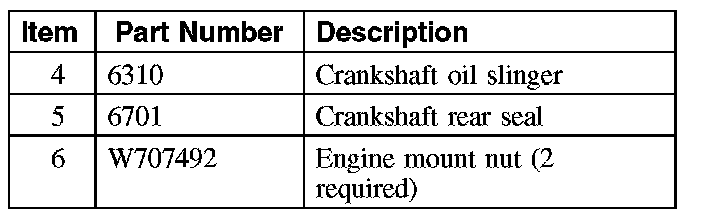

Lower End Components - Exploded View, Flexplate and Crankshaft Rear Seal with Retainer Plate (Part 3):

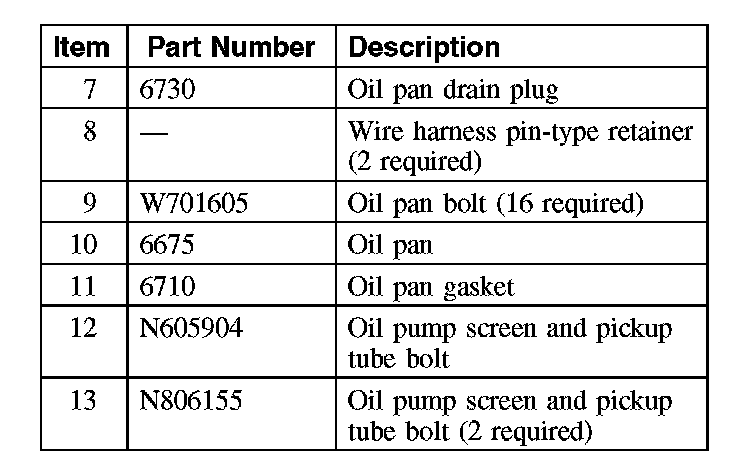

Lower End Components - Exploded View, Flexplate and Crankshaft Rear Seal with Retainer Plate (Part 4):

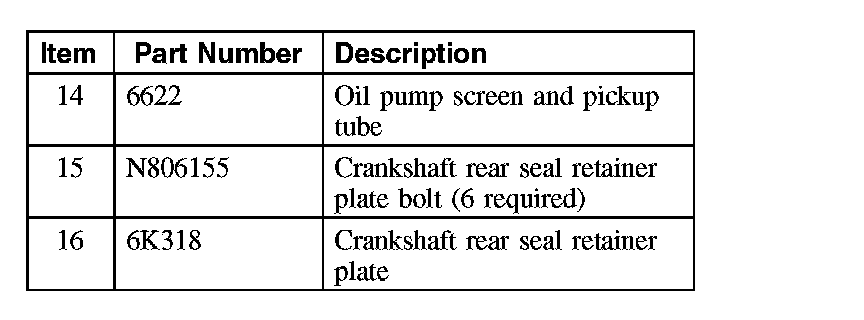

Lower End Components - Exploded View, Flexplate and Crankshaft Rear Seal with Retainer Plate (Part 5):
