Heating Ventilation Air Conditioning (HVAC) Module

HEATING VENTILATION AIR CONDITIONING (HVAC) MODULE

Removal and Installation
1. Depower the supplemental restraint system (SRS).

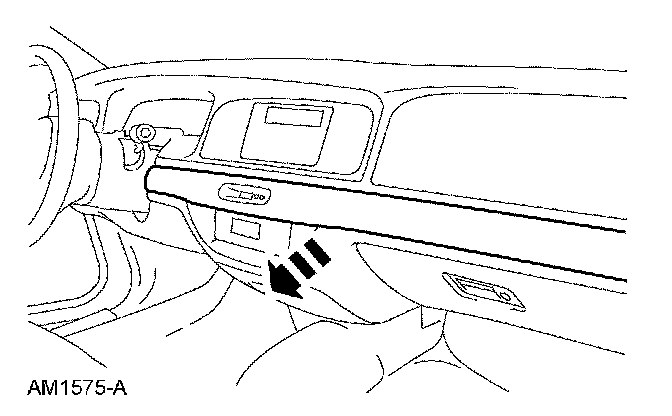

2. Detach the finish panel.

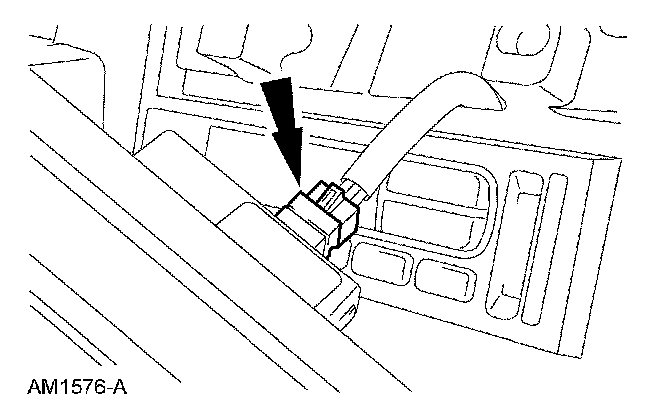

3. Disconnect the electrical connector.

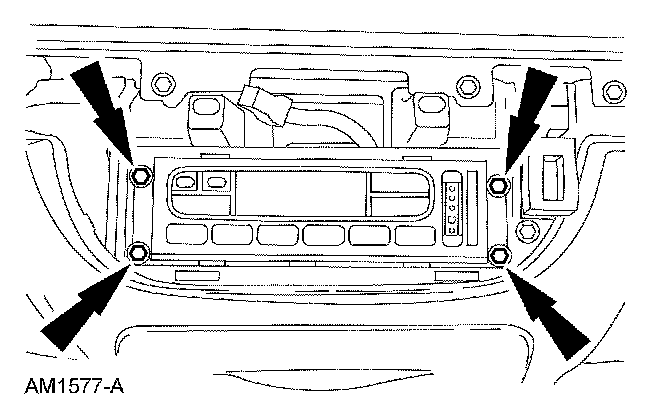

4. Remove the 4 heating ventilation air conditioning (HVAC) module screws.







5. Remove the HVAC module.
- Remove the nuts and disconnect the vacuum harness.

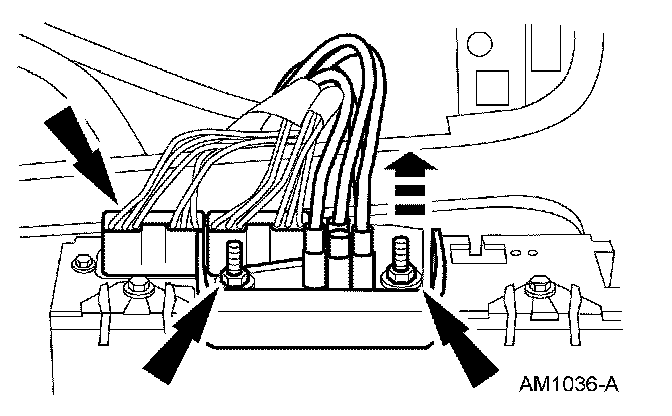

- Disconnect the wire harness connectors and remove the HVAC module.







6. To install, reverse the removal procedure.
