Air Flow Meter/Sensor: Service and Repair

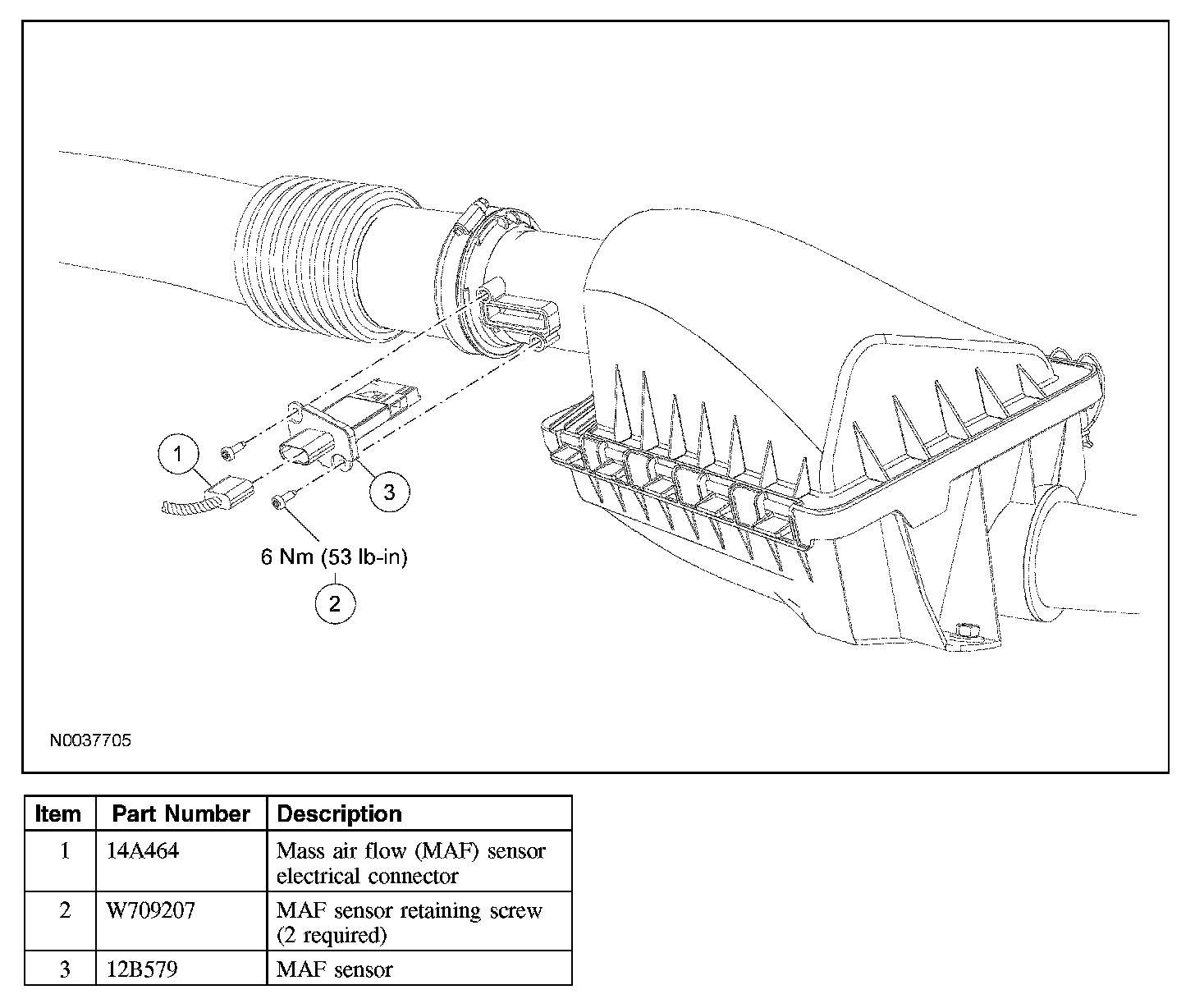

MASS AIR FLOW (MAF) SENSOR







Removal and Installation
1. Disconnect the mass air flow (MAF) sensor electrical connector.
2. Remove the MAF sensor retaining screws.
- To install, tighten to 6 Nm (53 lb-in).

3. Remove the MAF sensor.
4. To install, reverse the removal procedure.
