System Specifications

Timing Chain Tensioner Bolts 25 Nm (18 lb-ft).

Crankshaft Pulley Bolt
First pass 120 Nm (89 lb-ft).
Second pass Loosen bolt one full turn
Third pass 50 Nm (37 lb-ft).
Final pass Tighten an additional 90°

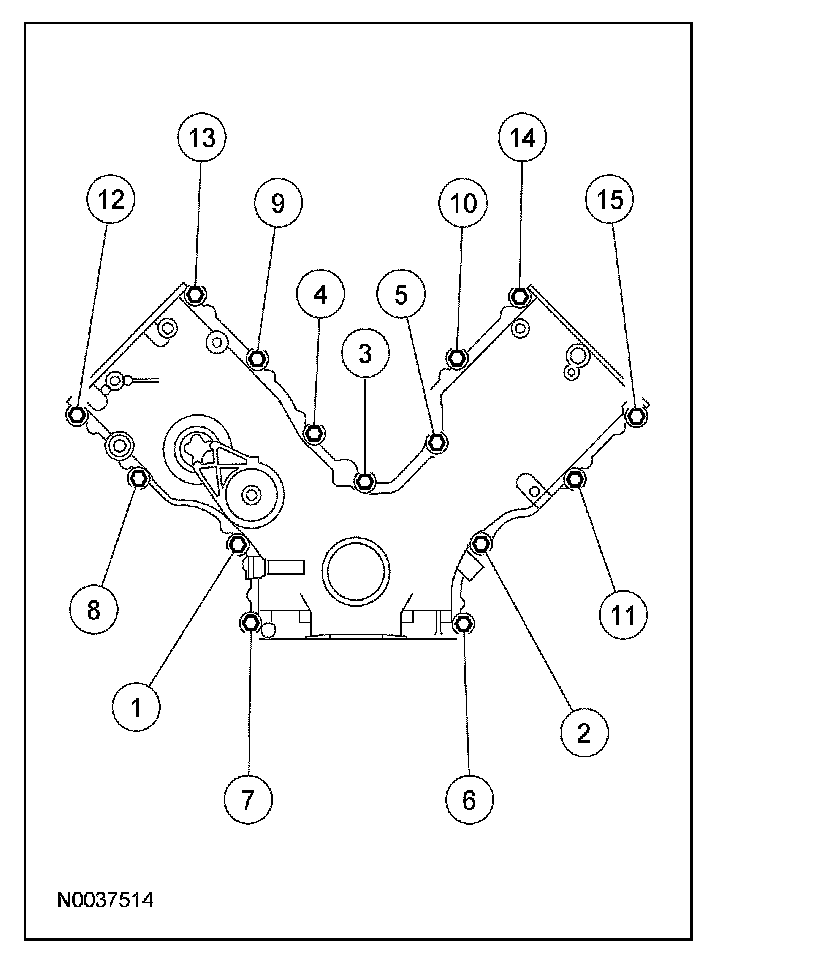

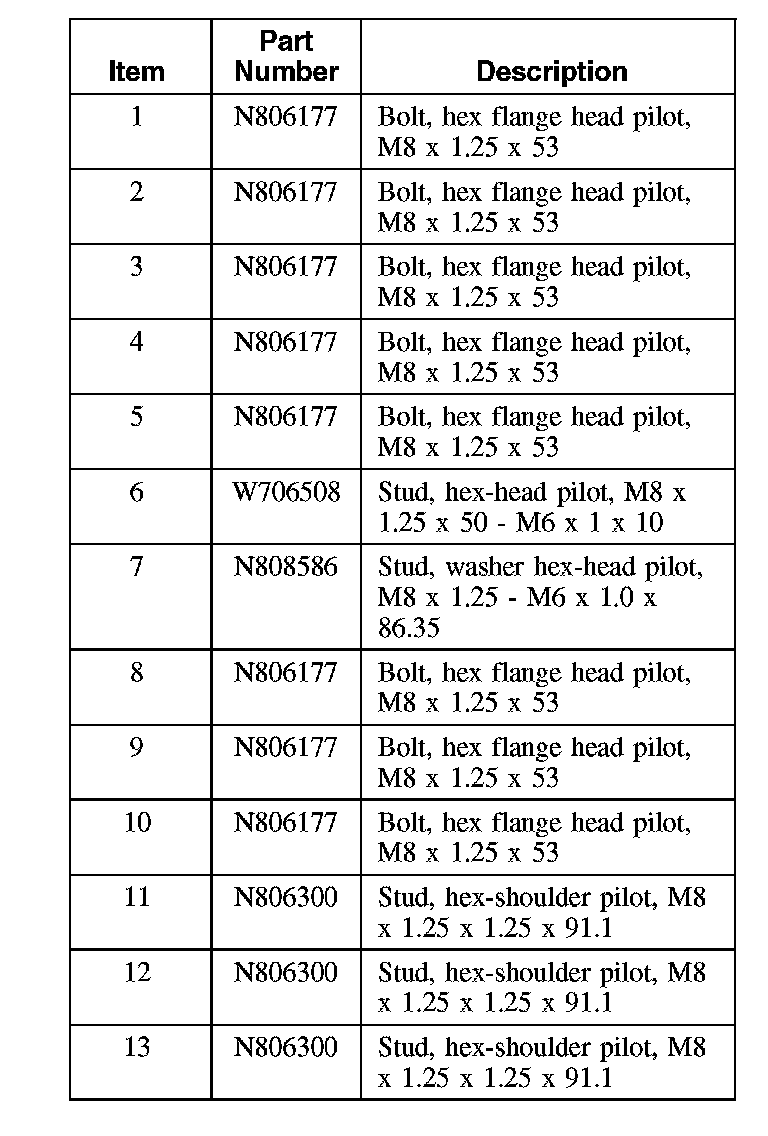

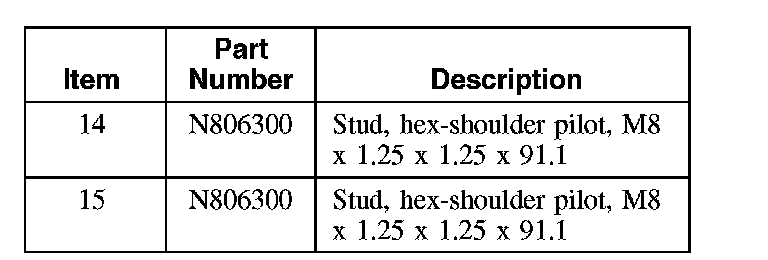

Front Cover Fasteners 25 Nm (18 lb-ft).
