Oil Pan, Engine

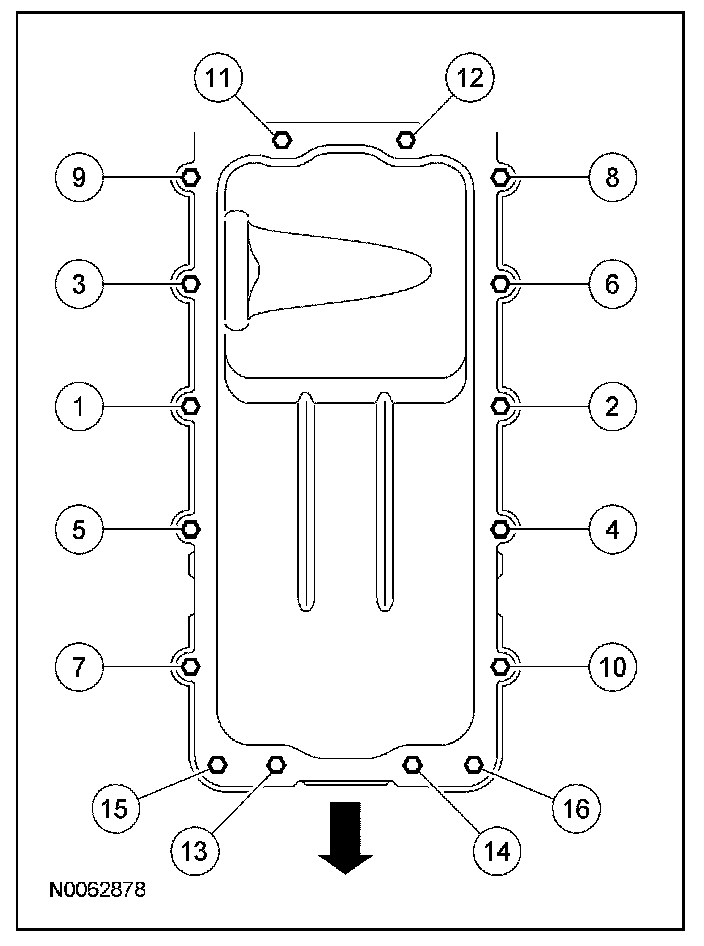

Oil Pan Bolts
Stage 1 2 Nm (18 lb-in).
Stage 2 20 Nm (15 lb-ft).
Stage 3 Tighten an additional 60°
