Connector Locations

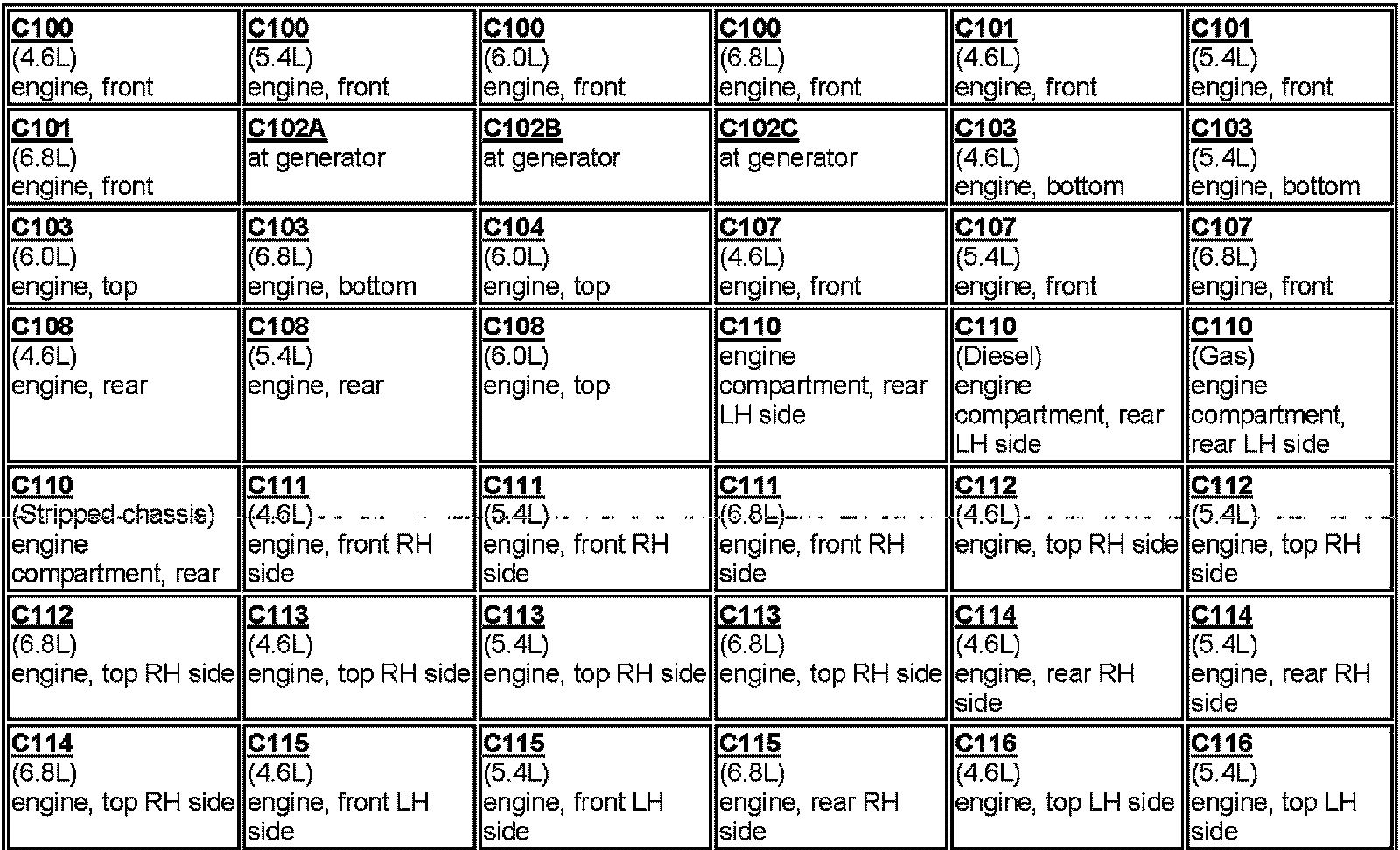

C100-C116:

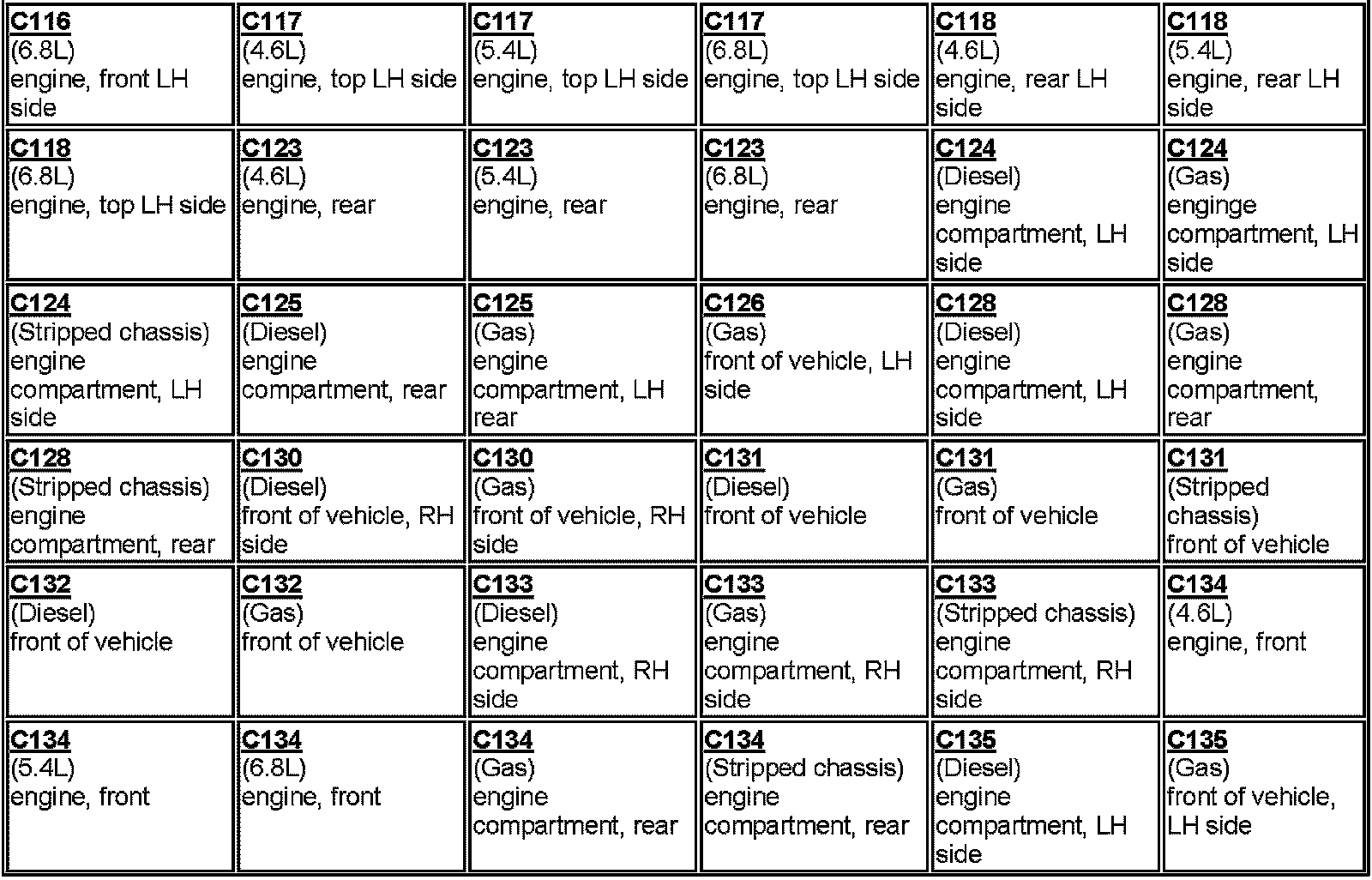

C116-C135:

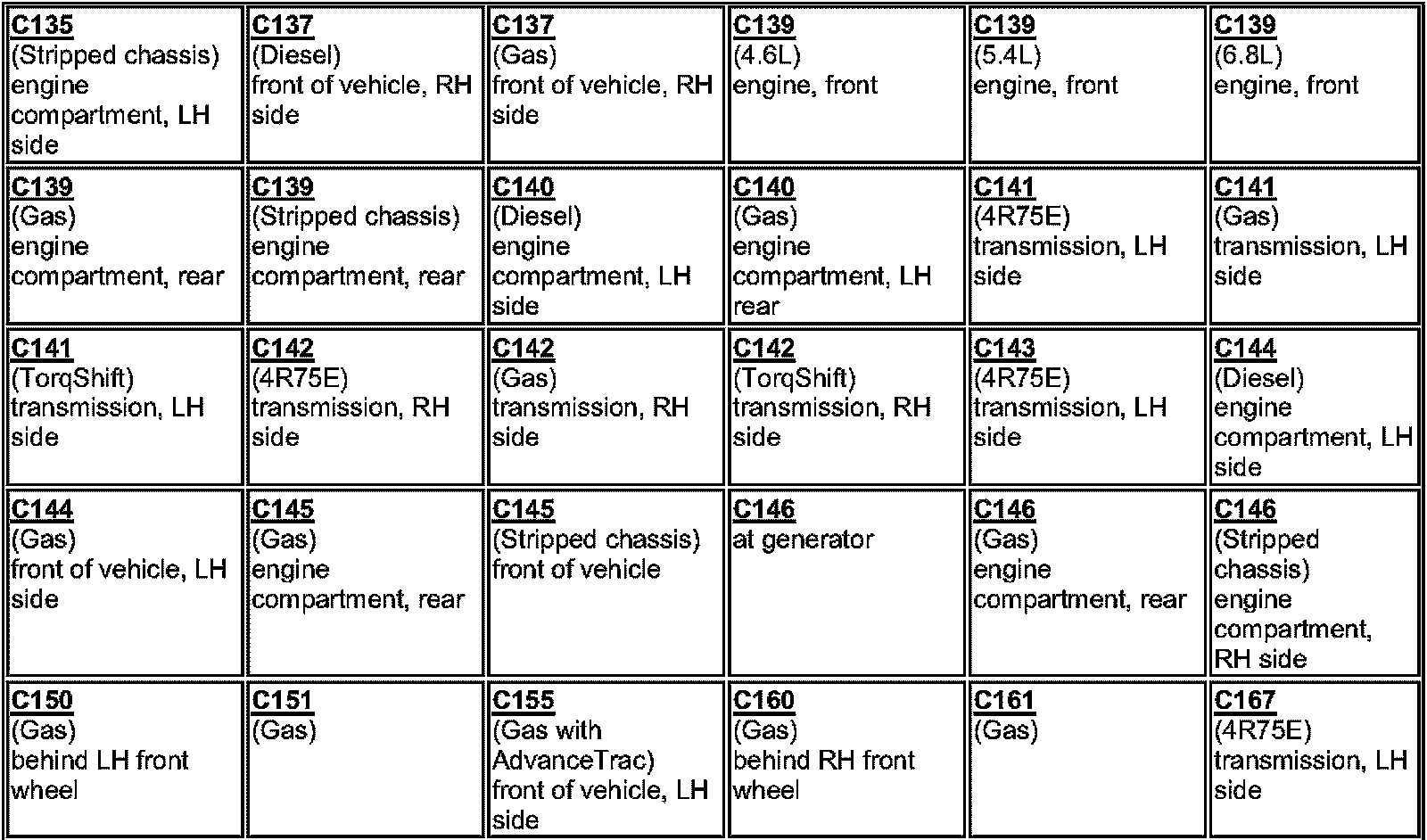

C135-C167:

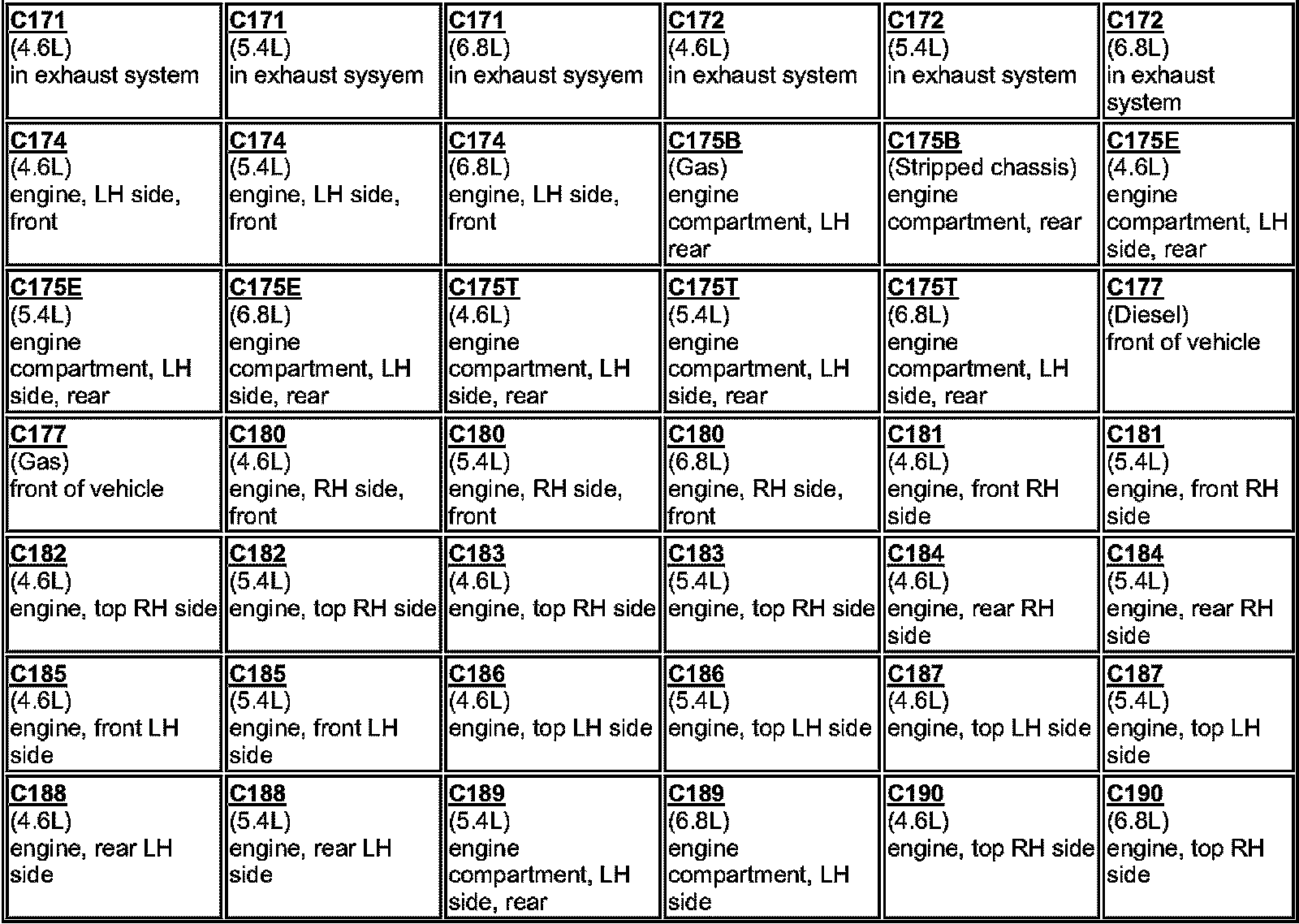

C171-C190:

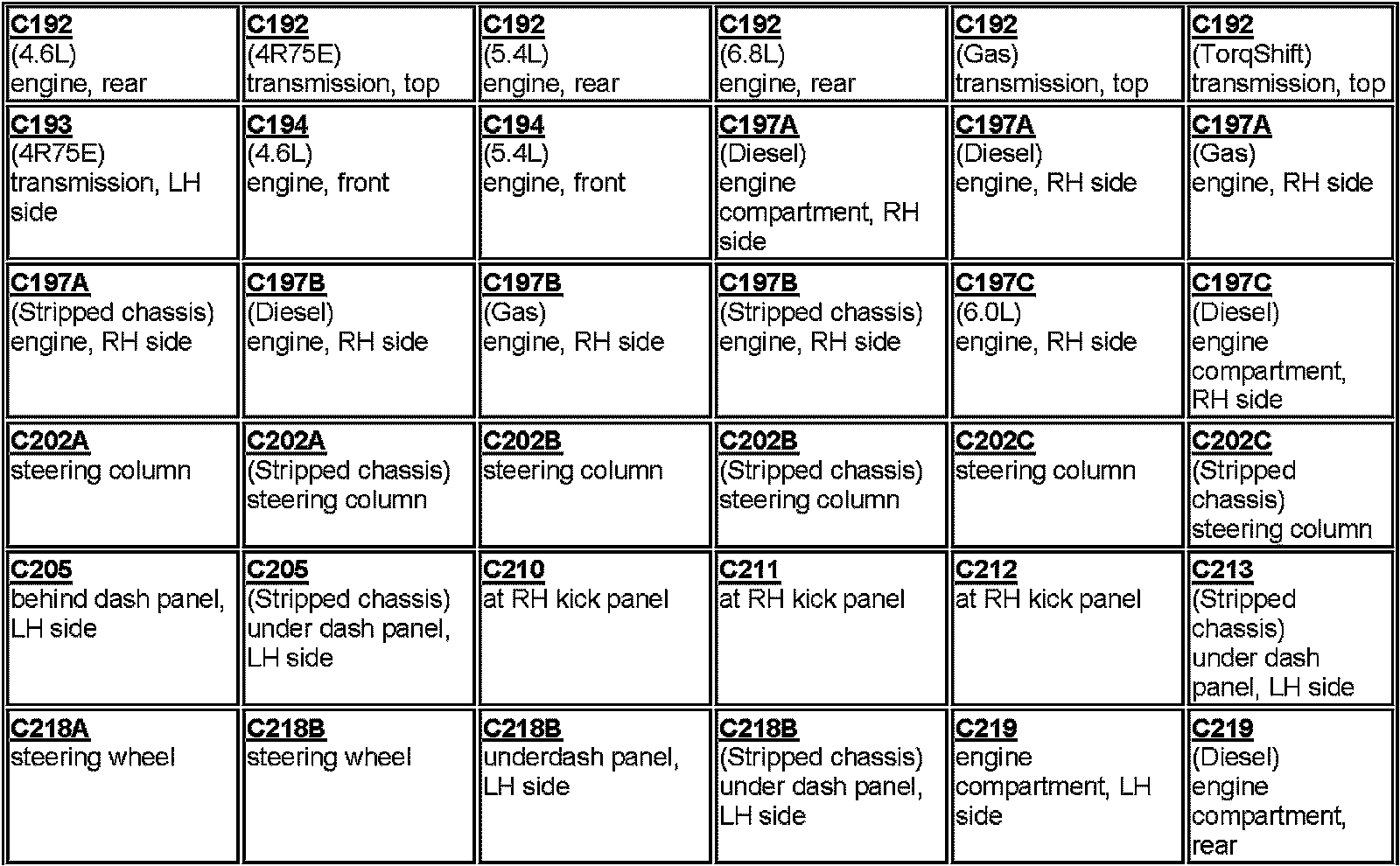

C192-C219:

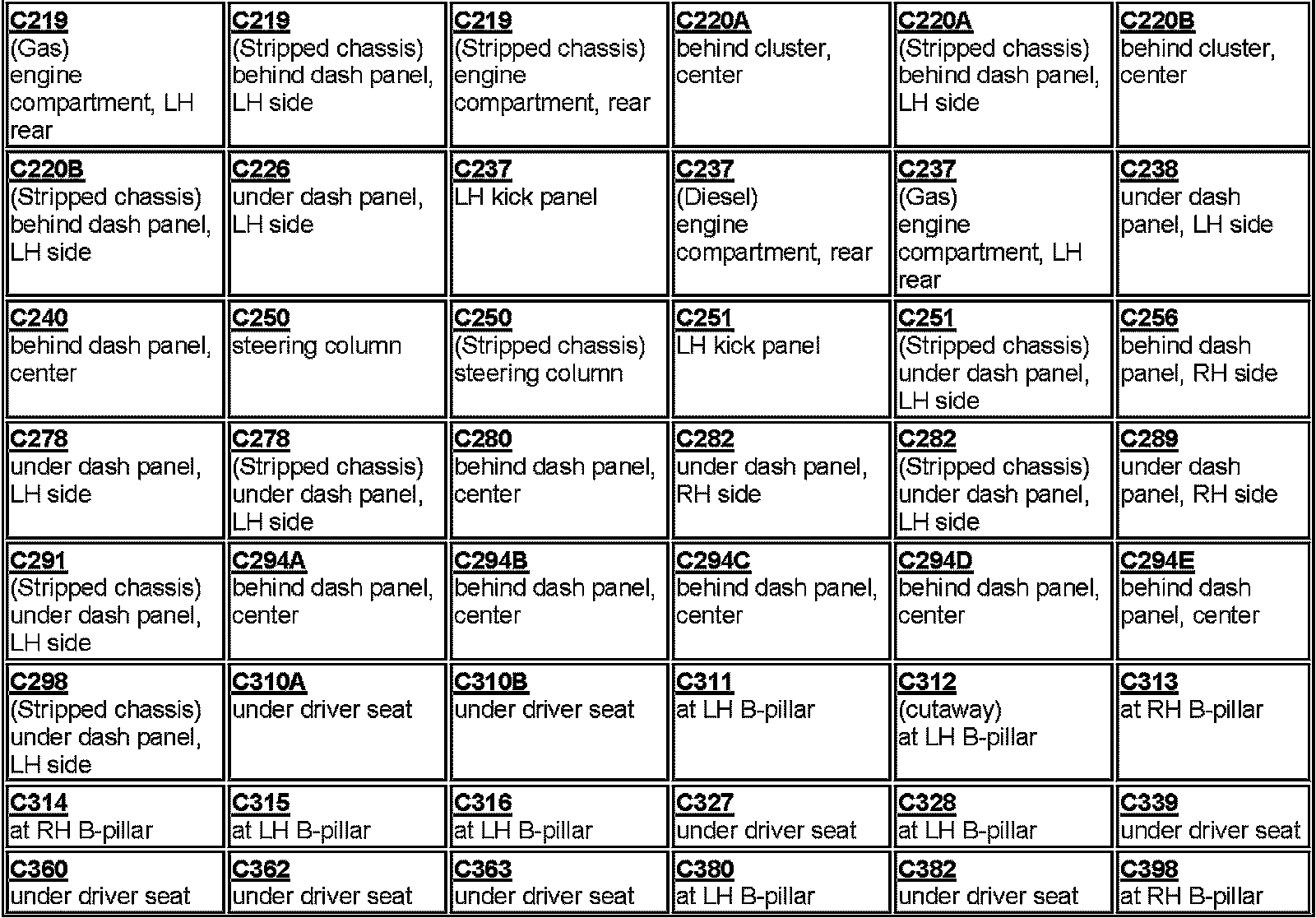

C219-C398:

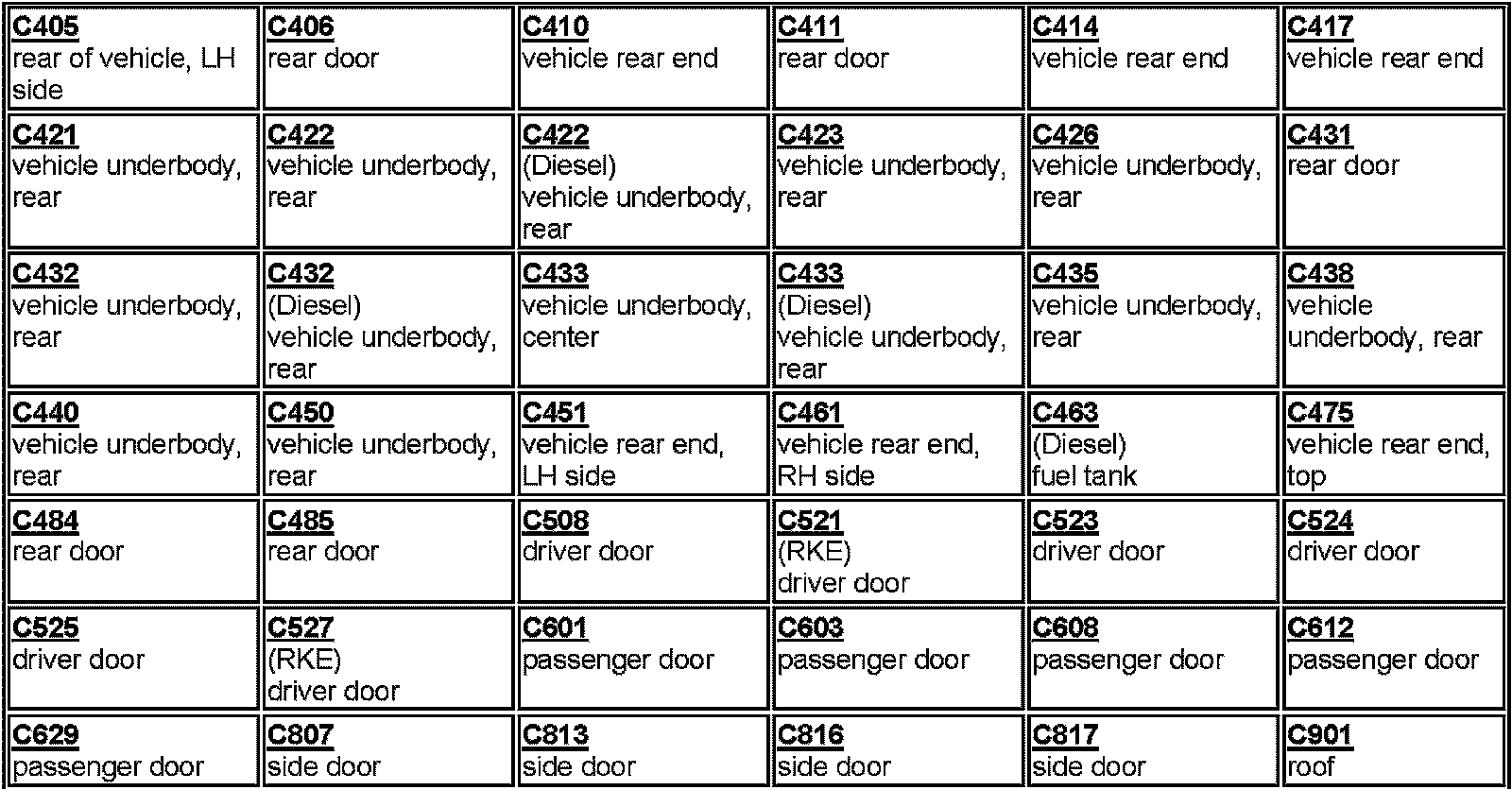

C405-C901:

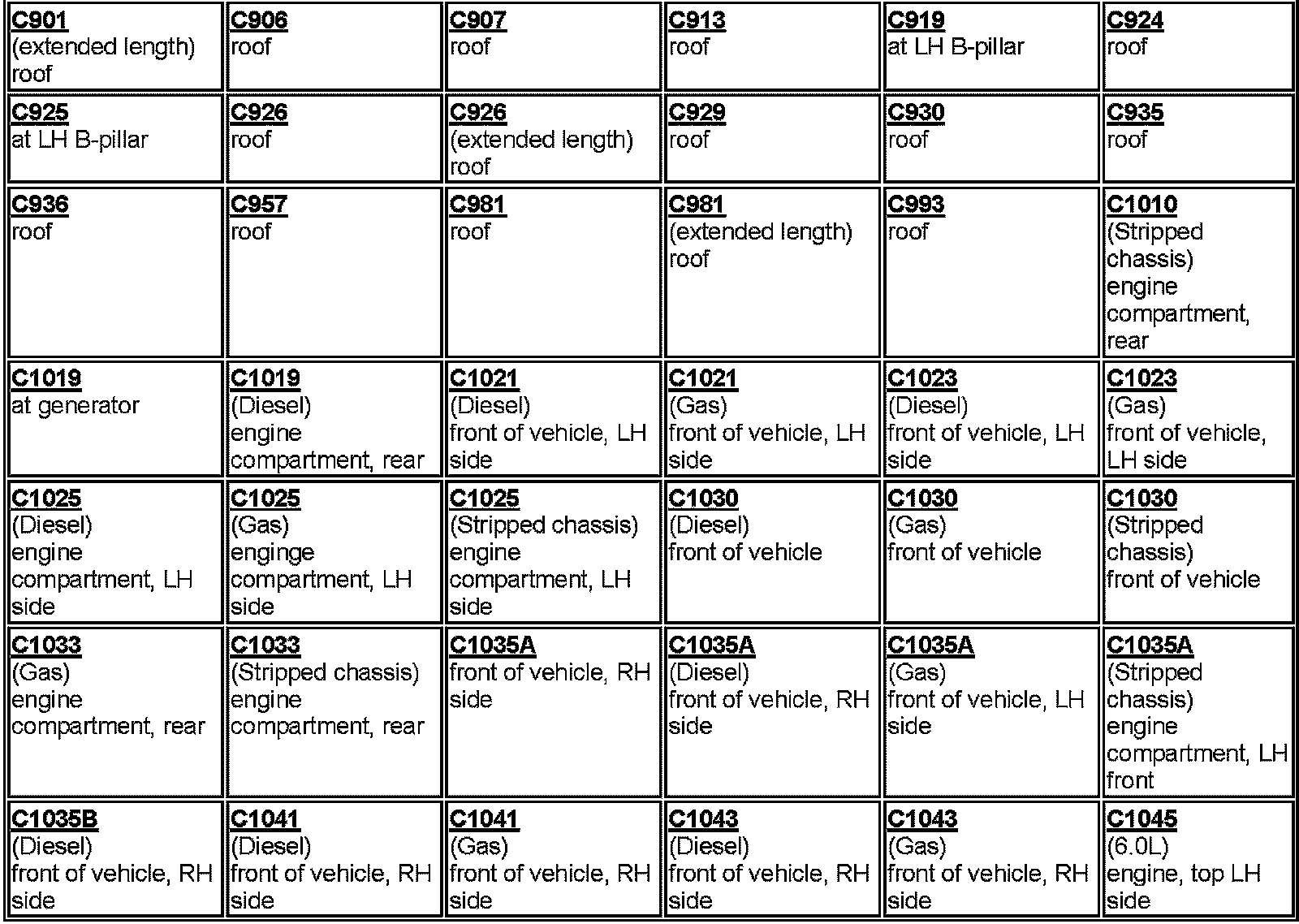

C901-C1045:

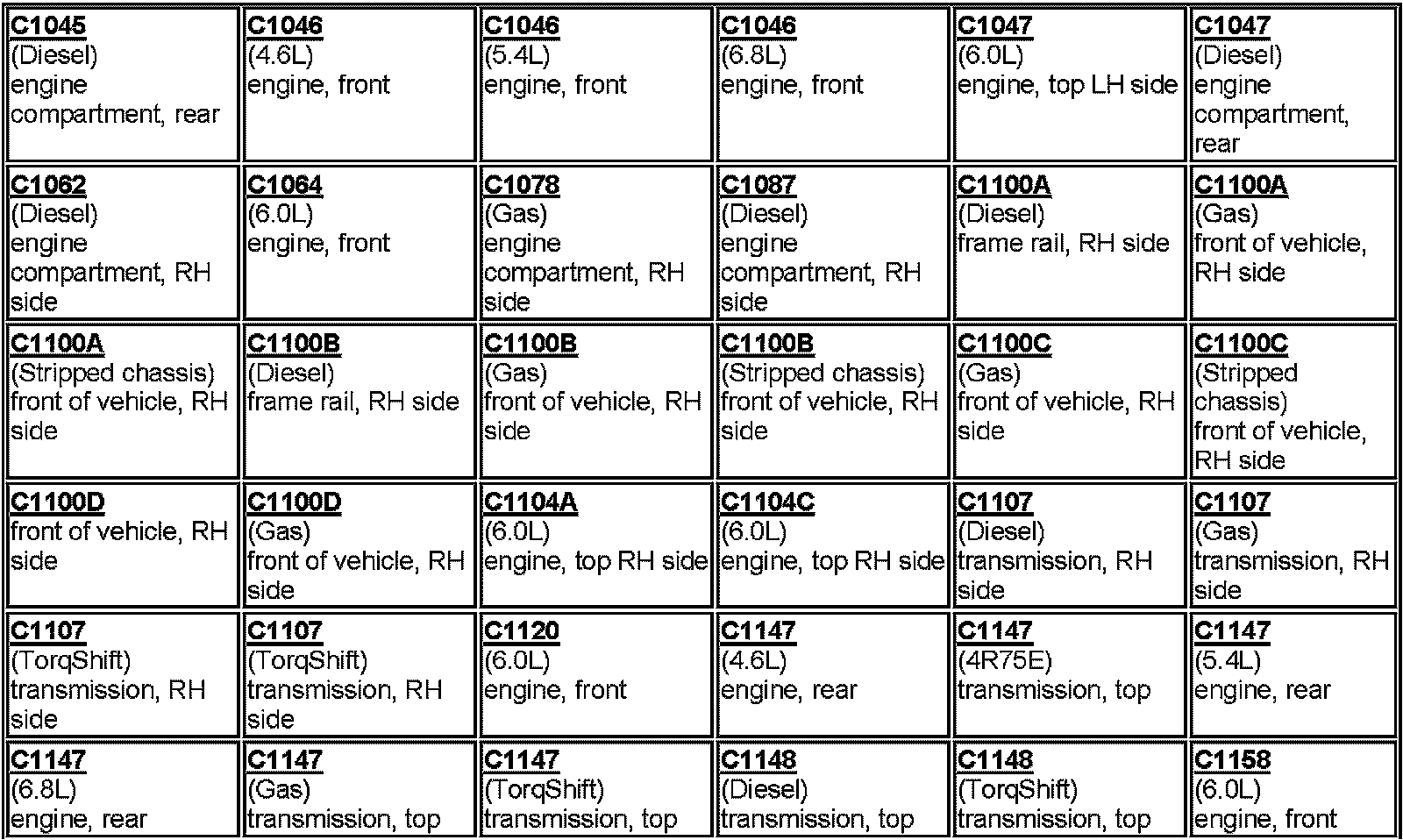

C1045-C1158:

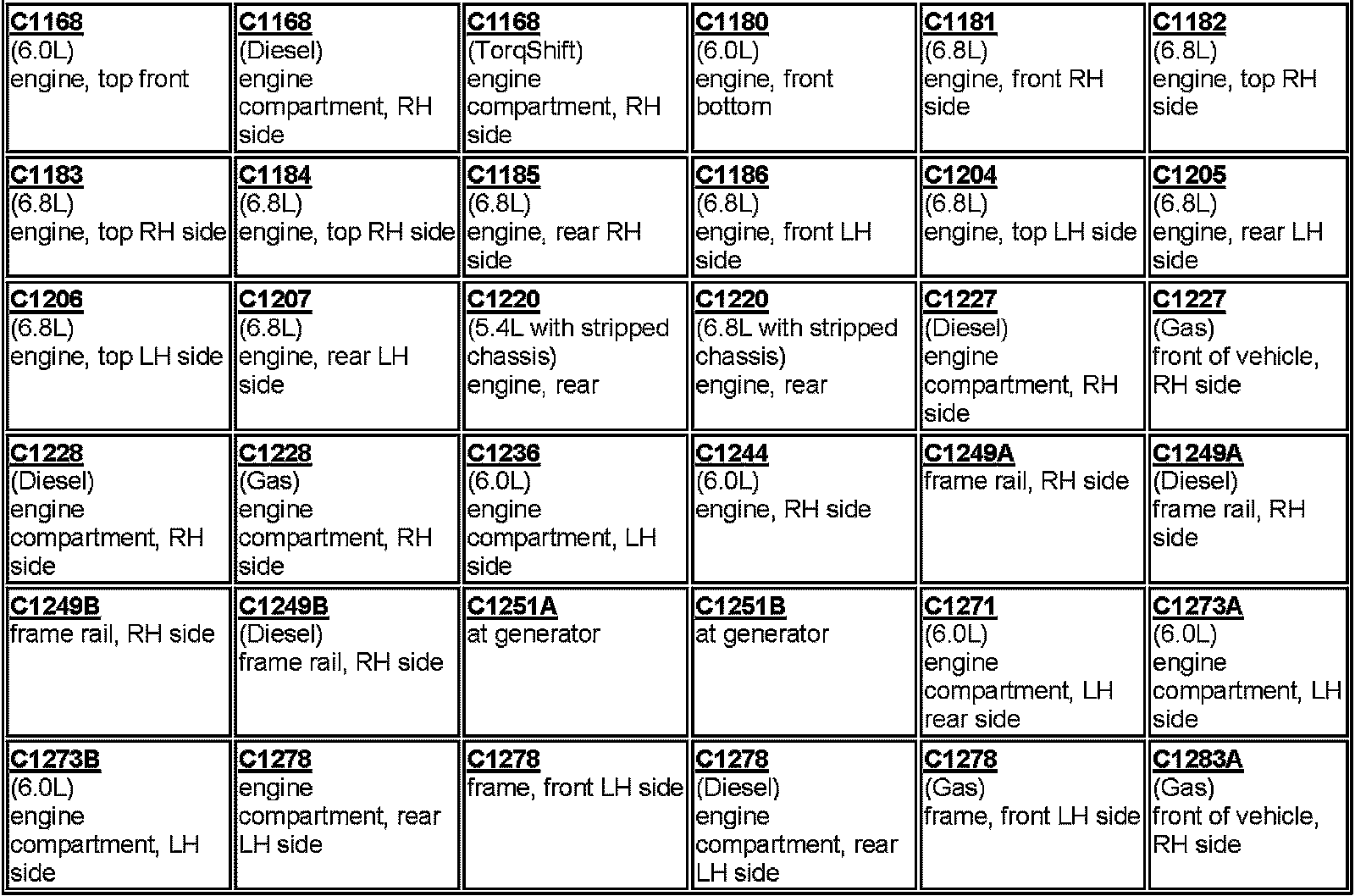

C1168-C1283A:

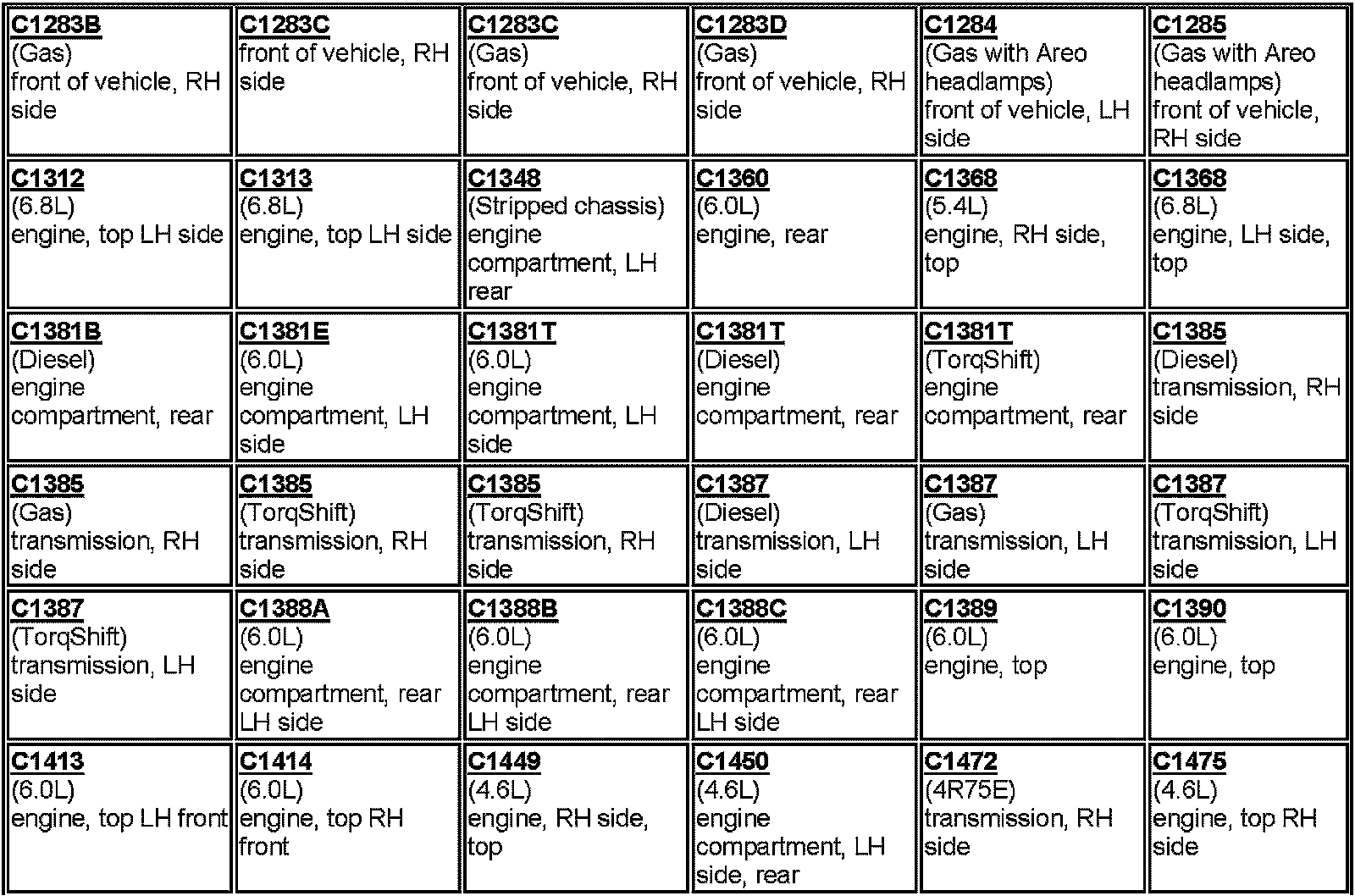

C1283B-C1475:

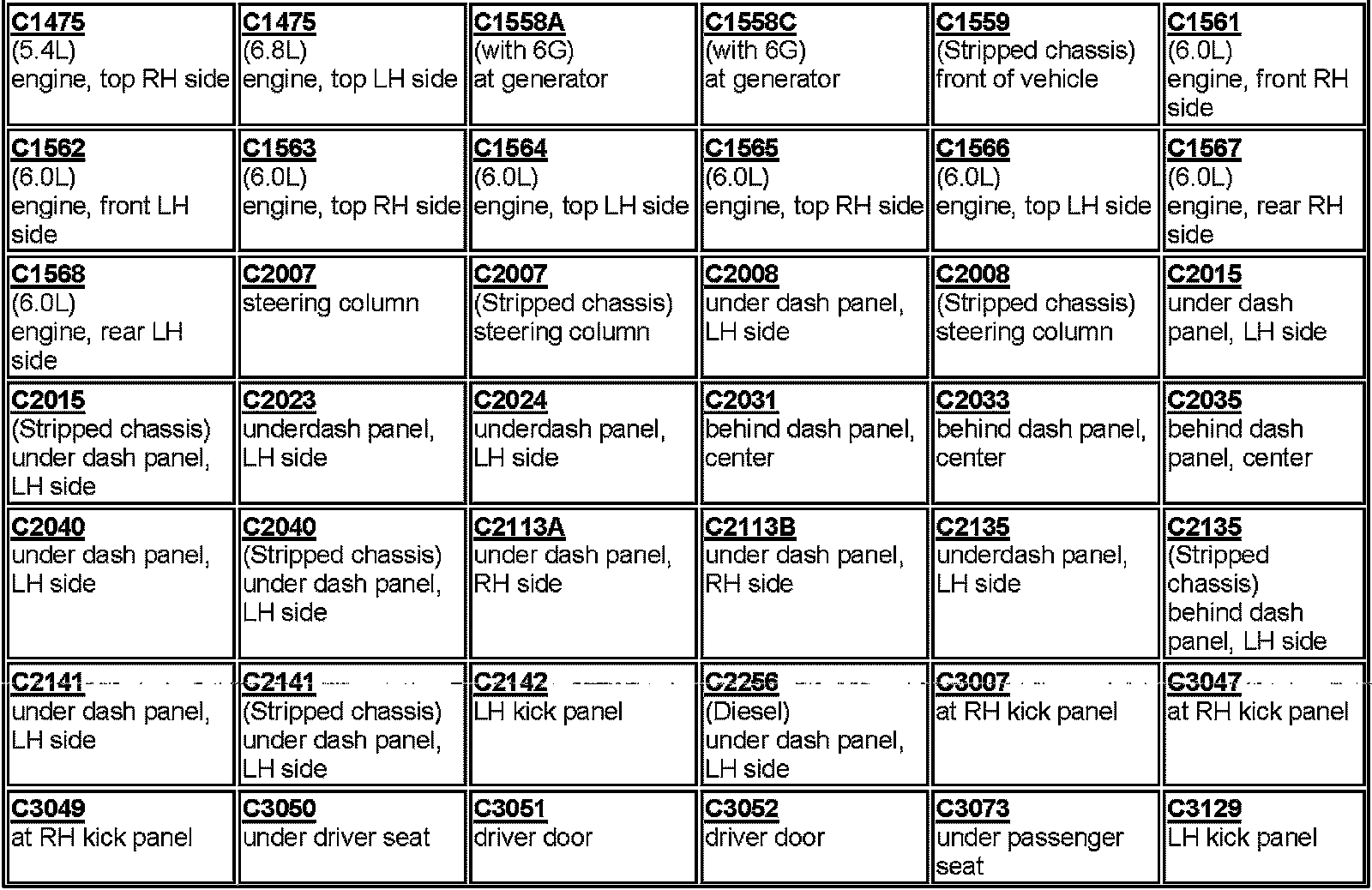

C1475-C3129:

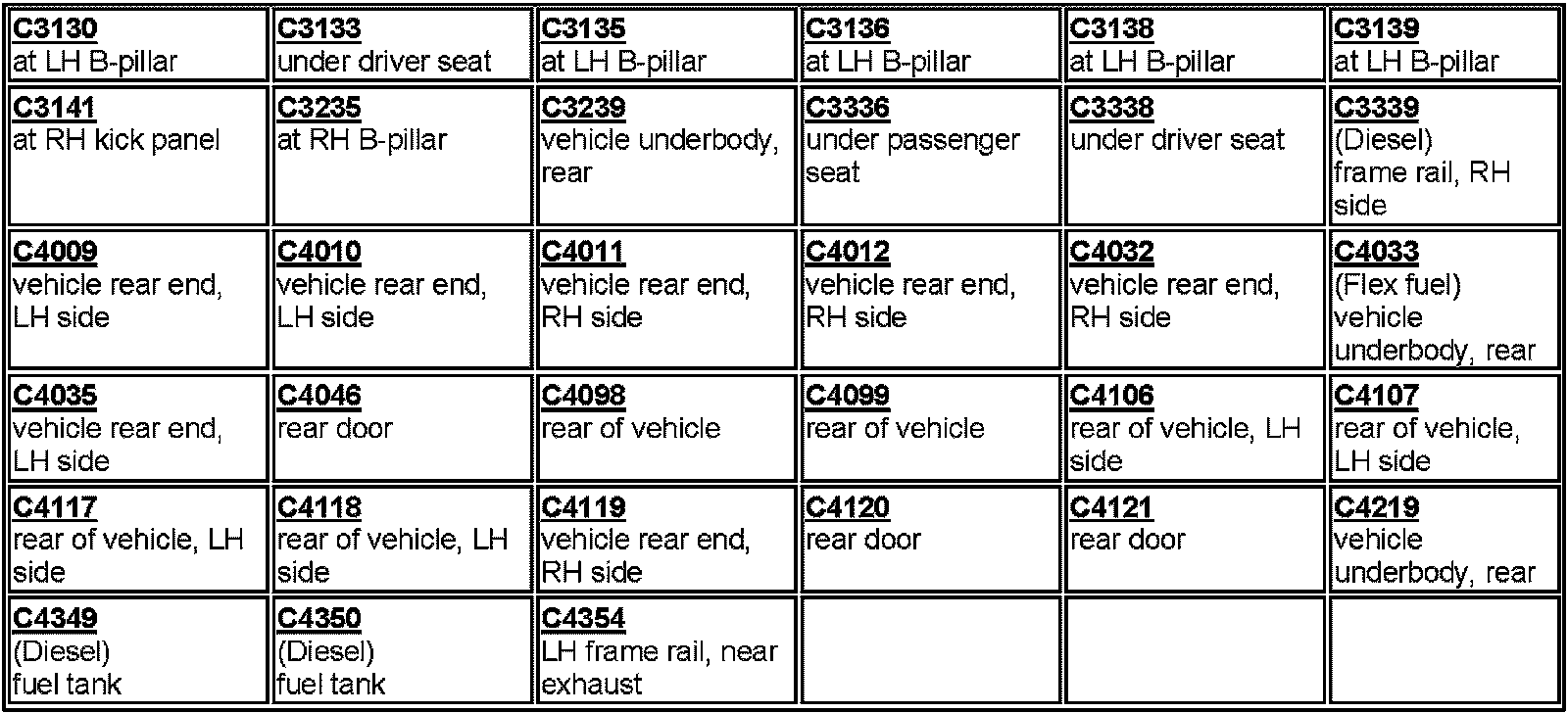

C3130-C4354:
