Injector Driver Module

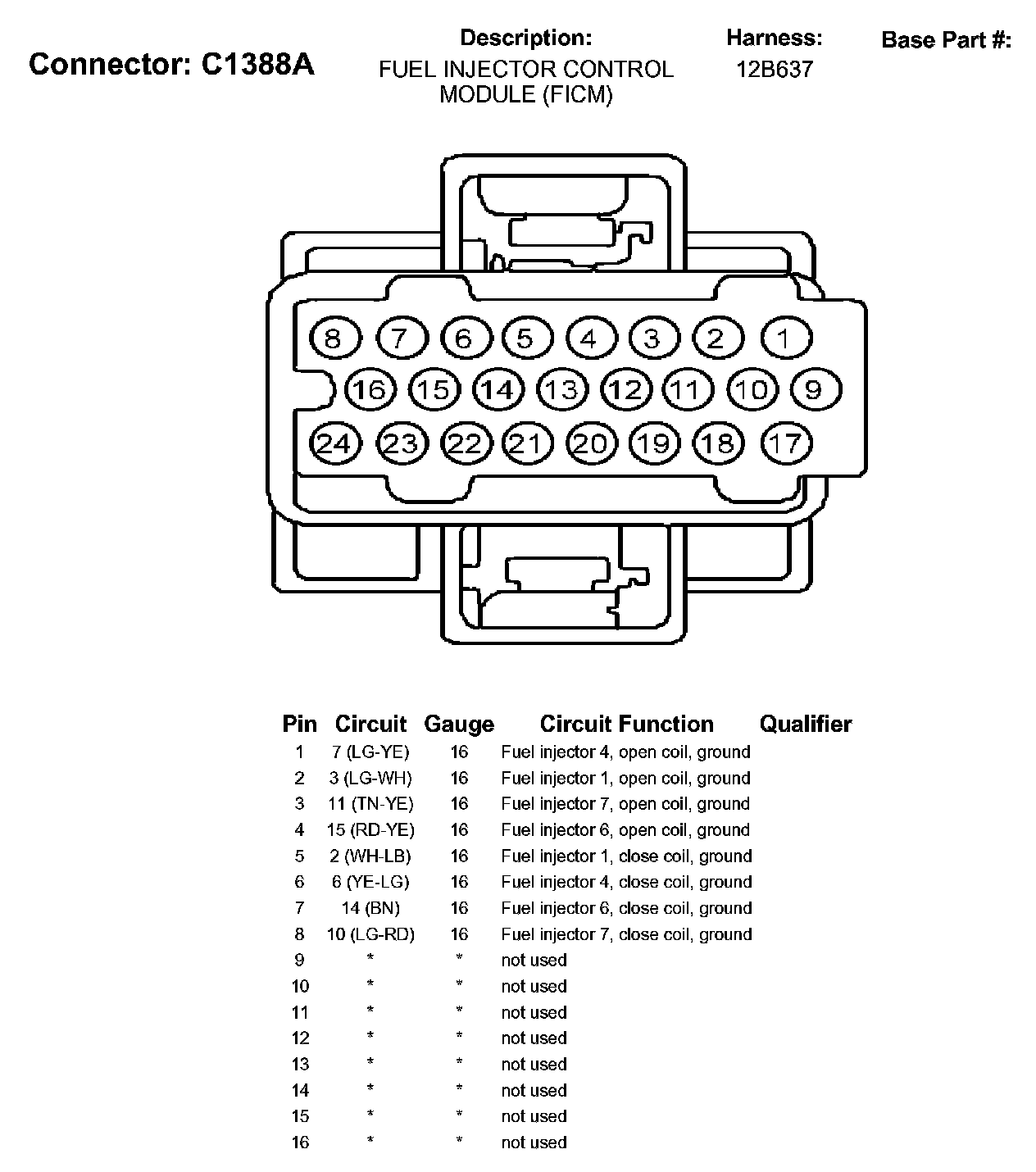

C1388A (Part 1):

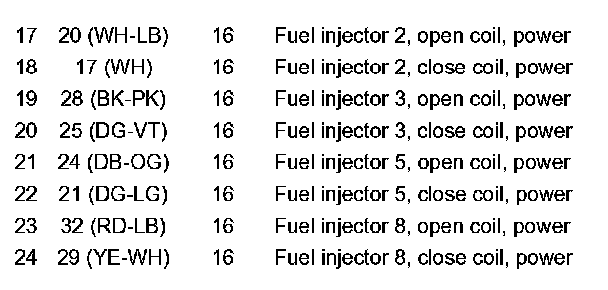

C1388A (Part 2):

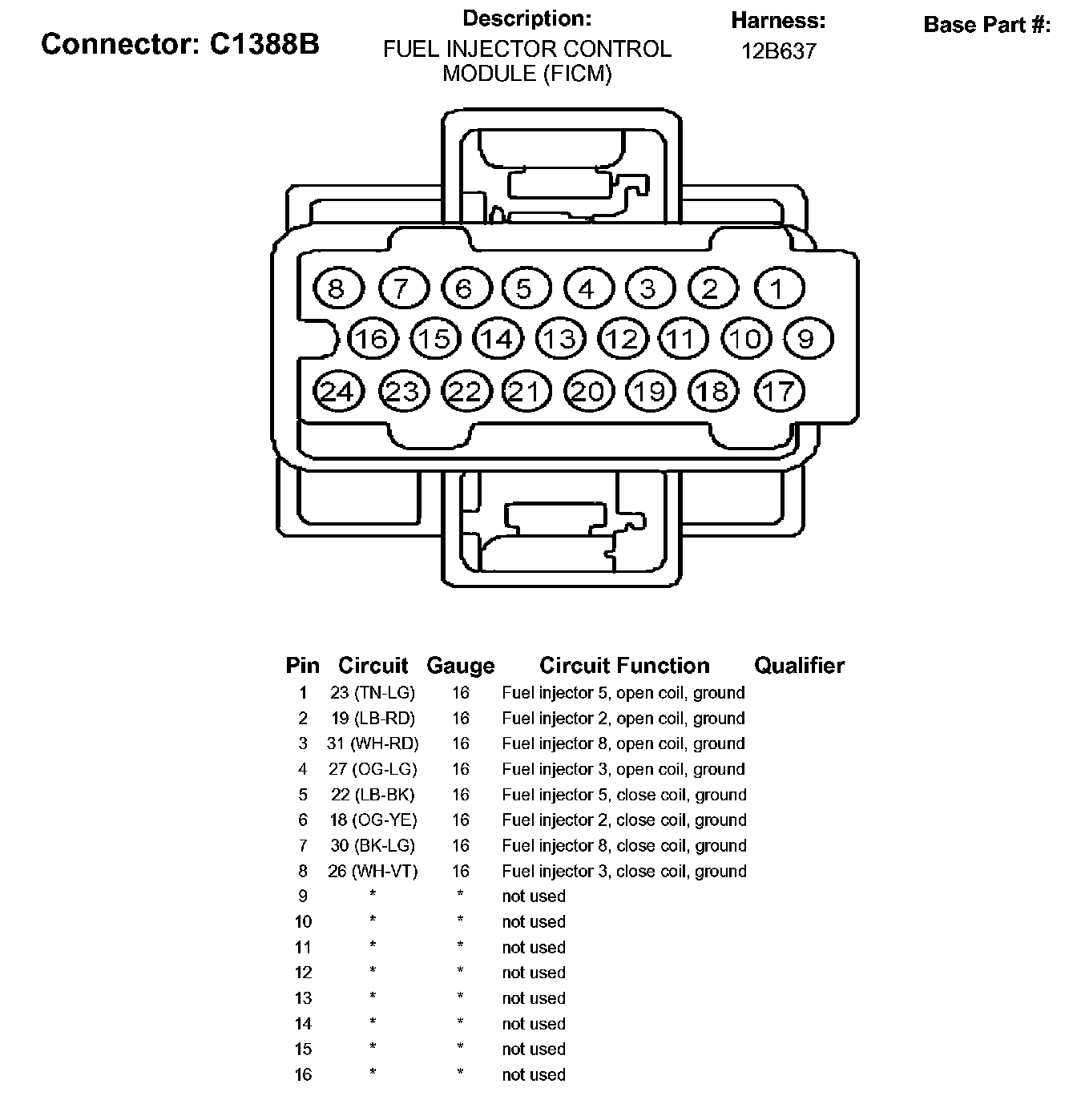

C1388B (Part 1):

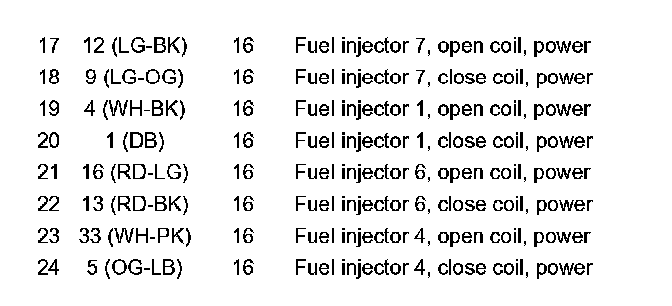

C1388B (Part 2):

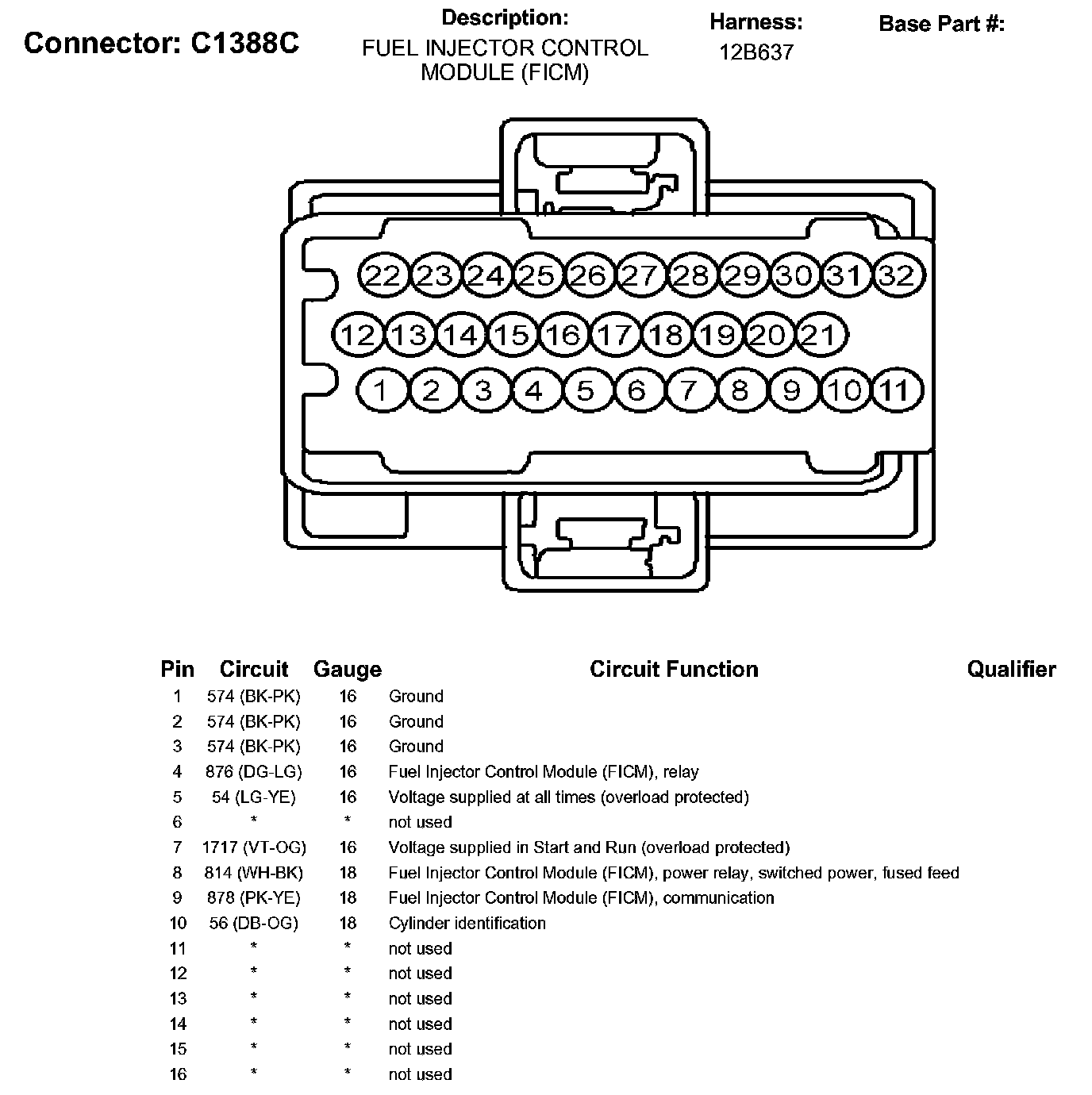

C1388C (Part 1):

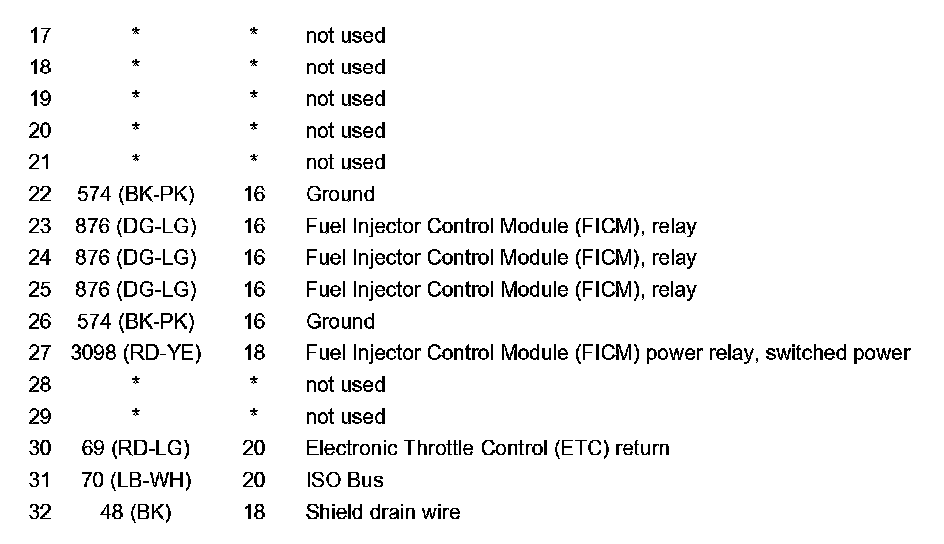

C1388C (Part 2):
