Exhaust System

Exhaust System - Exploded View

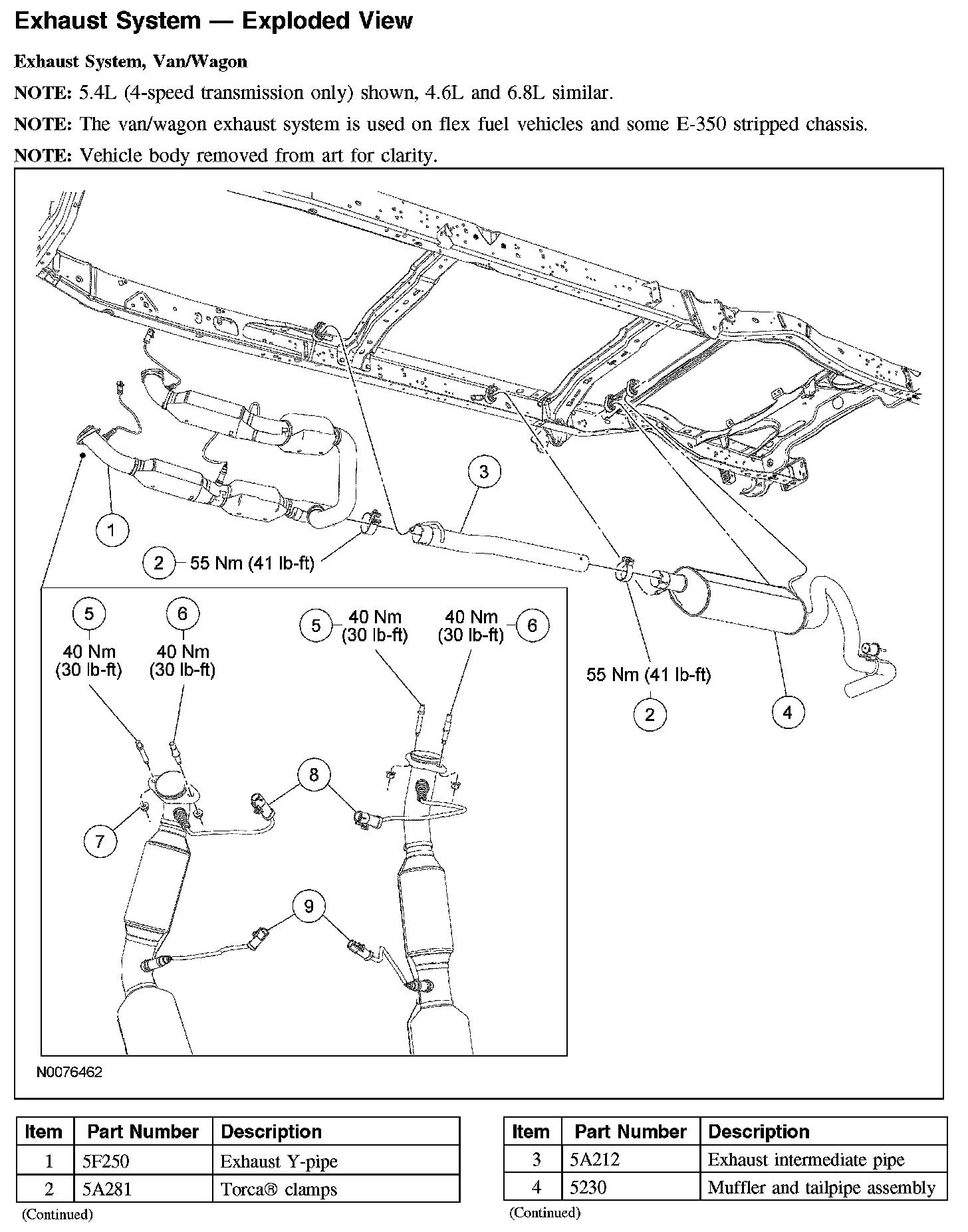

Exhaust System - Exploded View, Van/Wagon (Part 1):

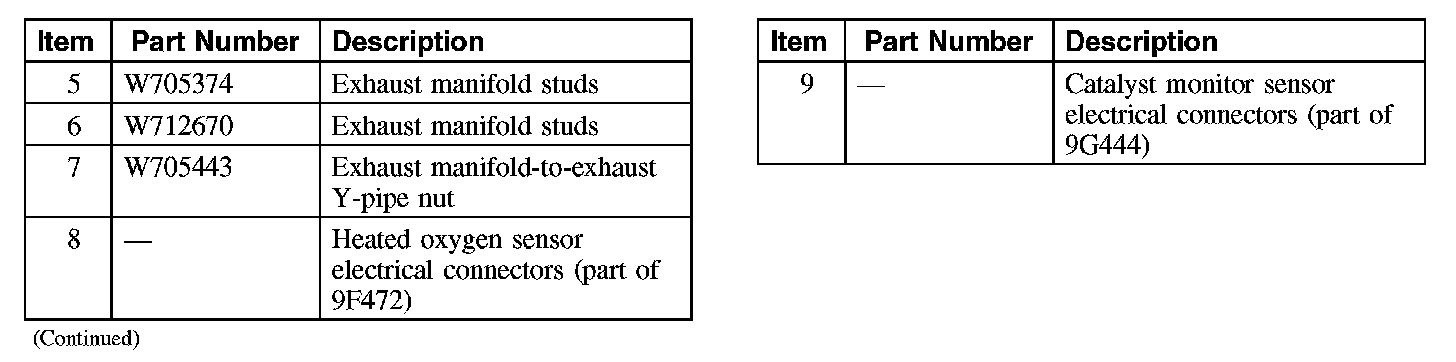

Exhaust System - Exploded View, Van/Wagon (Part 2):

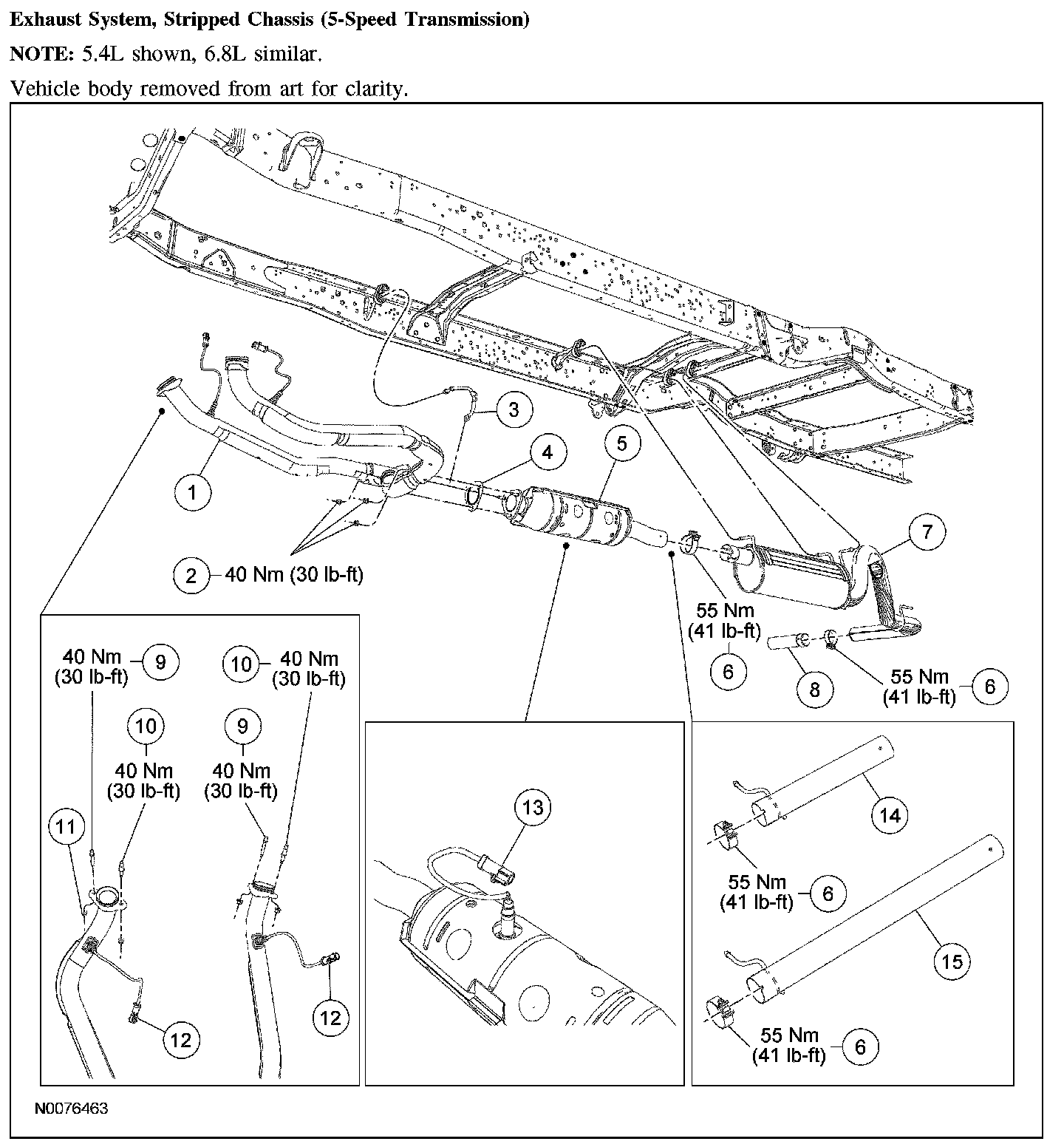

Exhaust System - Exploded View, Stripped Chassis (5-Speed Transmission) (Part 1):

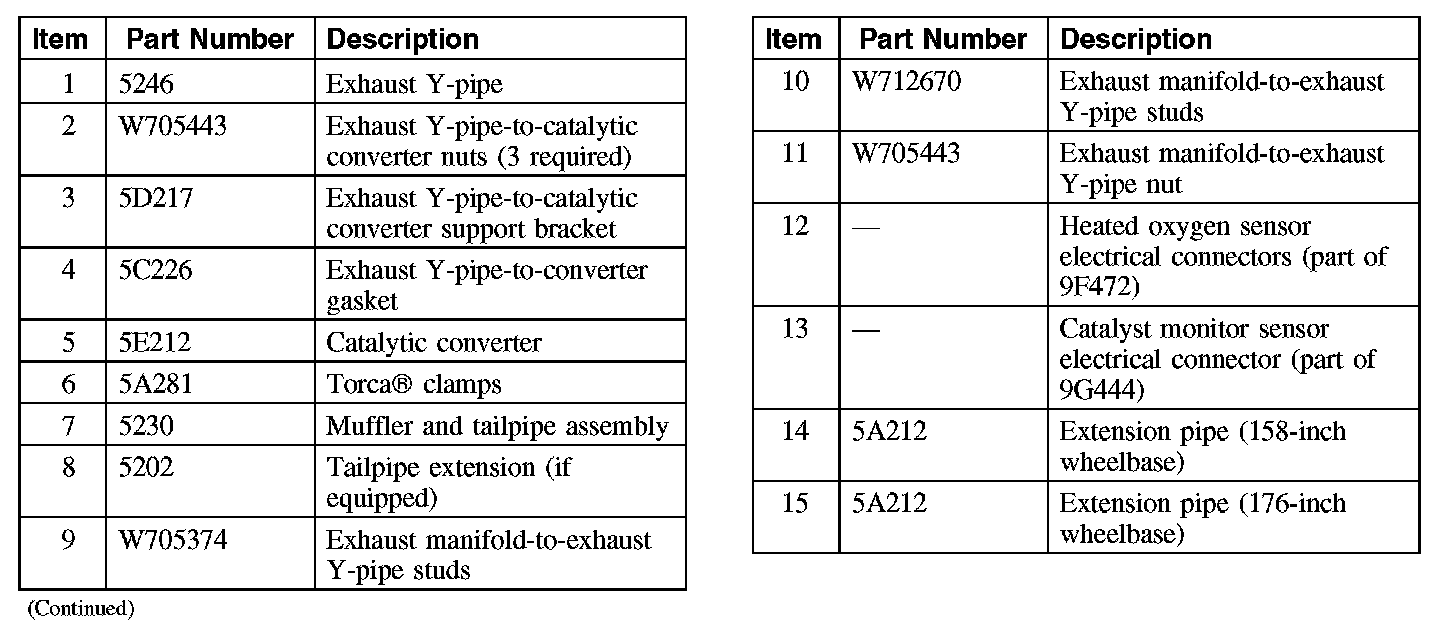

Exhaust System - Exploded View, Stripped Chassis (5-Speed Transmission) (Part 2):
