Steering
Steering
Linkage - Exploded View

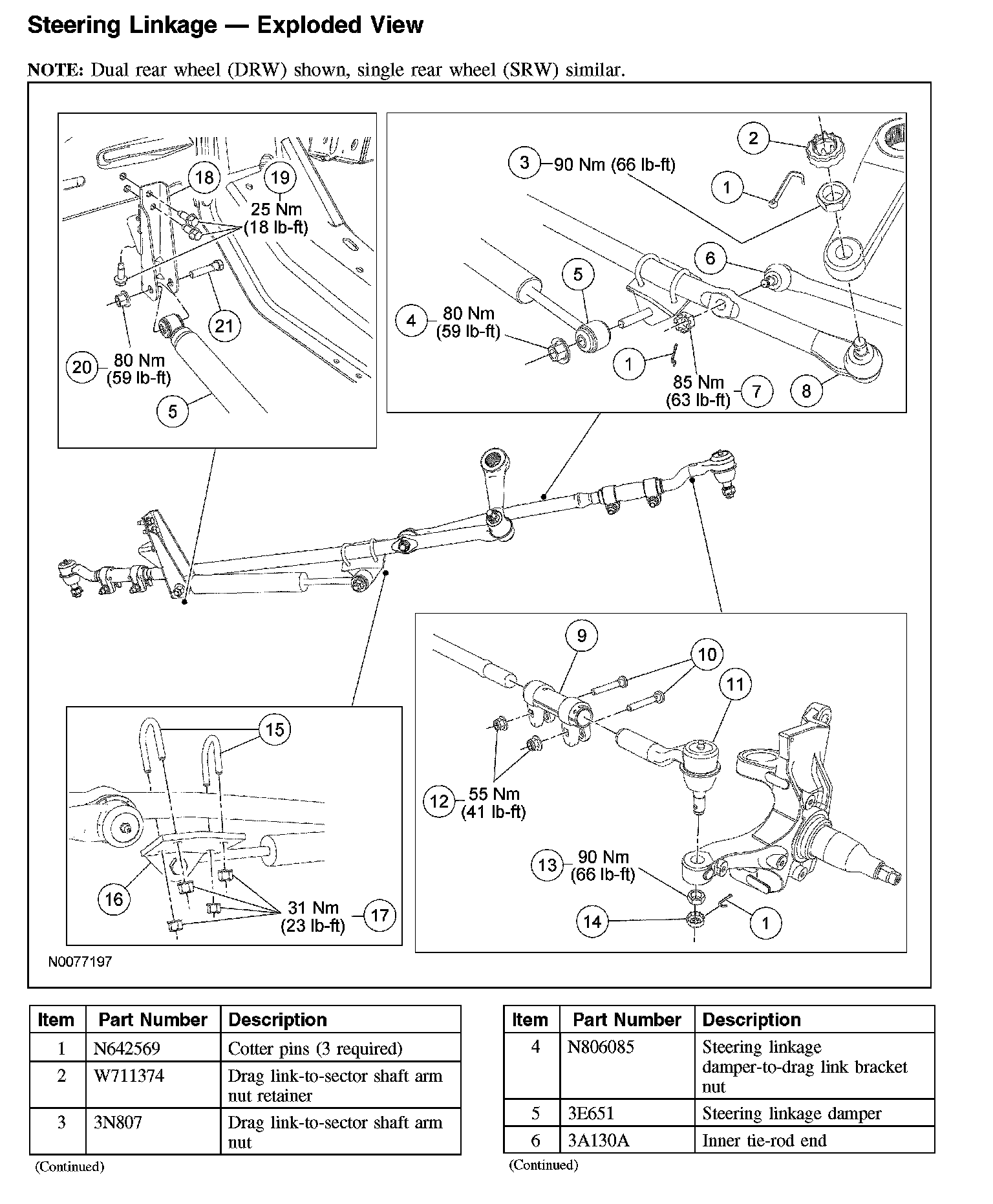

Steering Linkage - Exploded View (Part 1):

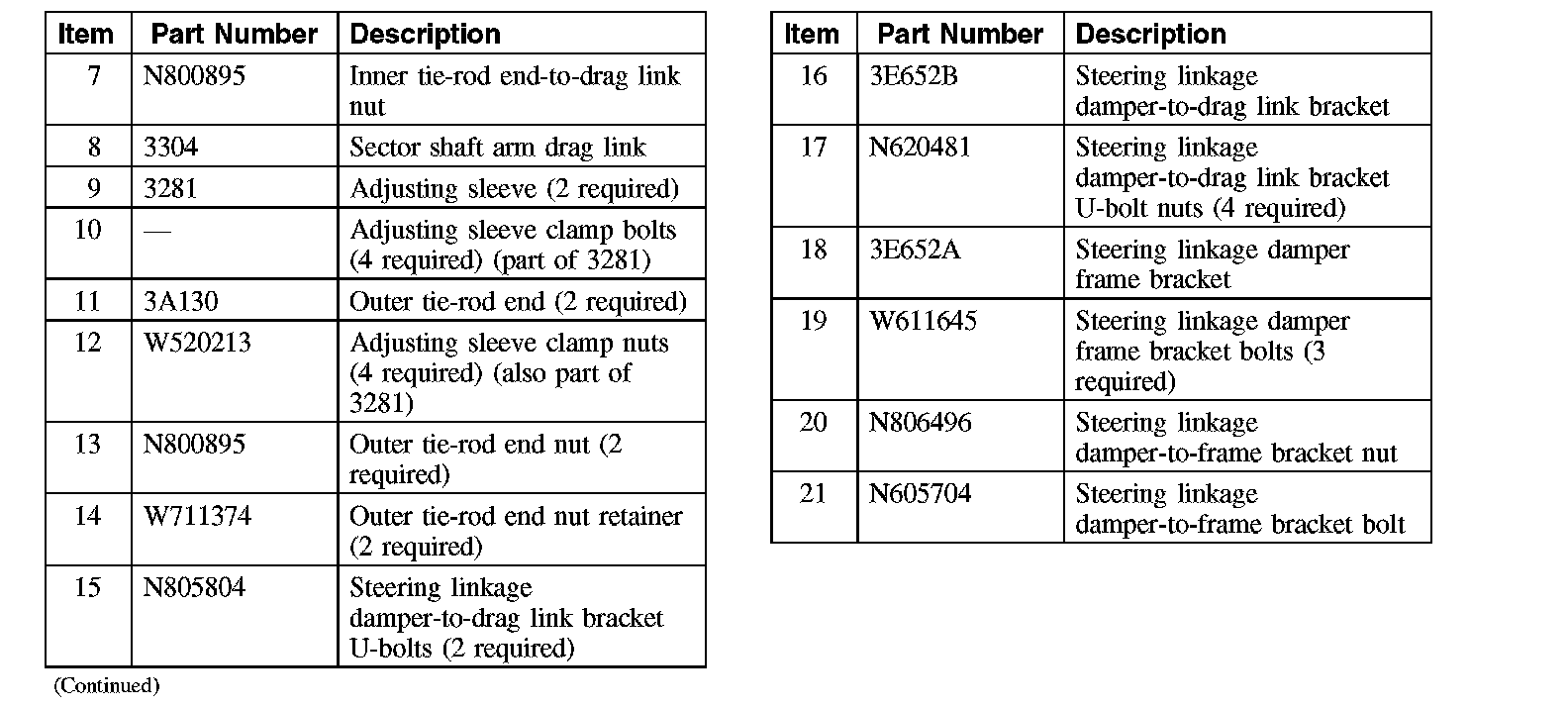

Steering Linkage - Exploded View (Part 2):
