Knock Sensor: Service and Repair

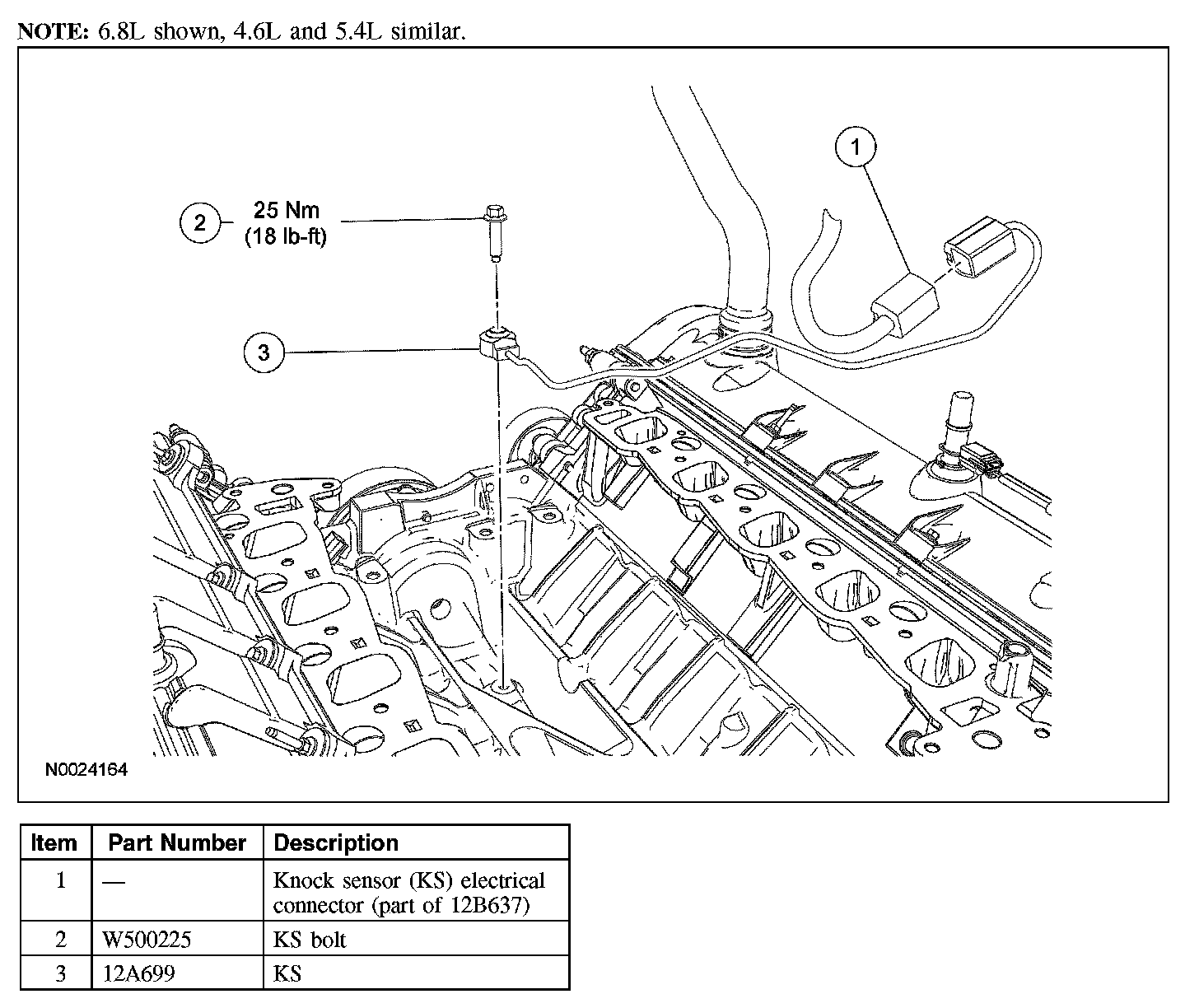

KNOCK SENSOR (KS)







Removal and Installation
1. Remove the intake manifold.
2. Disconnect the knock sensor (KS) electrical connector.
3. Remove the bolt and the KS.
- To install, tighten to 25 Nm (18 lb-ft).

4. To install, reverse the removal procedure.
