Accessory Protocol Interface Module (APIM)

ACCESSORY PROTOCOL INTERFACE MODULE (APIM)







Removal and Installation

NOTE: Accessory protocol interface module (APIM) reprogramming is only necessary if a new module is being installed.

1. Verify the current APIM software and hardware level.

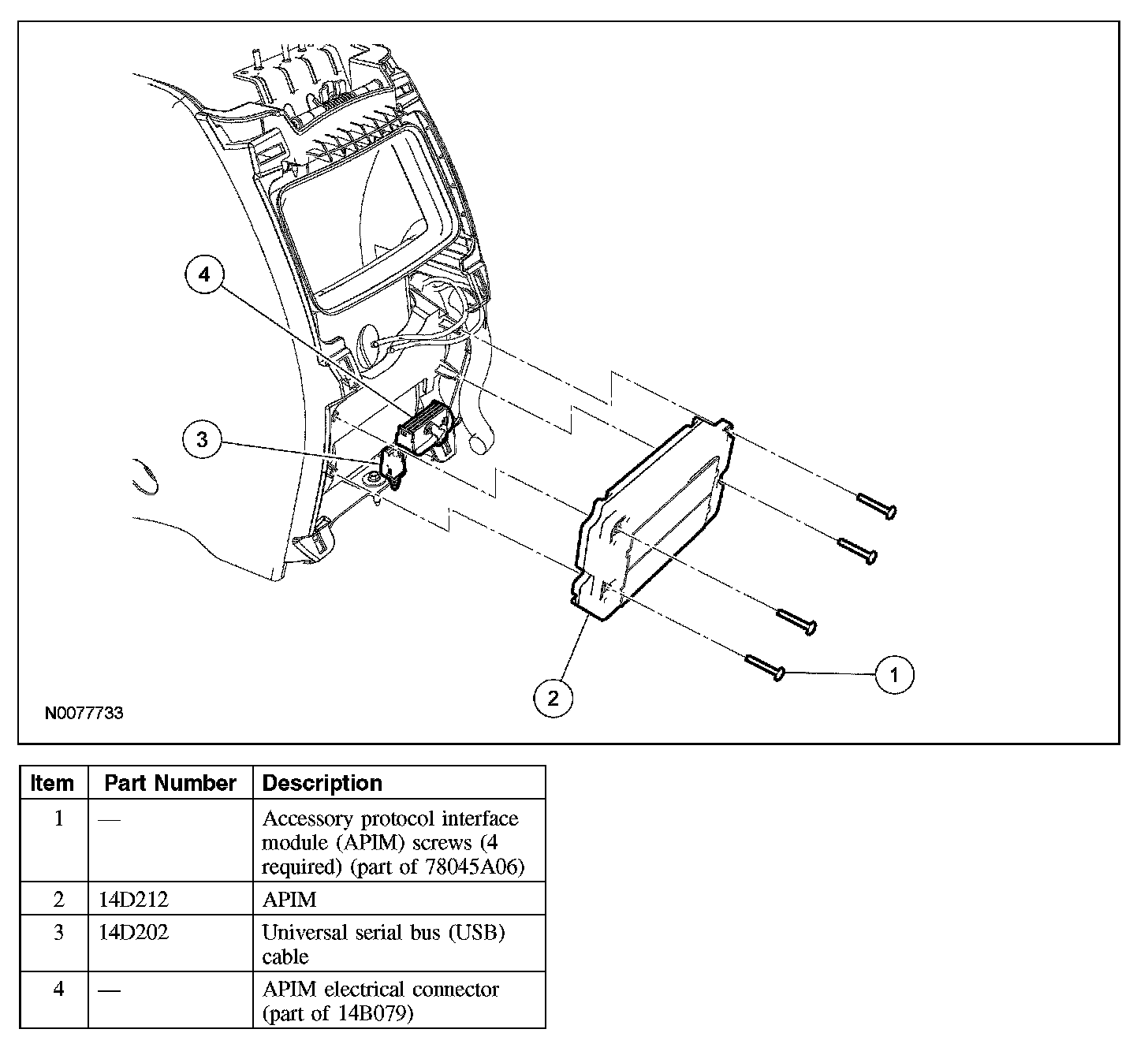

2. Remove the floor console rear trim panel by pulling straight back to disengage the clips.
3. Disconnect the universal serial bus (USB) cable and the electrical connector.
4. Remove the 4 screws and the APIM.
5. To install, reverse the removal procedure.
- Reprogram the APIM.
