Audio Digital Signal Processing (DSP) Module

AUDIO DIGITAL SIGNAL PROCESSING (DSP) MODULE

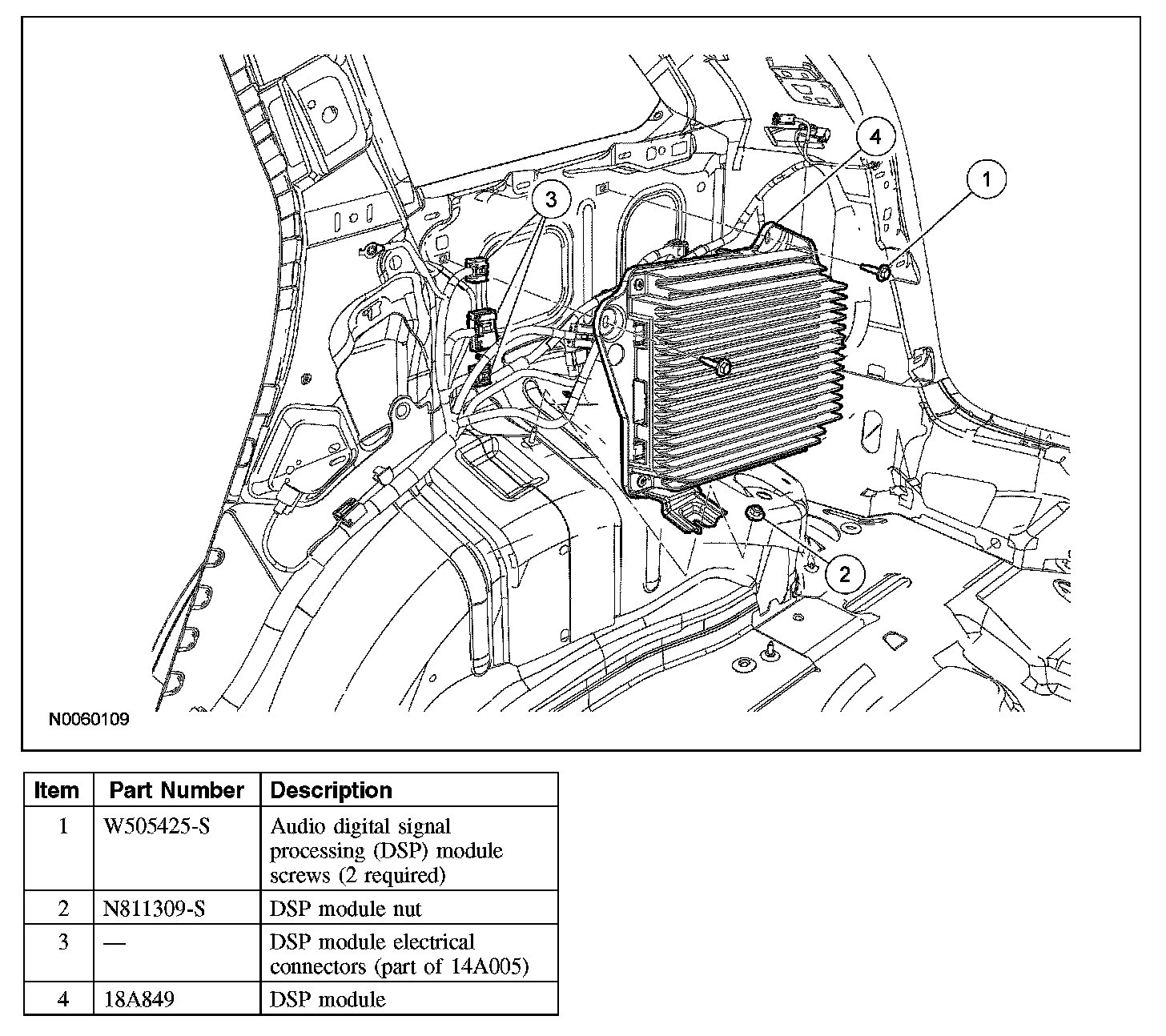

Removal and Installation
1. Remove the subwoofer speaker.
2. Disconnect the audio digital signal processing (DSP) module electrical connectors.
3. Remove the 2 screws, the nut, and the DSP module.
4. To install, reverse the removal procedure.
