Heated Seat Module - Rear Seat

HEATED SEAT MODULE - REAR SEAT

Exploded View

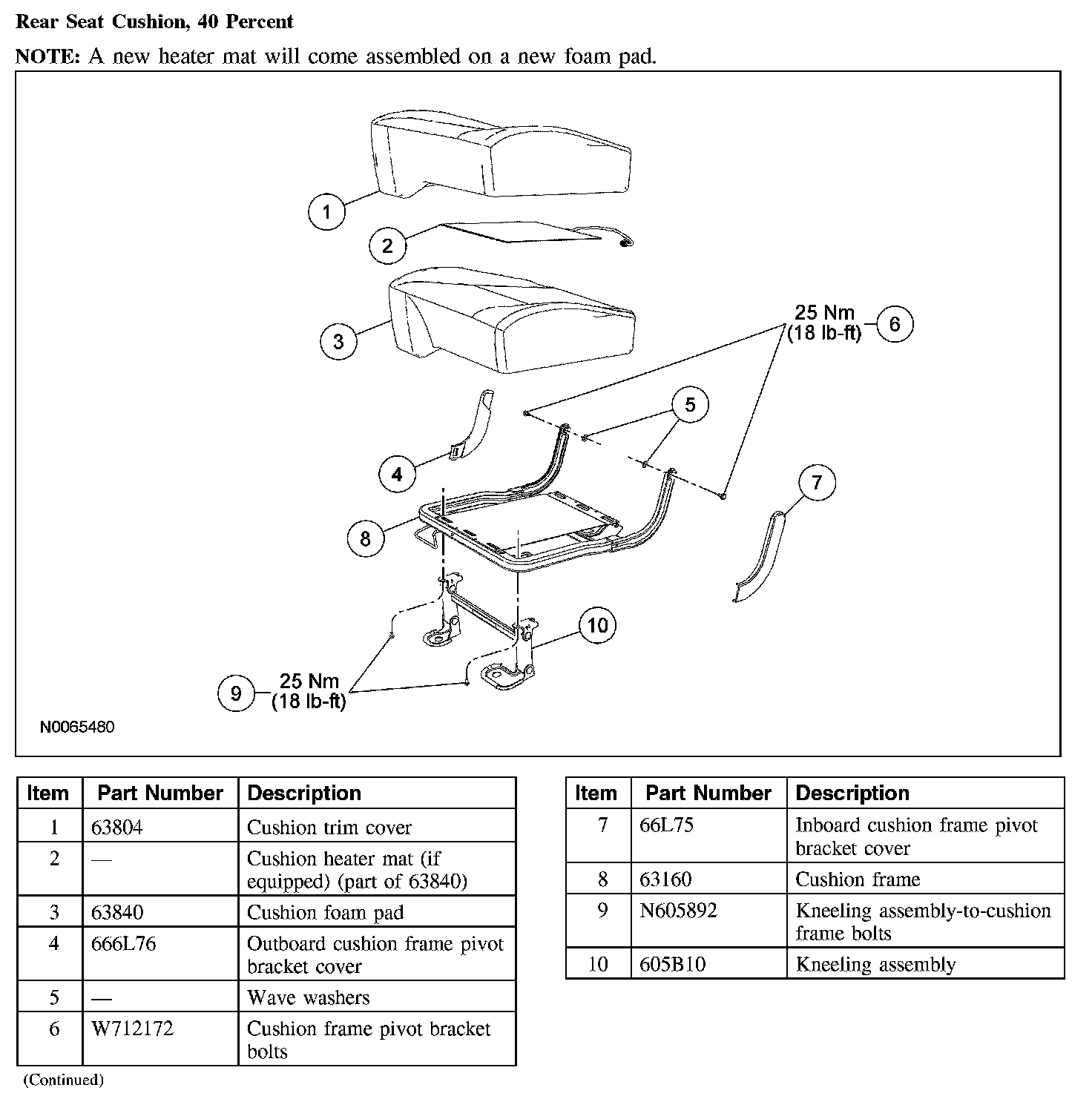

Rear Seat Cushion, 40 Percent:

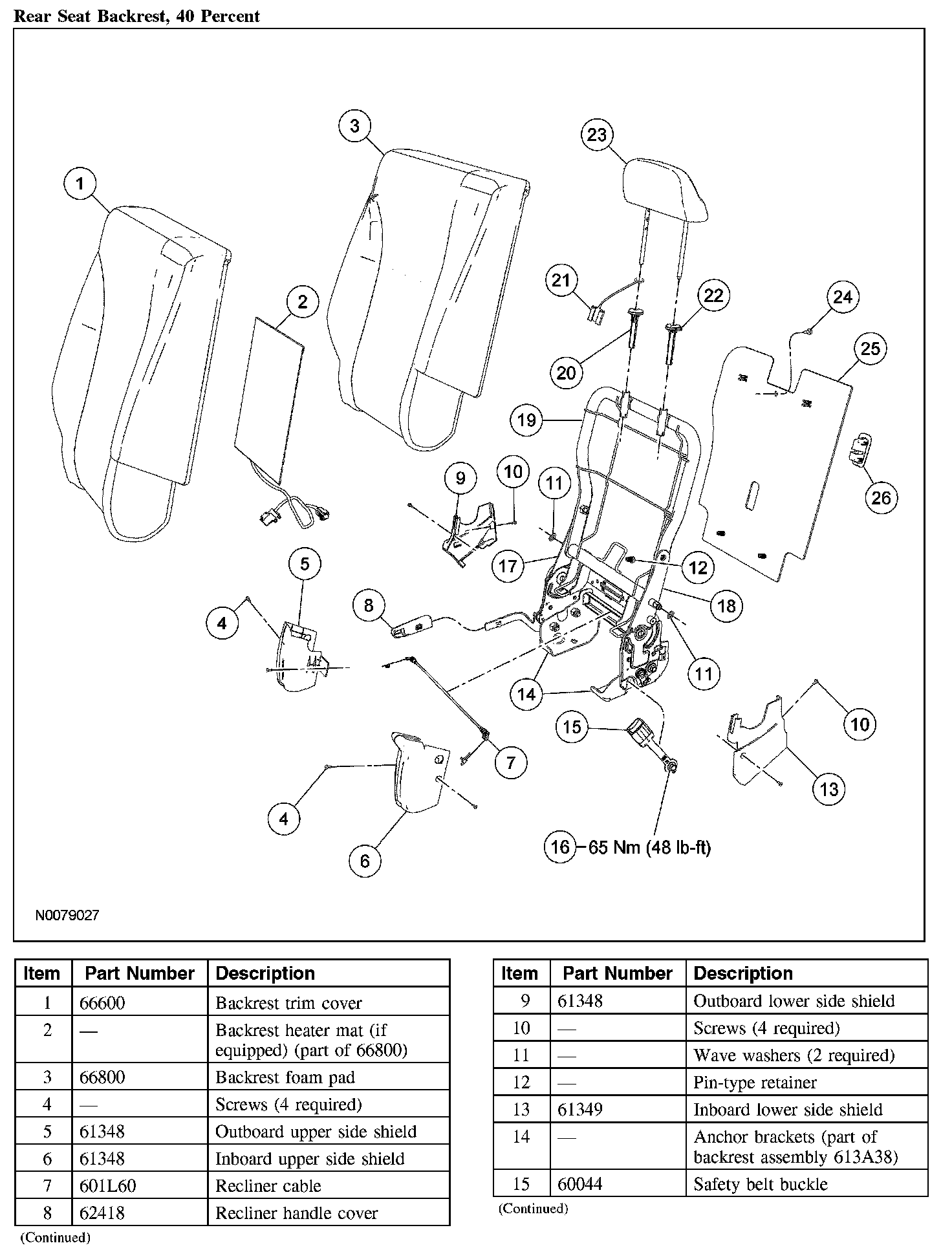

Rear Seat Backrest, 40 Percent (Part 1):

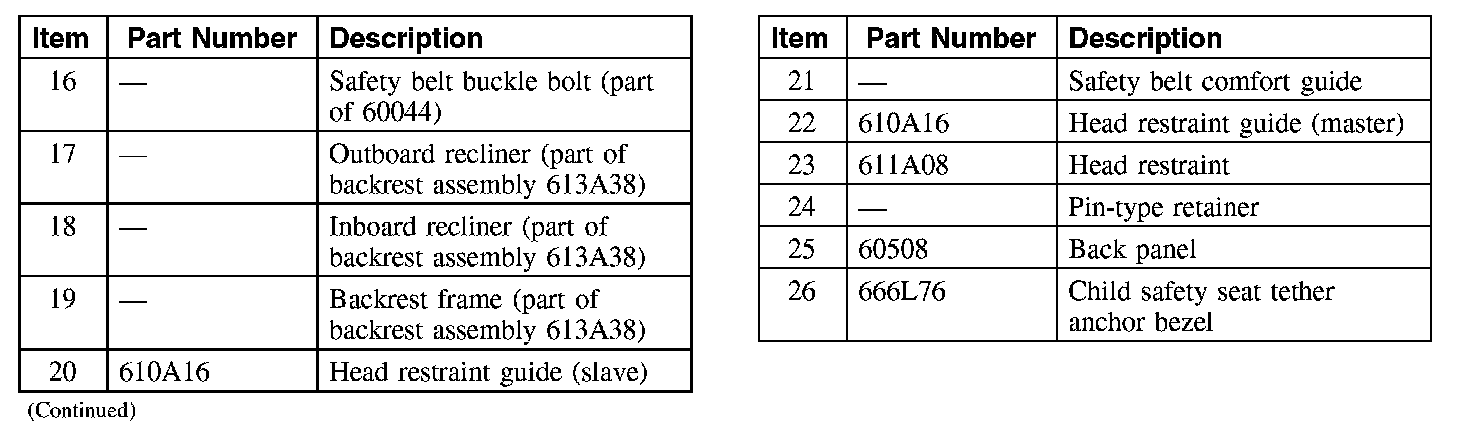

Rear Seat Backrest, 40 Percent (Part 2):

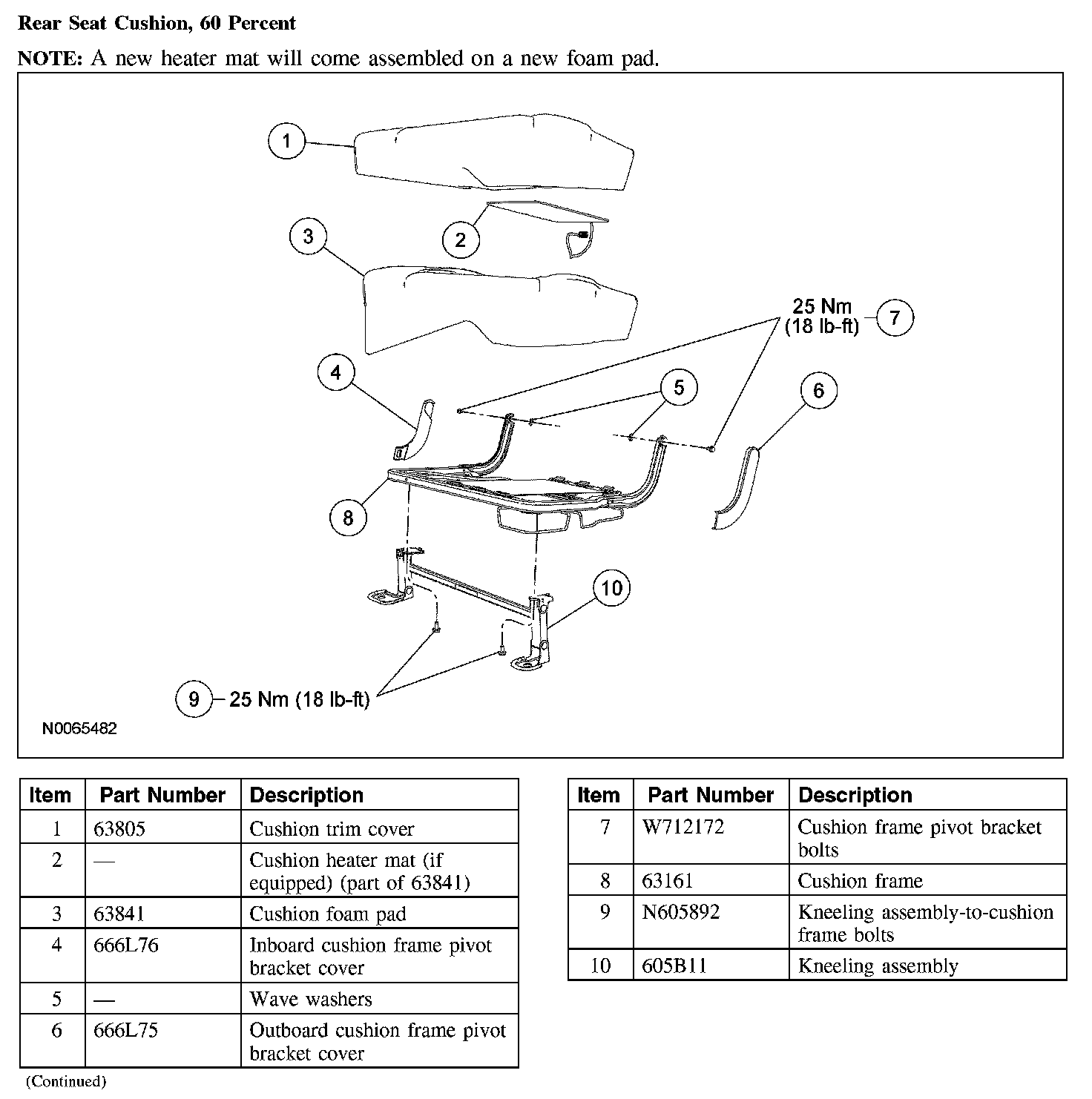

Rear Seat Cushion, 60 Percent:

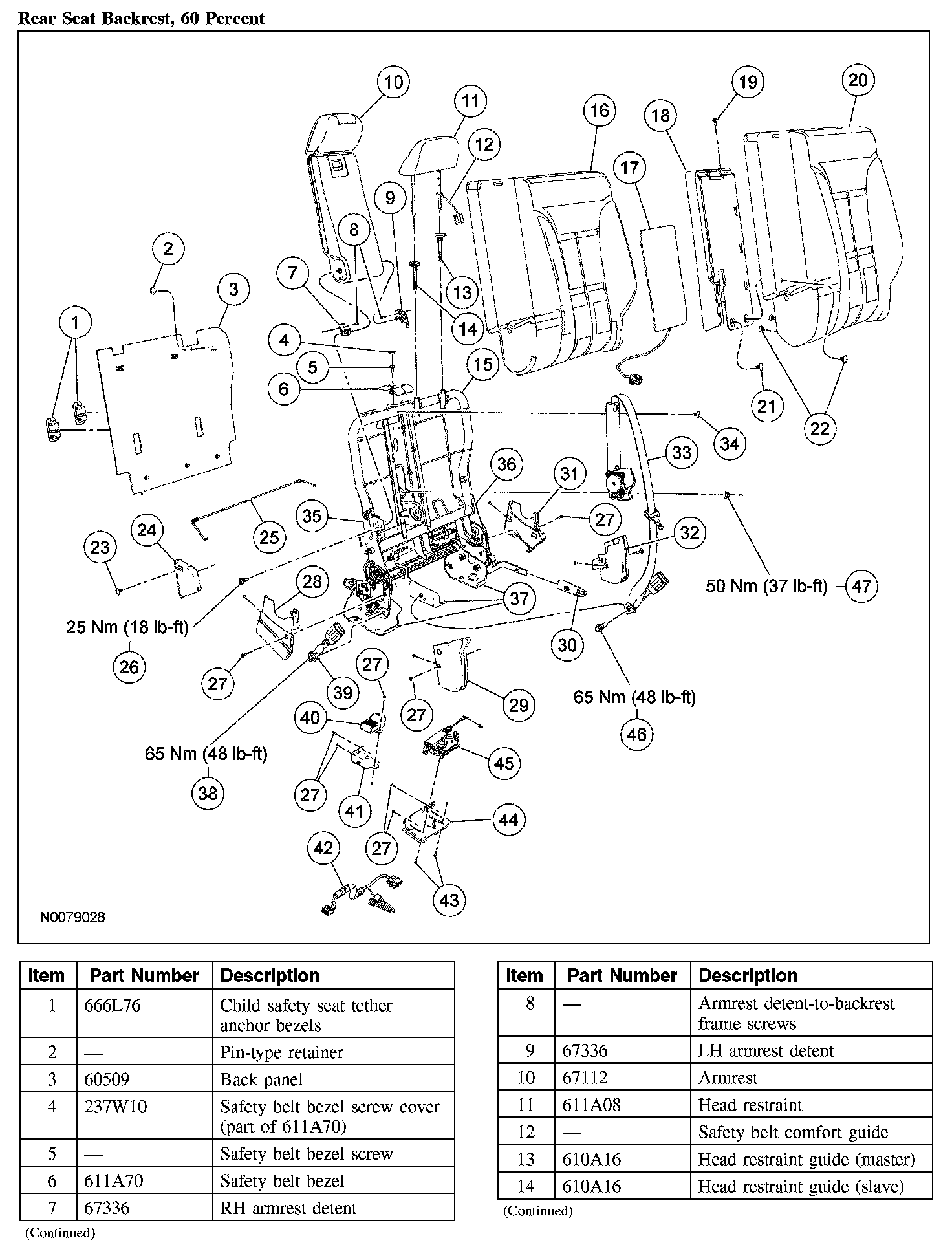

Rear Seat Backrest, 60 Percent (Part 1):

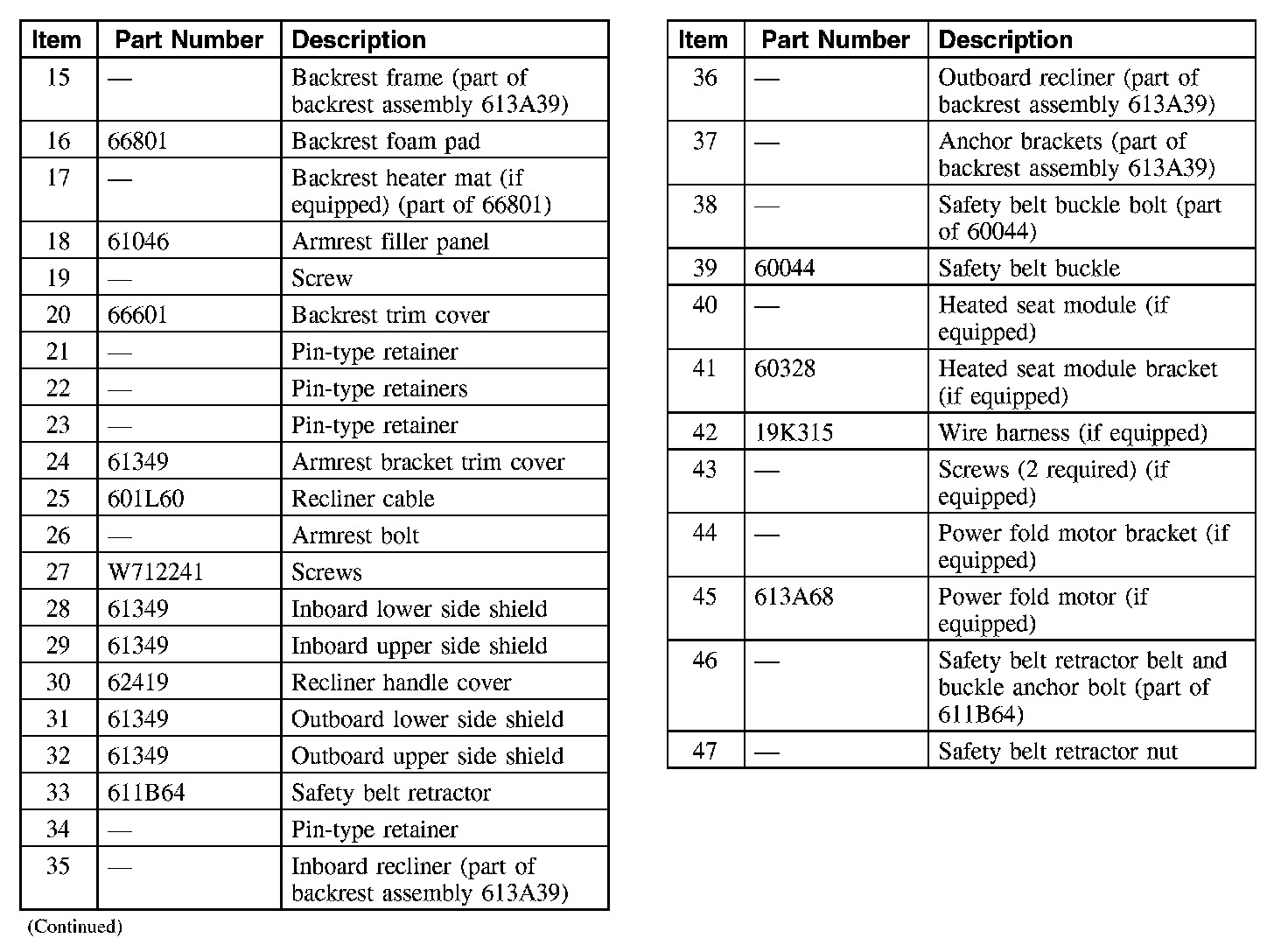

Rear Seat Backrest, 60 Percent (Part 2):

Removal and Installation
1. Remove the second row 60 percent seat front riser-to-floor nut and bolt.
- To install, tighten to 70 Nm (52 lb-ft).

2. Pivot the front of the 60 percent seat cushion upward.
3. Remove the screw, disconnect the electrical connector and remove the heated seat module.
4. To install, reverse the removal procedure.
