Steering Angle Sensor Module DTC Chart
Steering Angle Sensor
Module DTC Chart

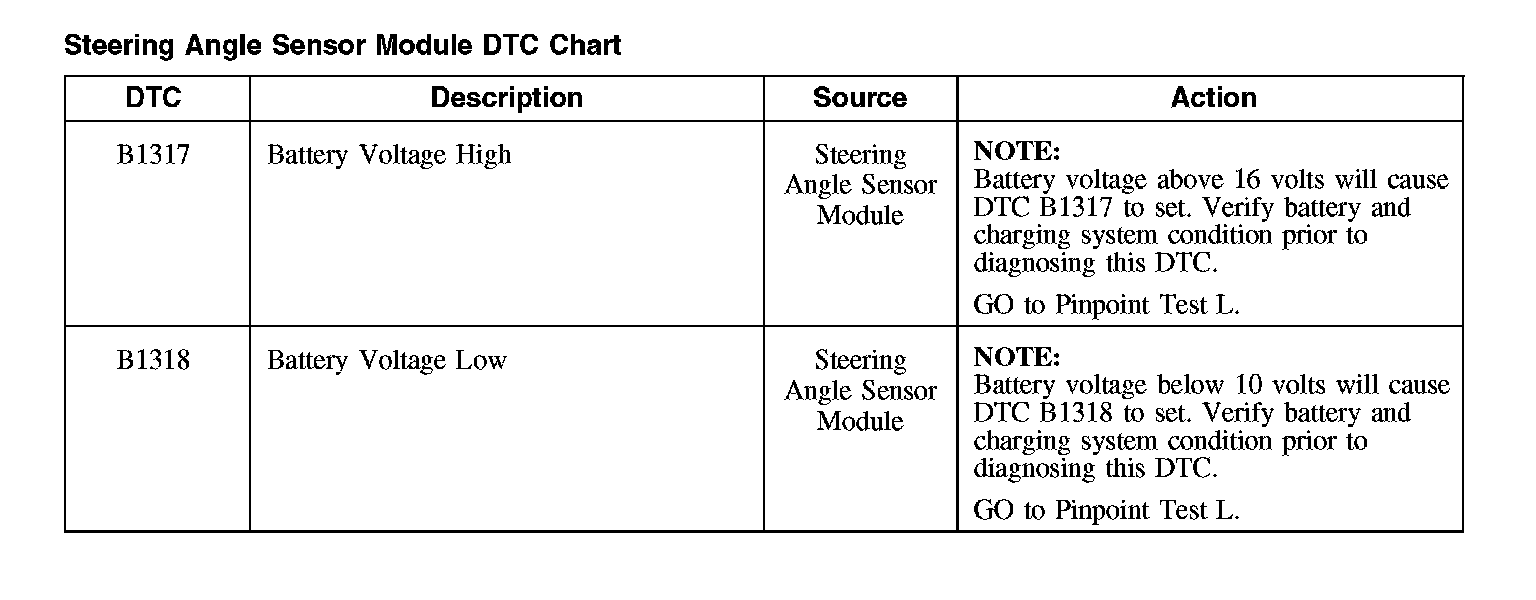

B1317-B1318:

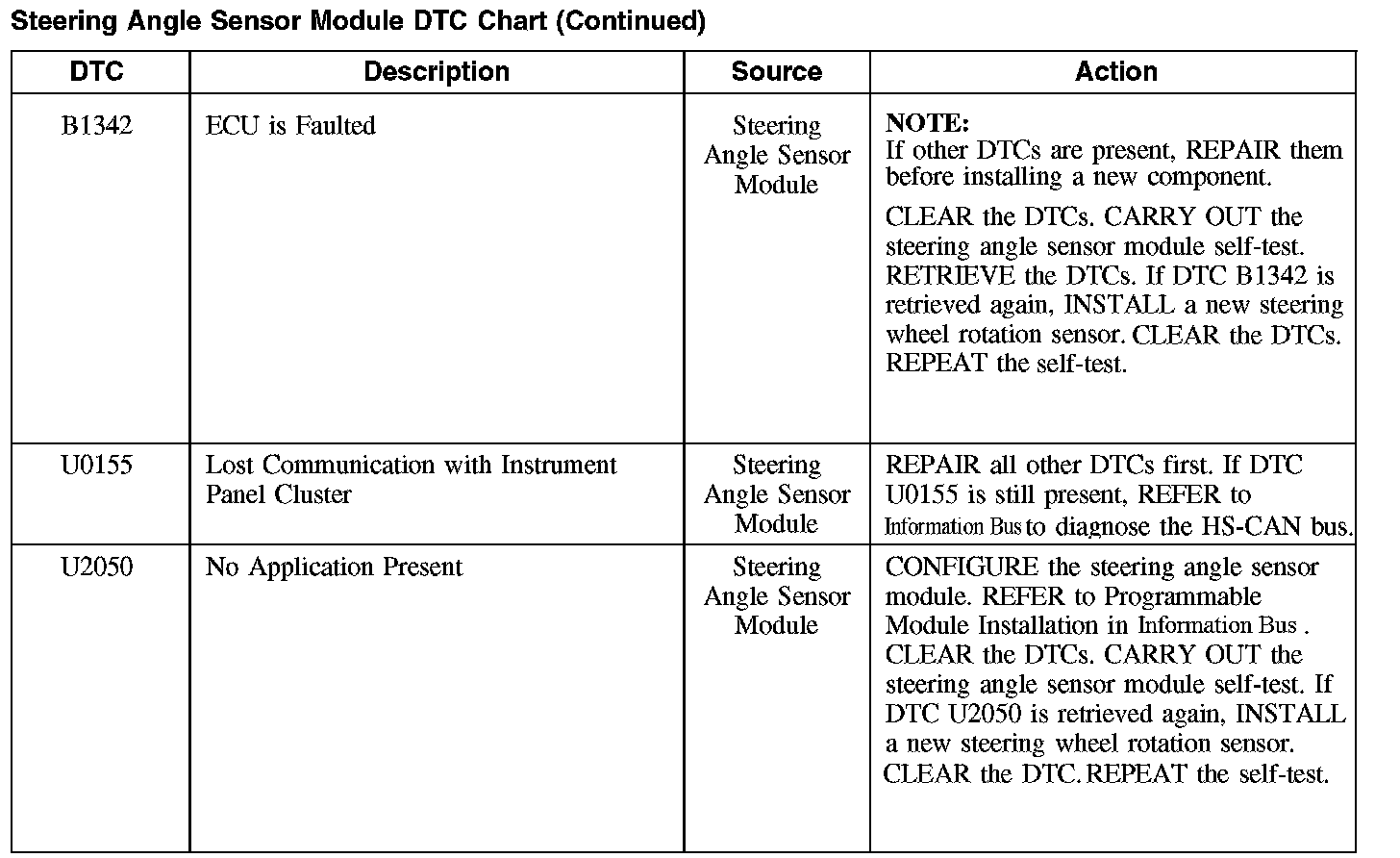

B1342 / U0155-U2050:
