Connectors

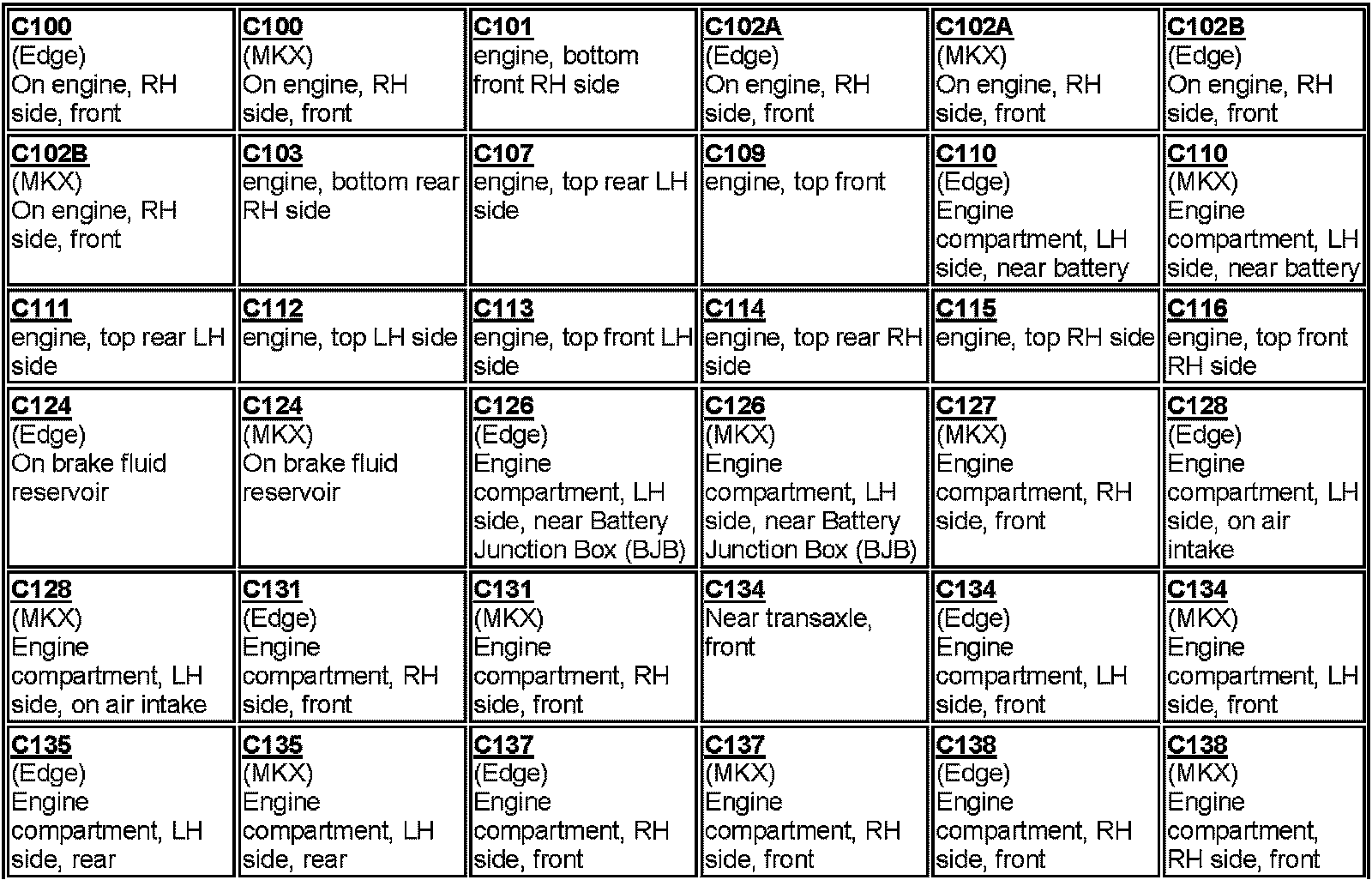

C100-C138:

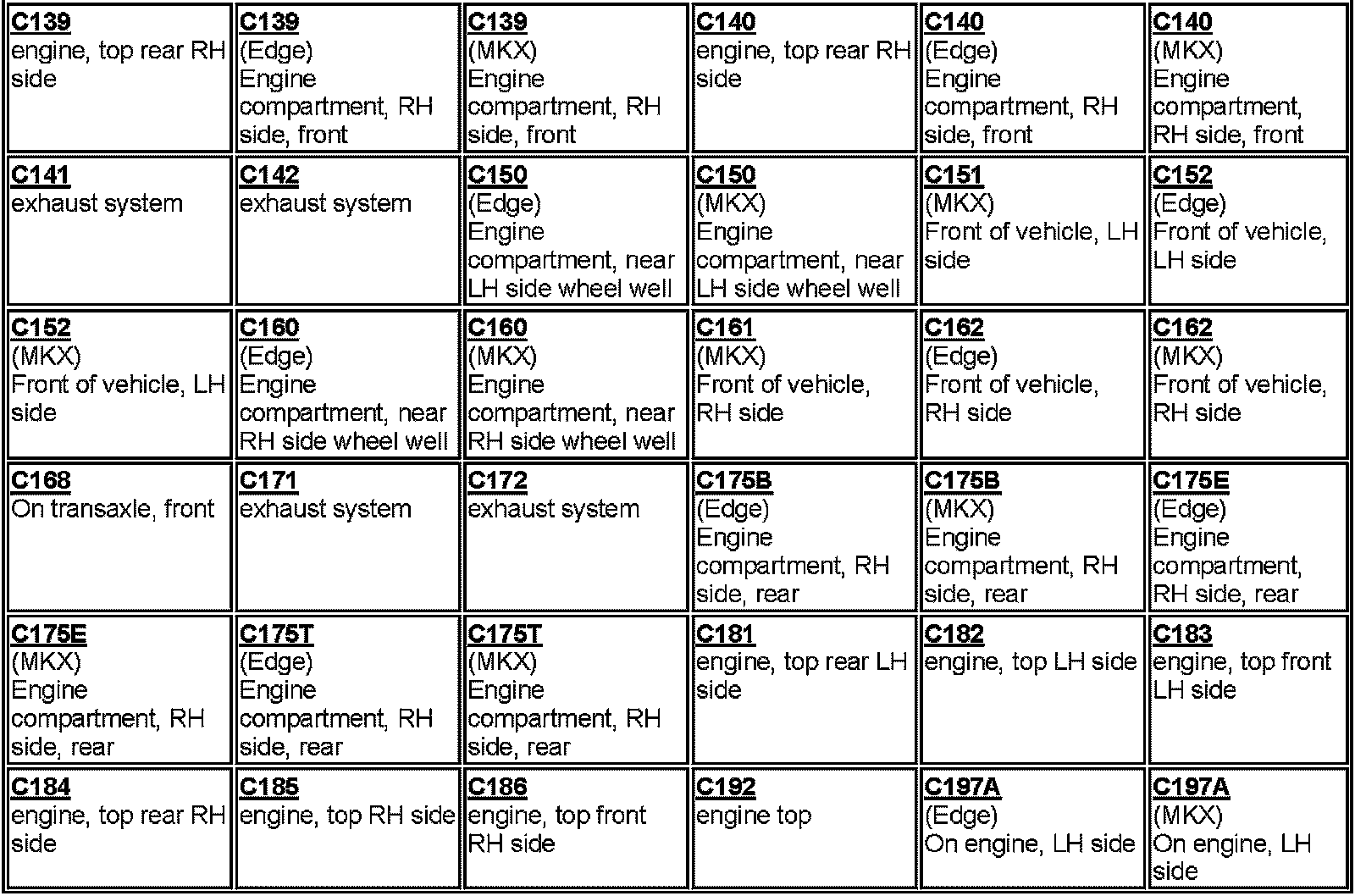

C139-C197A:

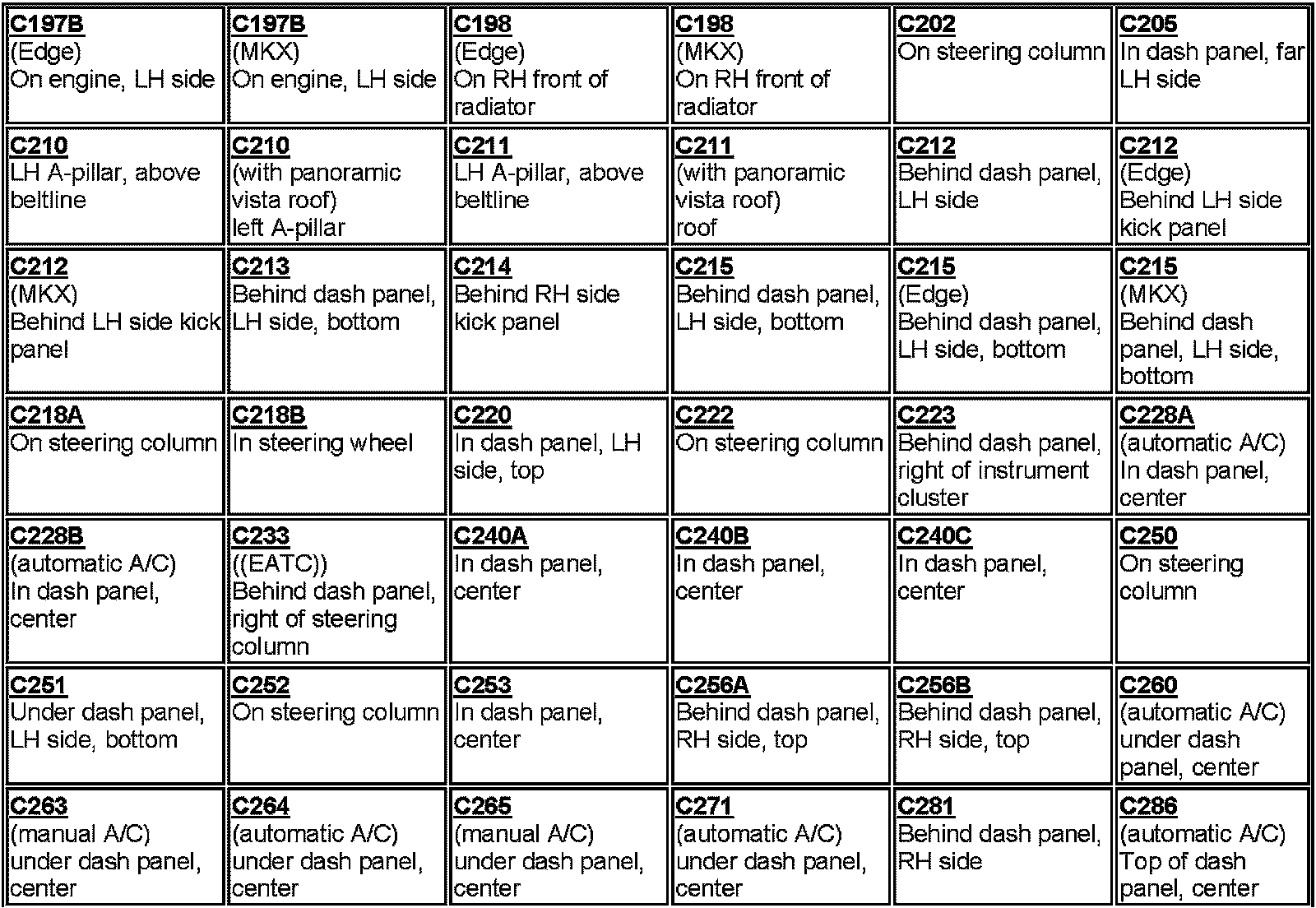

C197B-C286:

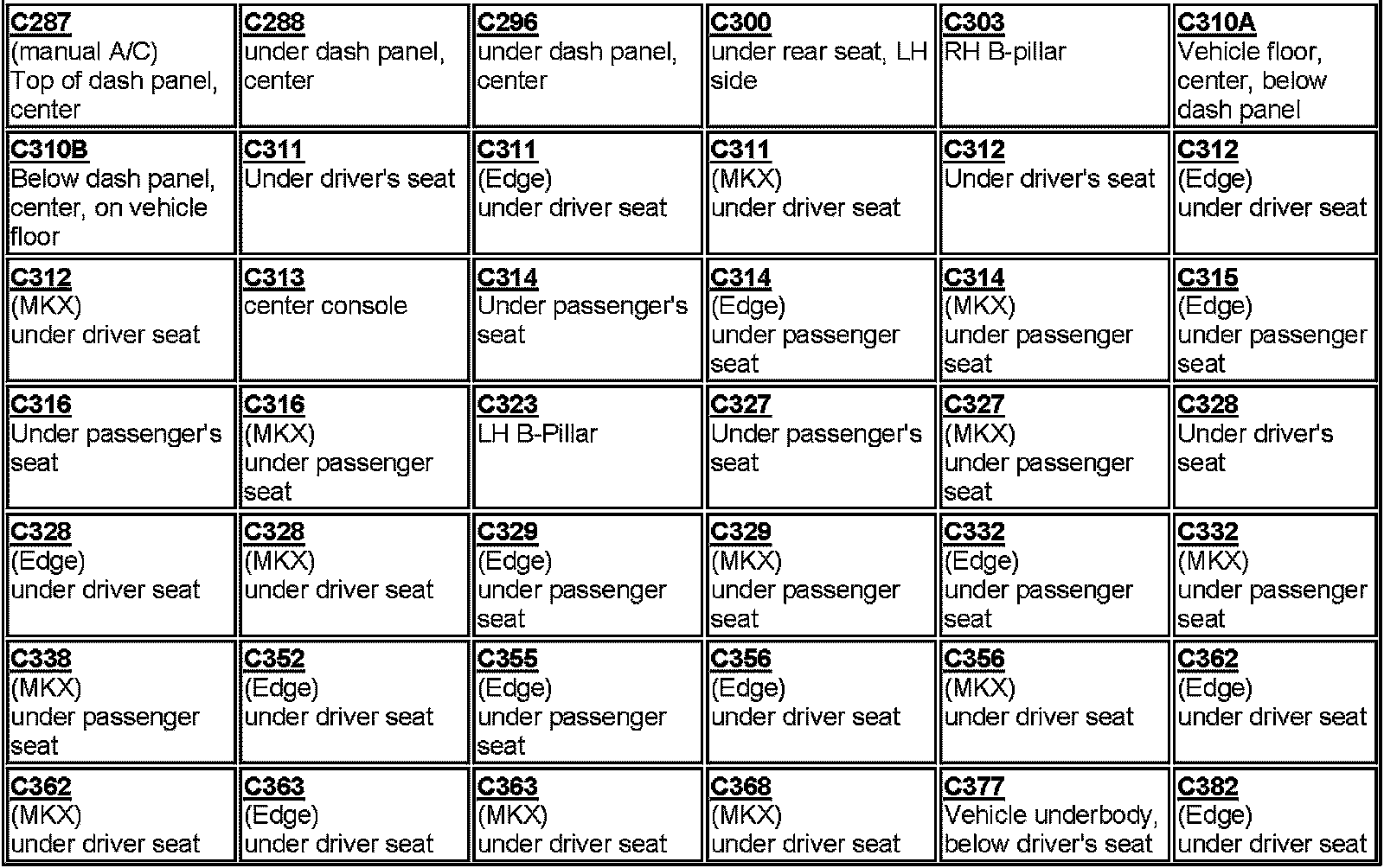

C287-C382:

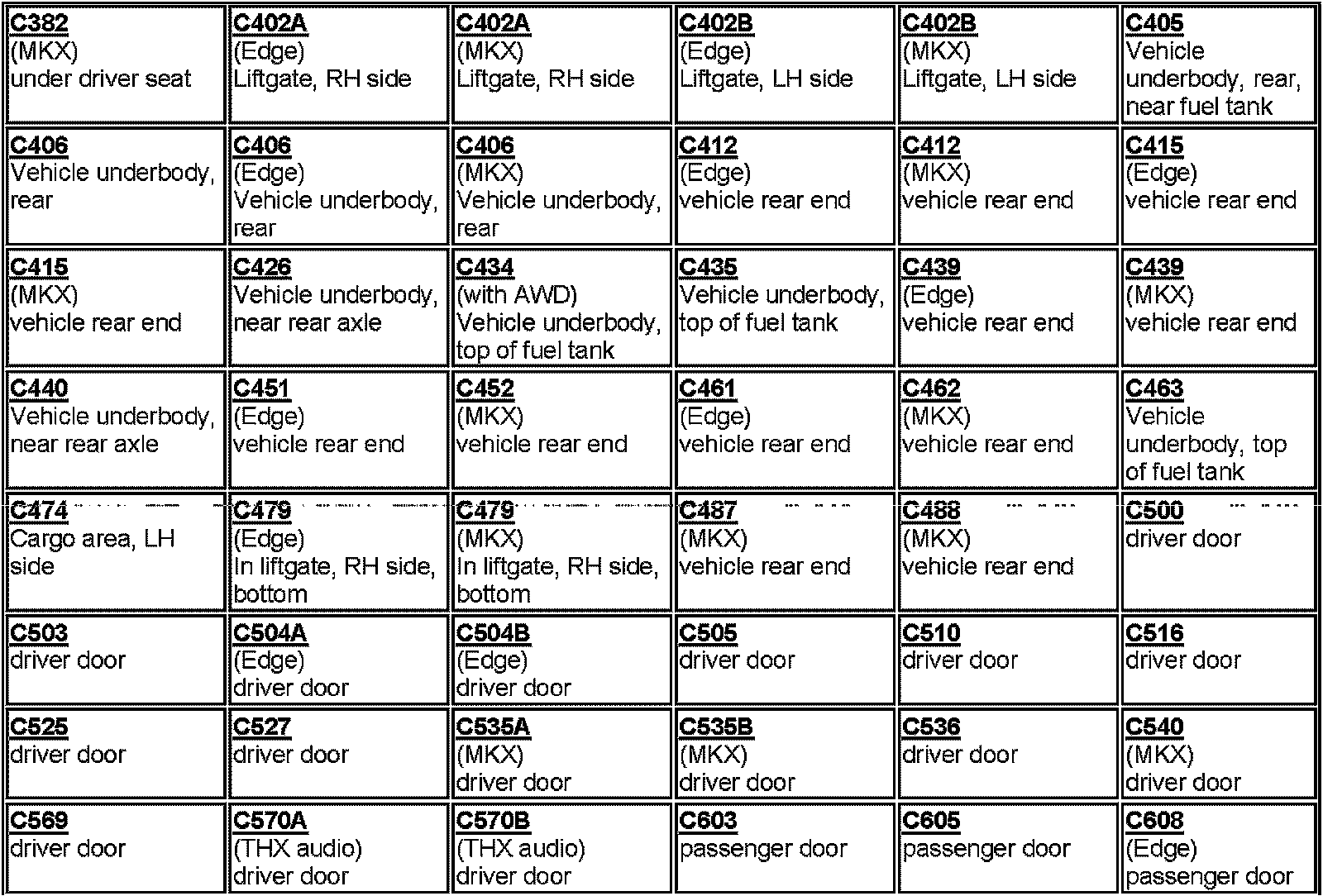

C382-C608:

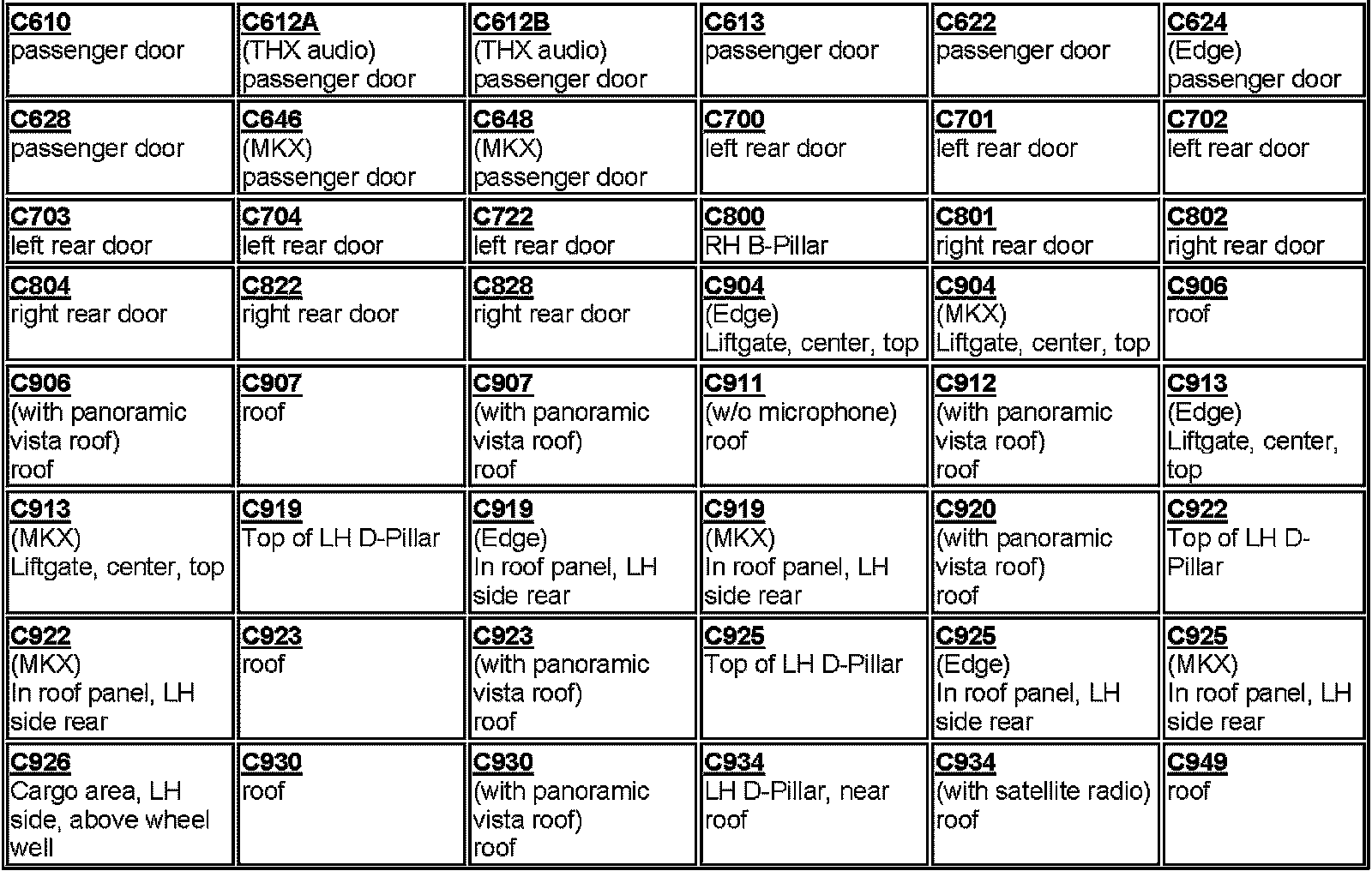

C610-C949:

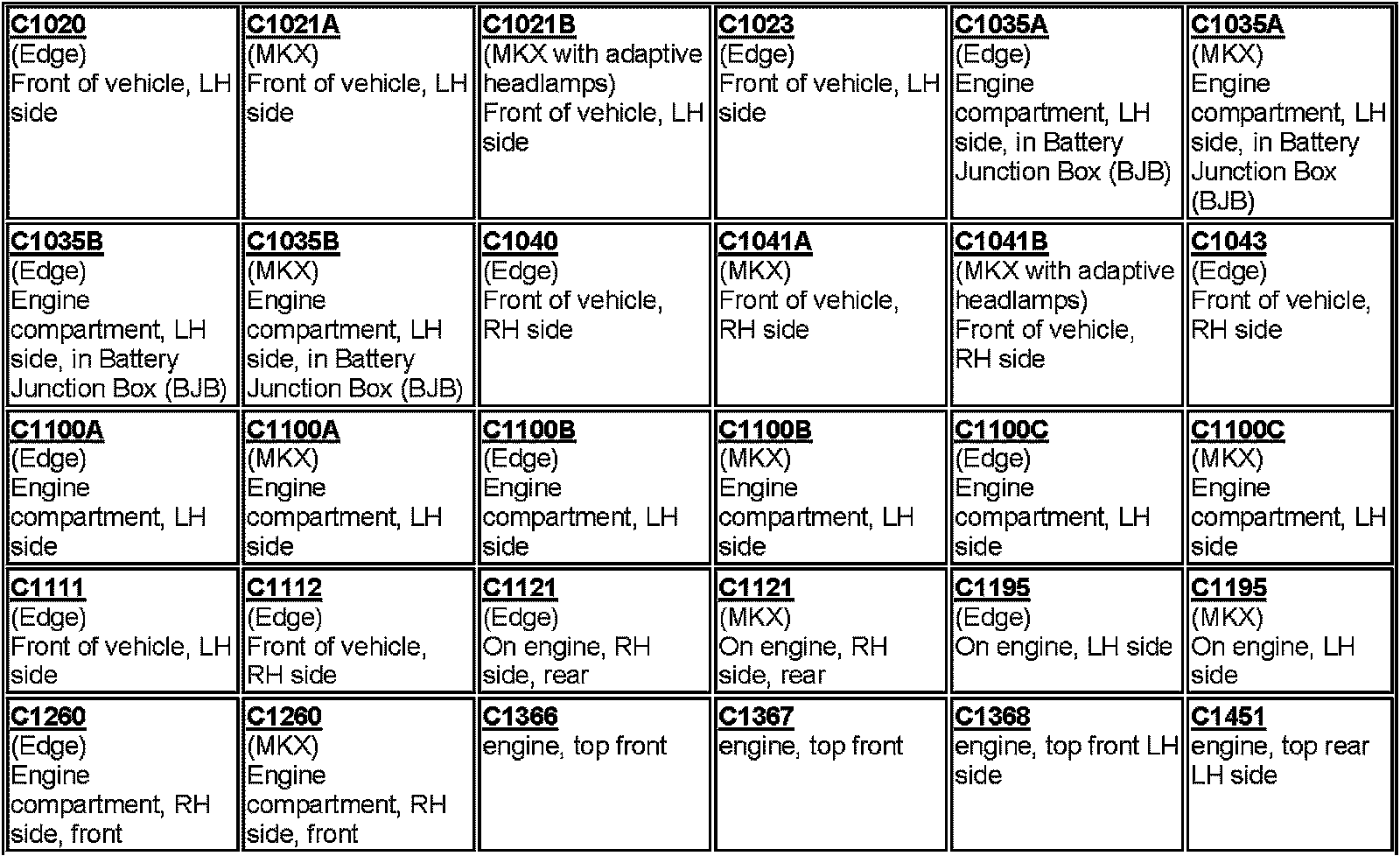

C1020-C1451:

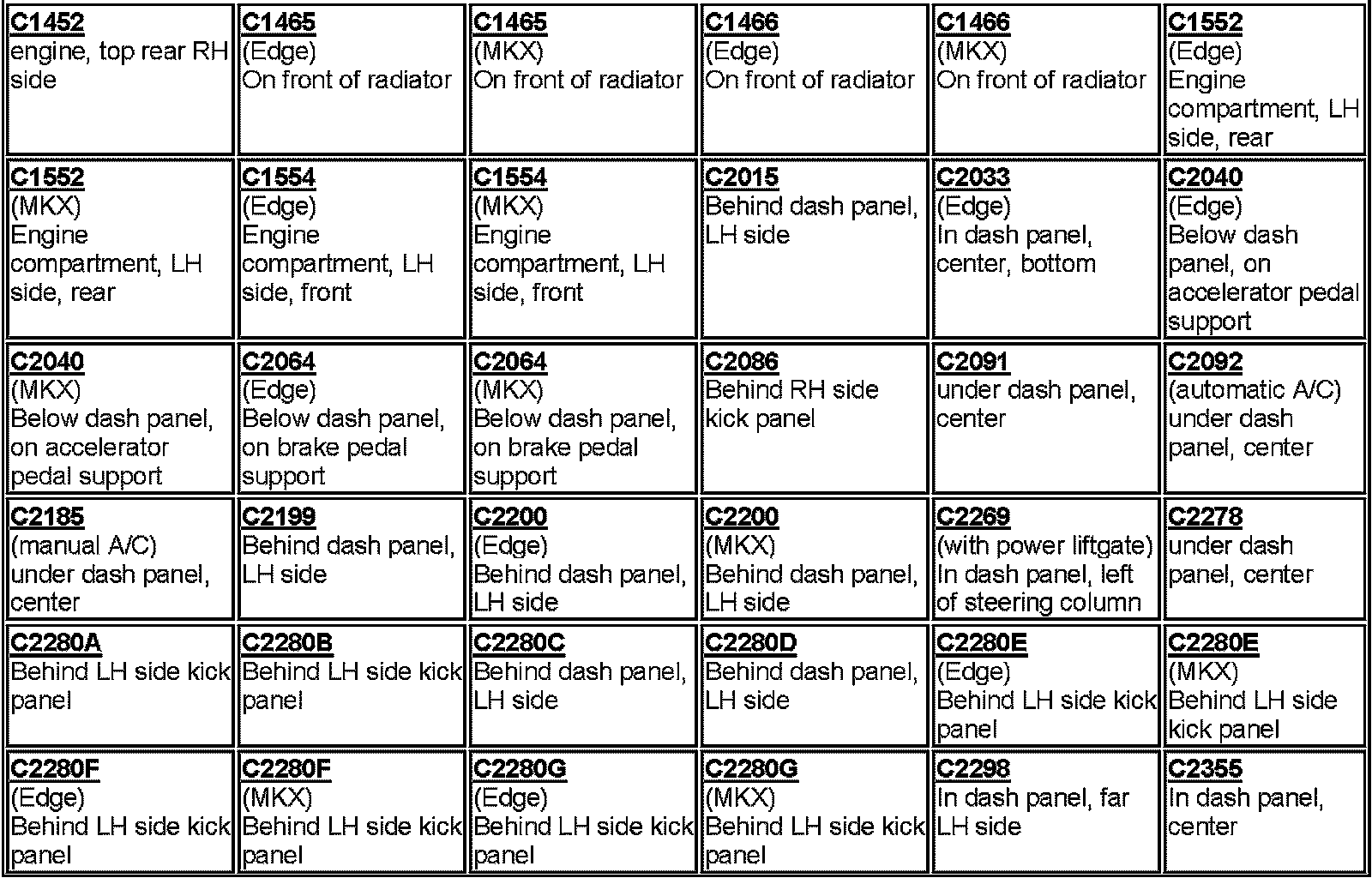

C1452-C2355:

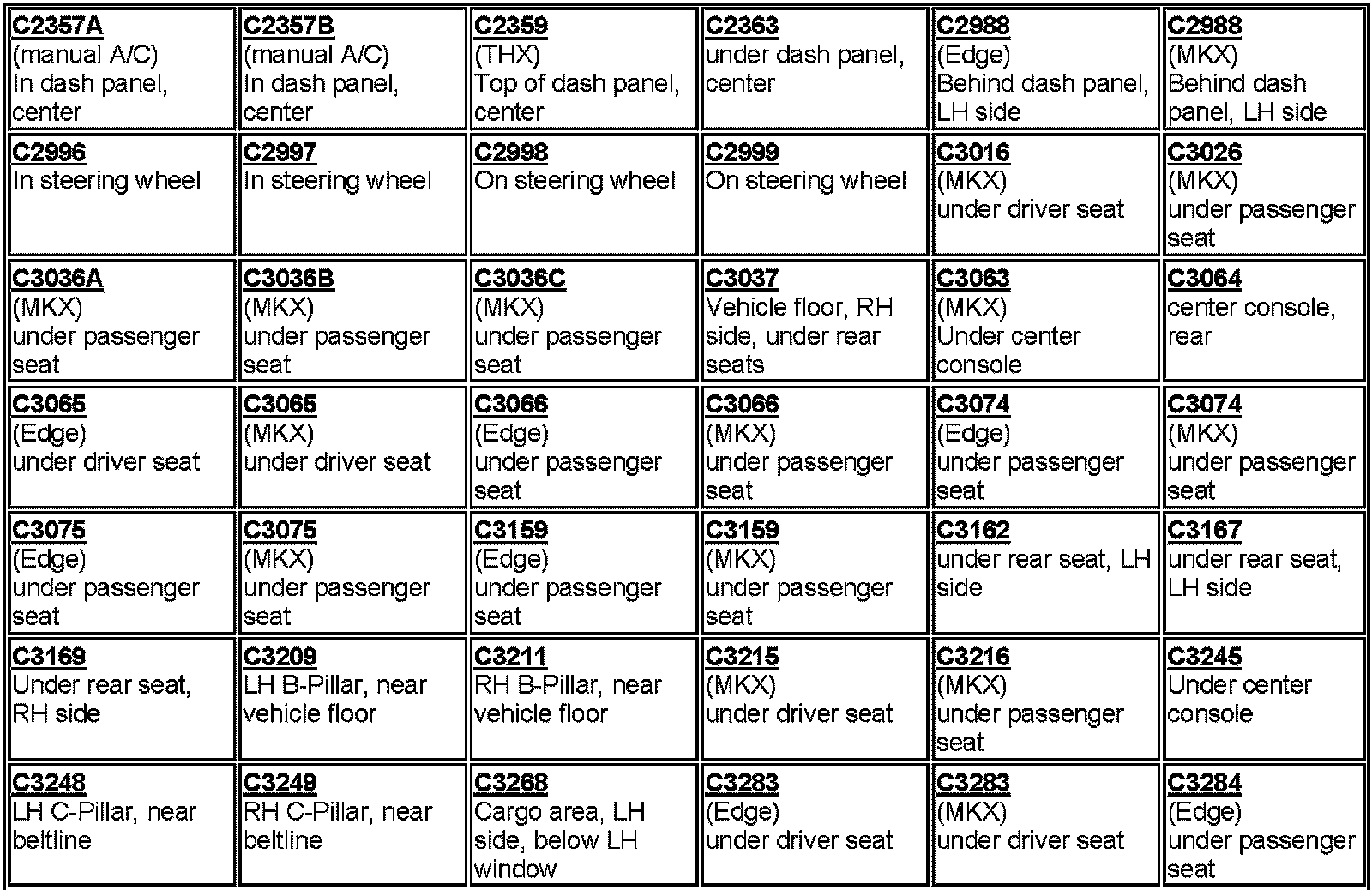

C2357A-C3284:

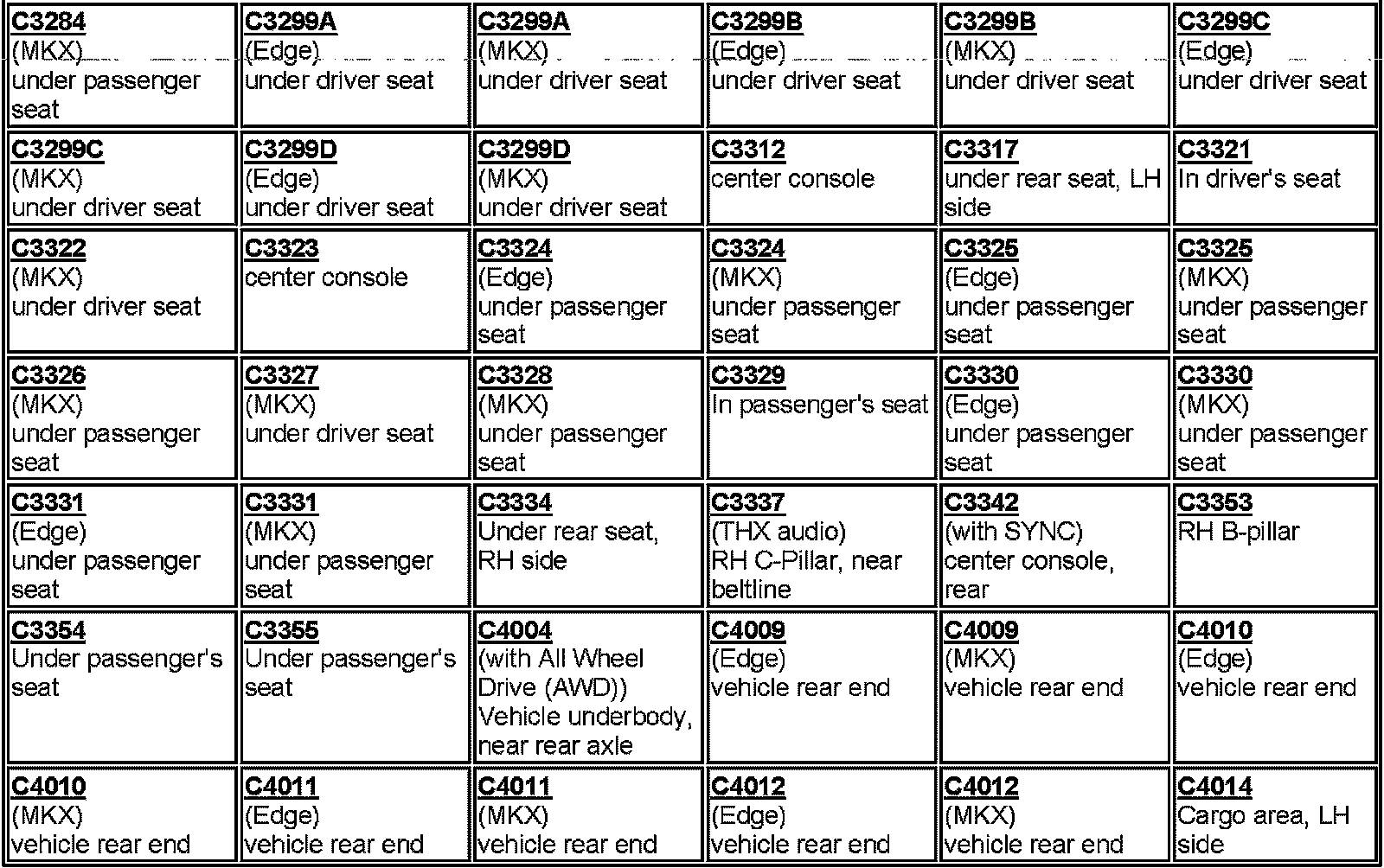

C3284-C4014:

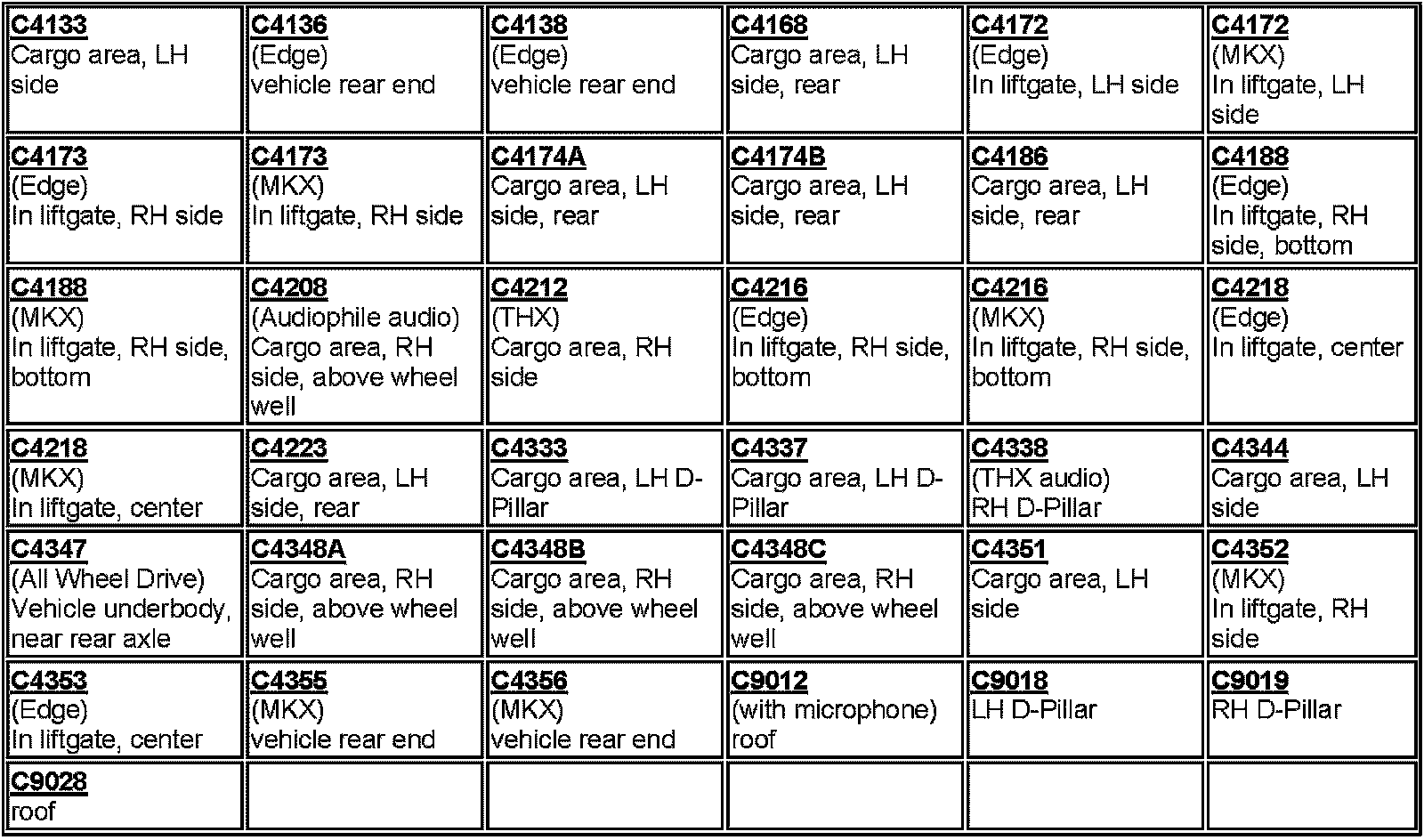

C4133-C9028:
