Headlamp Control Module: Service and Repair

HEADLAMP CONTROL MODULE (HCM)







Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.

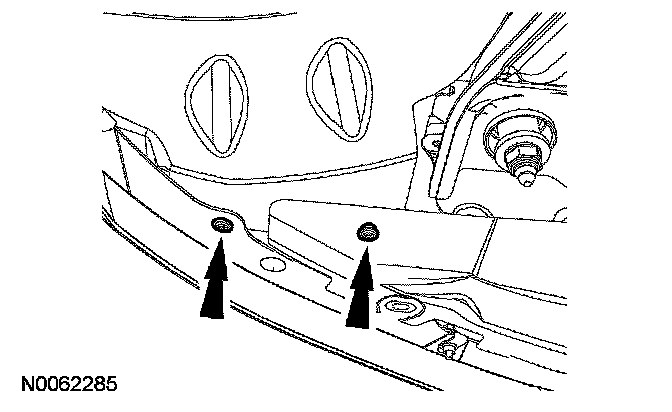

2. Remove the 2 screws and position the fender splash shield aside.

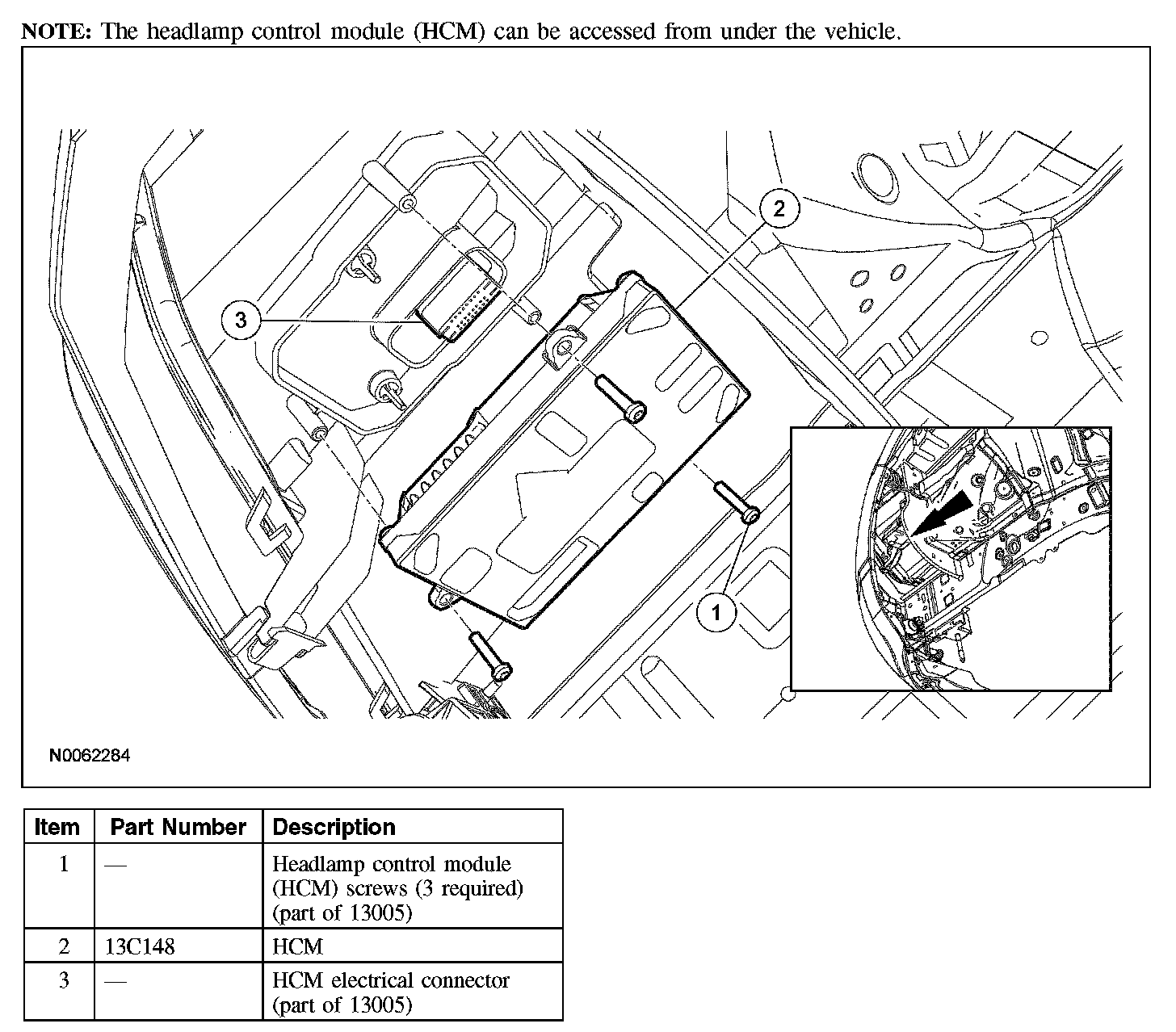

3. Remove the 3 screws and the HCM.
- Disconnect the electrical connector.

4. To install, reverse the removal procedure.
