Test L: The Audio Digital Signal Processing (DSP) Module Does Not Respond To The Scan Tool

PINPOINT TEST L: THE AUDIO DIGITAL SIGNAL PROCESSING (DSP) MODULE DOES NOT RESPOND TO THE SCAN TOOL

Normal Operation
The audio digital signal processing (DSP) module communicates with the scan tool through the medium speed controller area network (MS-CAN). Circuits VDB06 (GY/OG) (MS-CAN +) and VDB07 (VT/OG) (MS-CAN -) provide the network connection to the DSP module. The DSP module shares the MS-CAN with the instrument cluster (IC), the accessory protocol interface module (APIM), the smart junction box (SJB), the HVAC module (if equipped), the audio control module (ACM), the satellite digital audio receiver system (SDARS) module (if equipped), the rear entertainment module (RETM) (if equipped), the driver seat module (DSM) (if equipped), the power running board module (if equipped), the parking aid module (PAM) (if equipped), the liftgate/trunk module (LTM) (if equipped) and the dual climate control seat module (DCSM) (if equipped). Voltage for the DSP module is provided by circuits SBP38 (BN/RD) and SBP18 (YE/RD). Circuit GD148 (BK/YE) provides ground.

This pinpoint test is intended to diagnose the following:
- Fuse
- Wiring, terminals or connectors
- DSP module

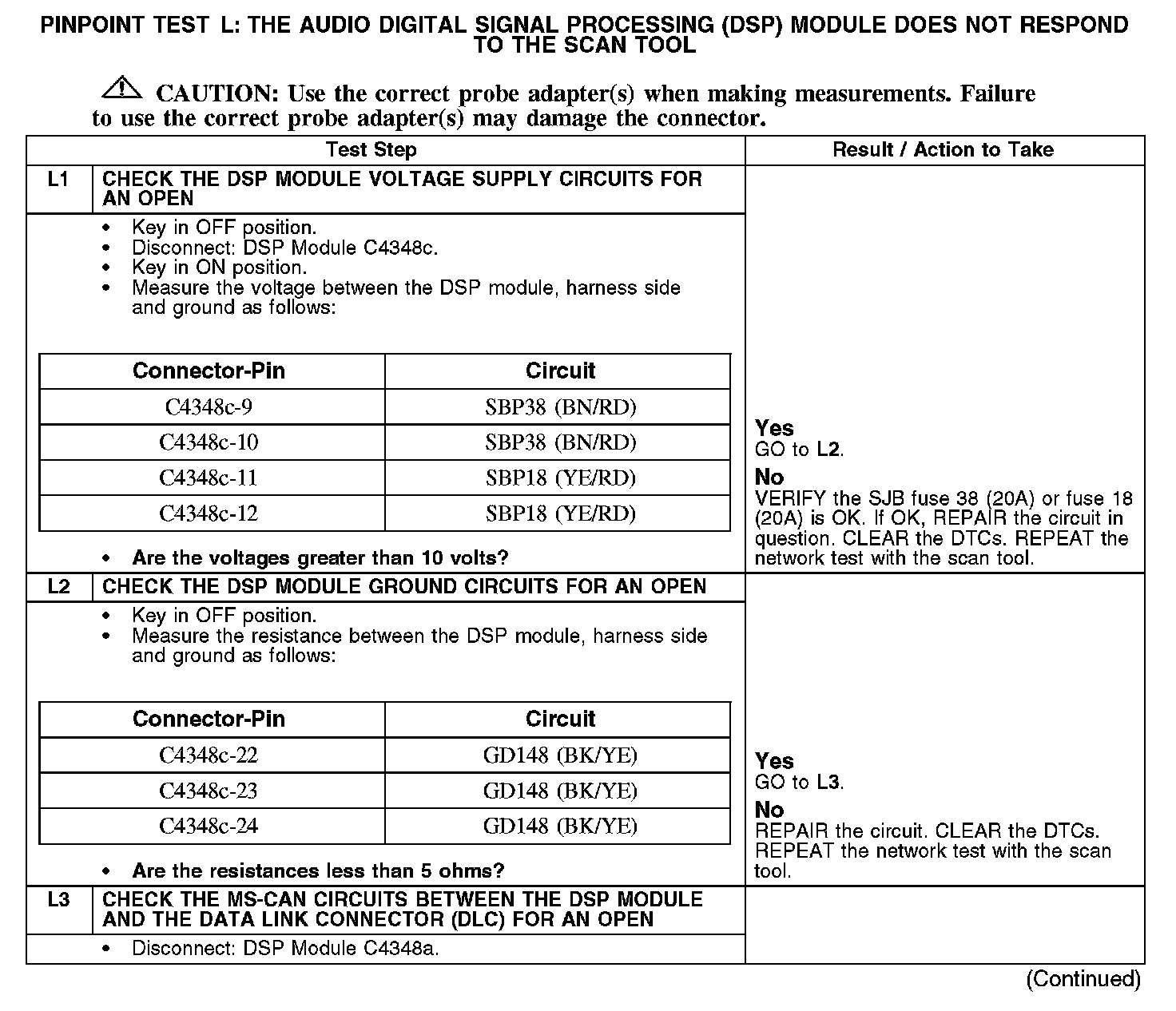

L1-L3:

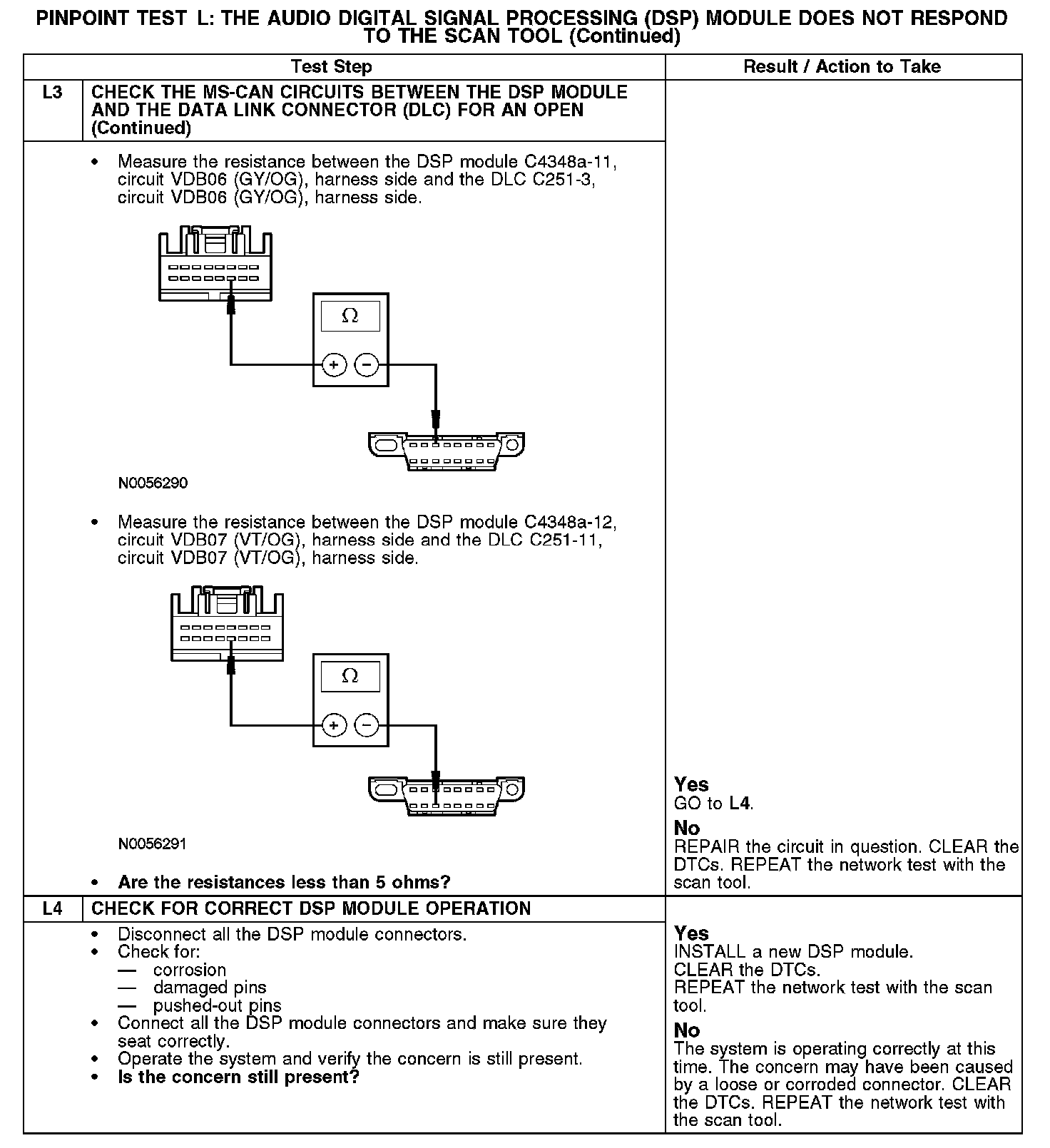

L3-L4:
