Test A: No Start

PINPOINT TEST A: NO START

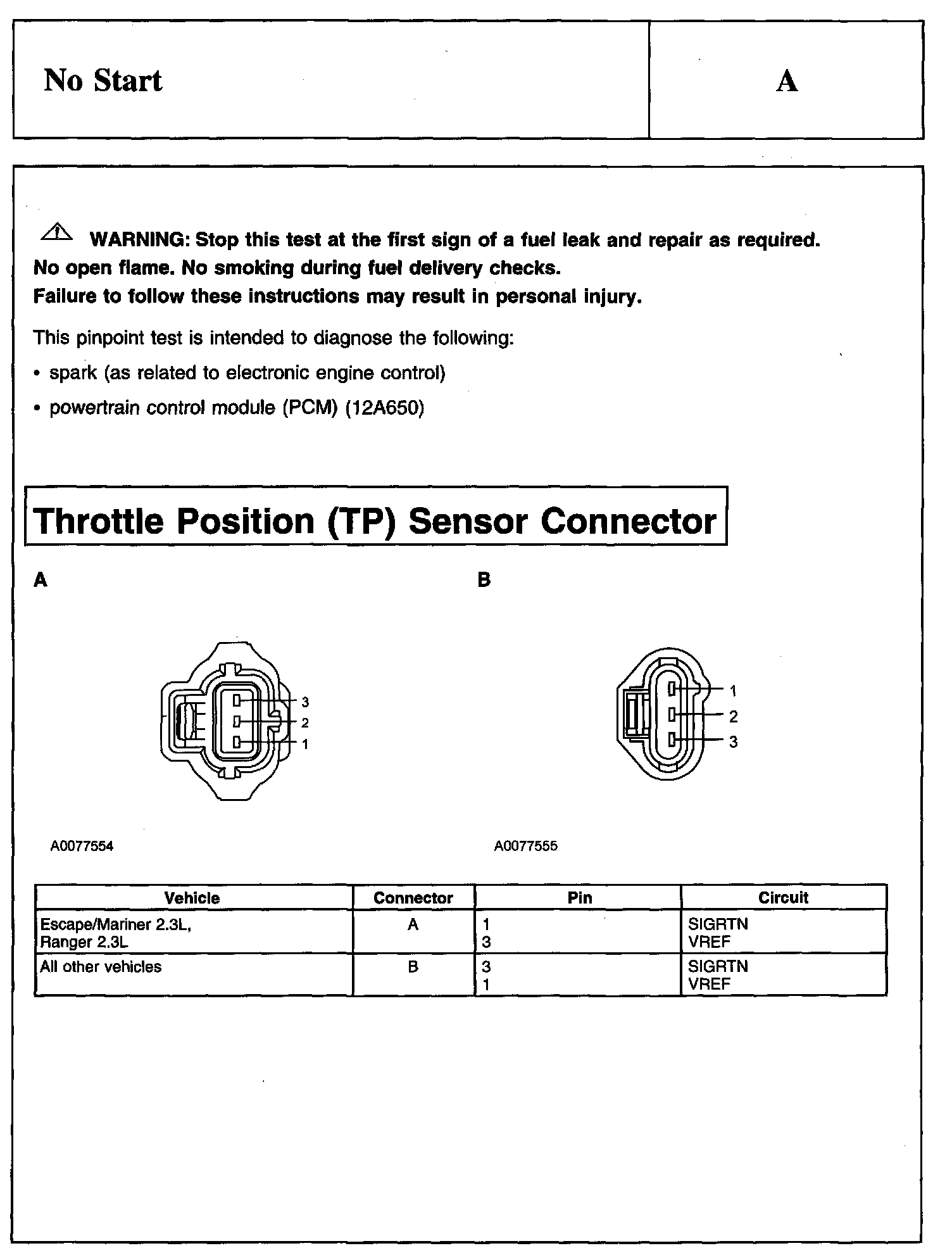

Warning And Throttle Position (TP) Sensor Connector:

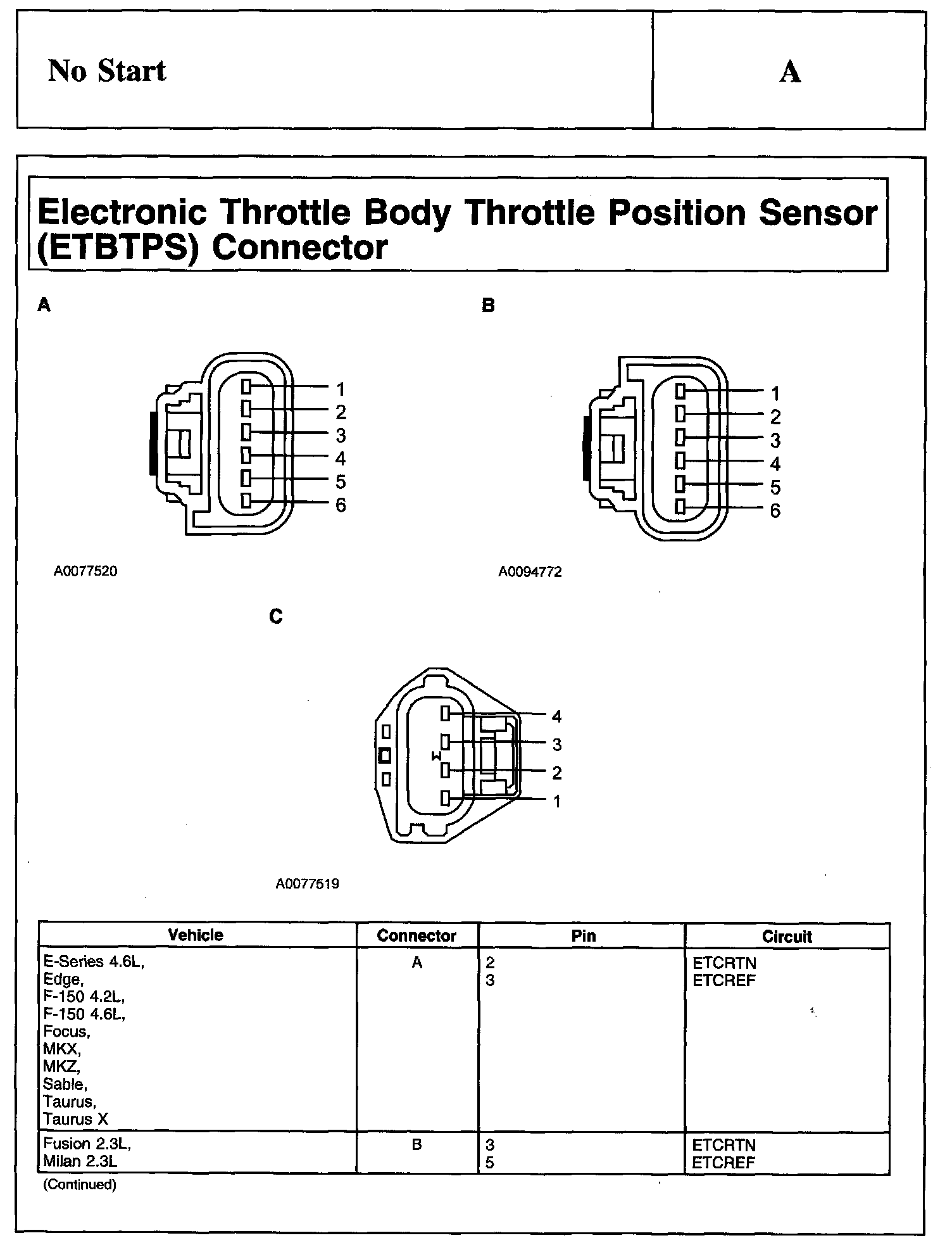

Electronic Throttle Body Throttle Position Sensor (ETBTPS) Connector:

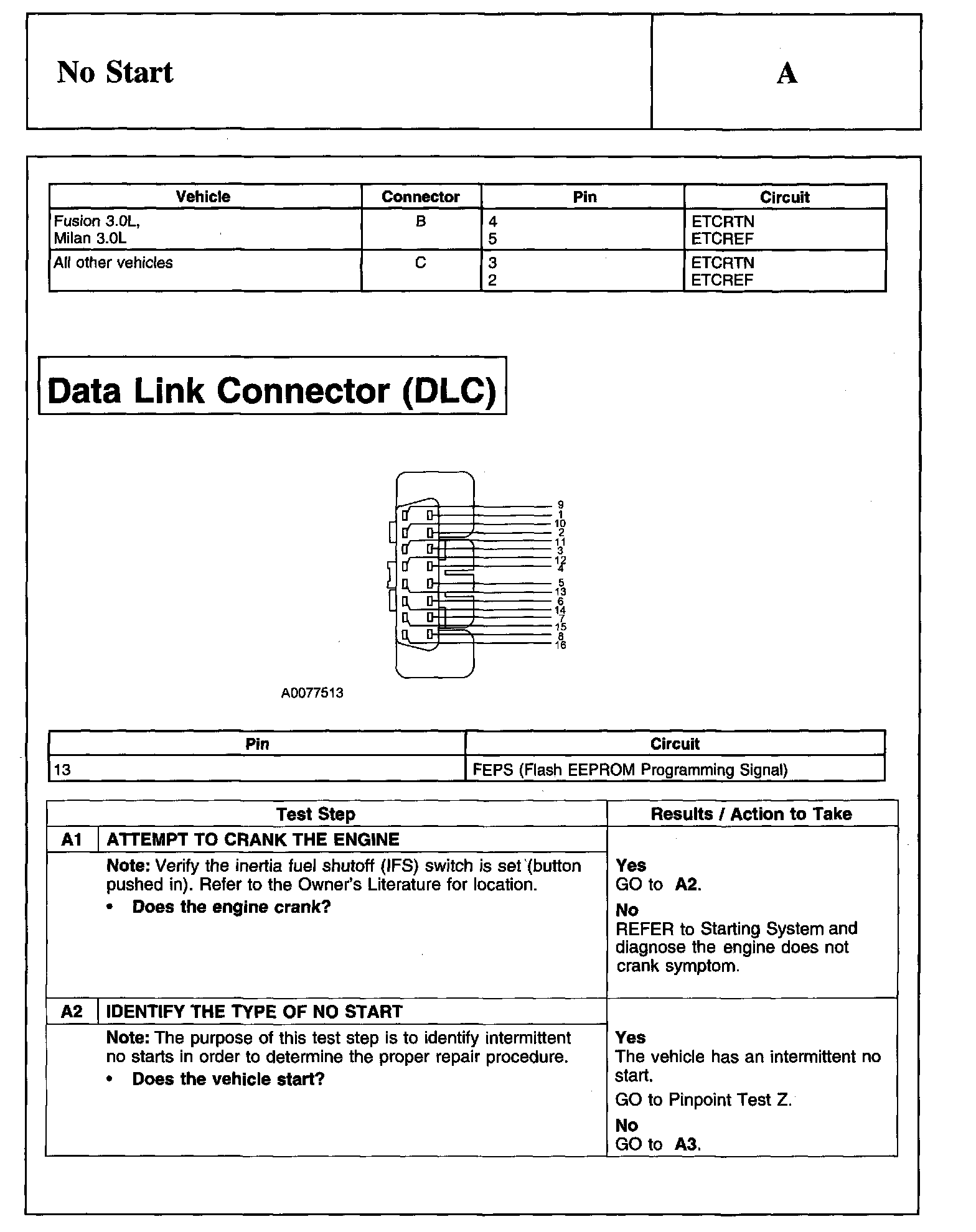

A1-A2:

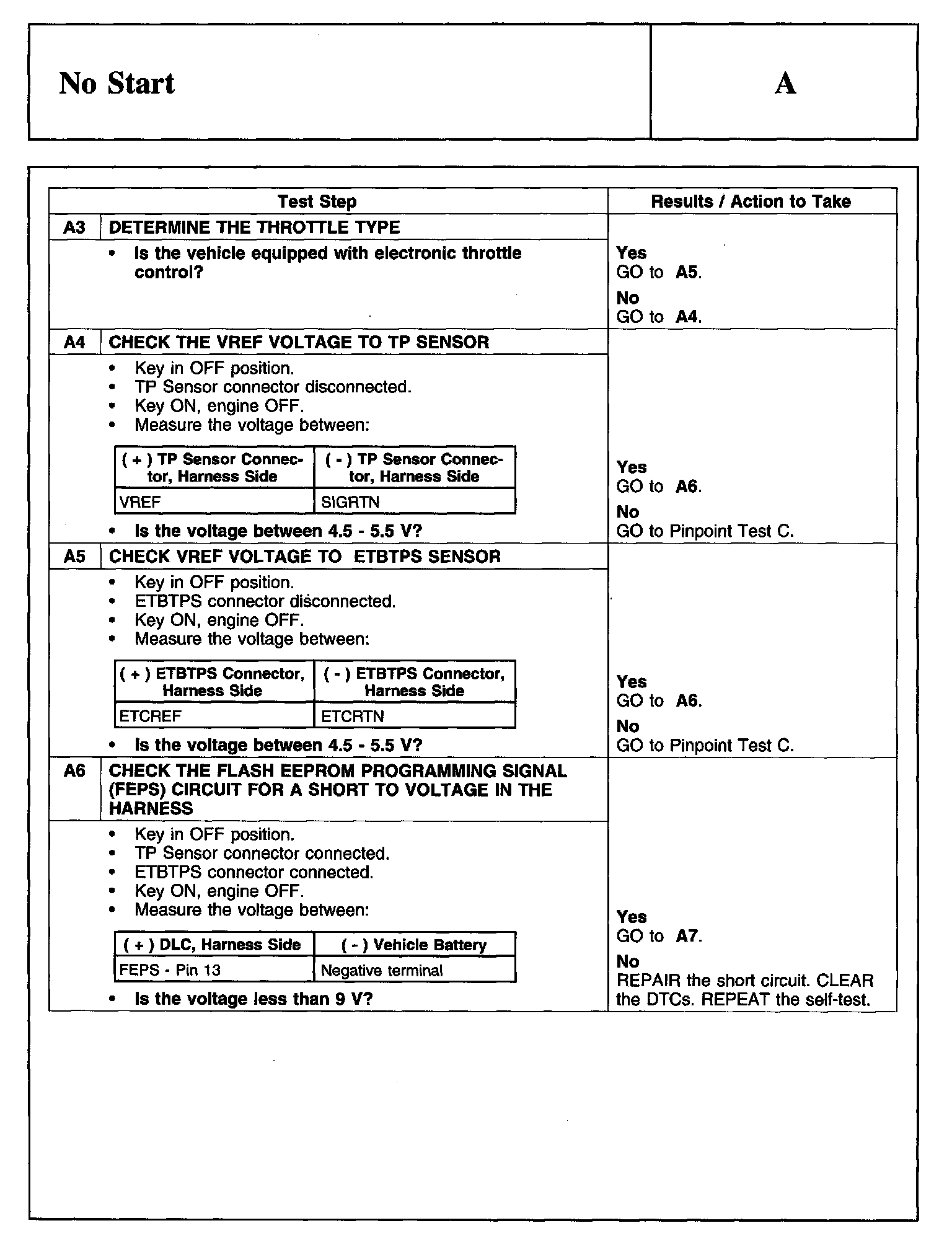

A3-A6:

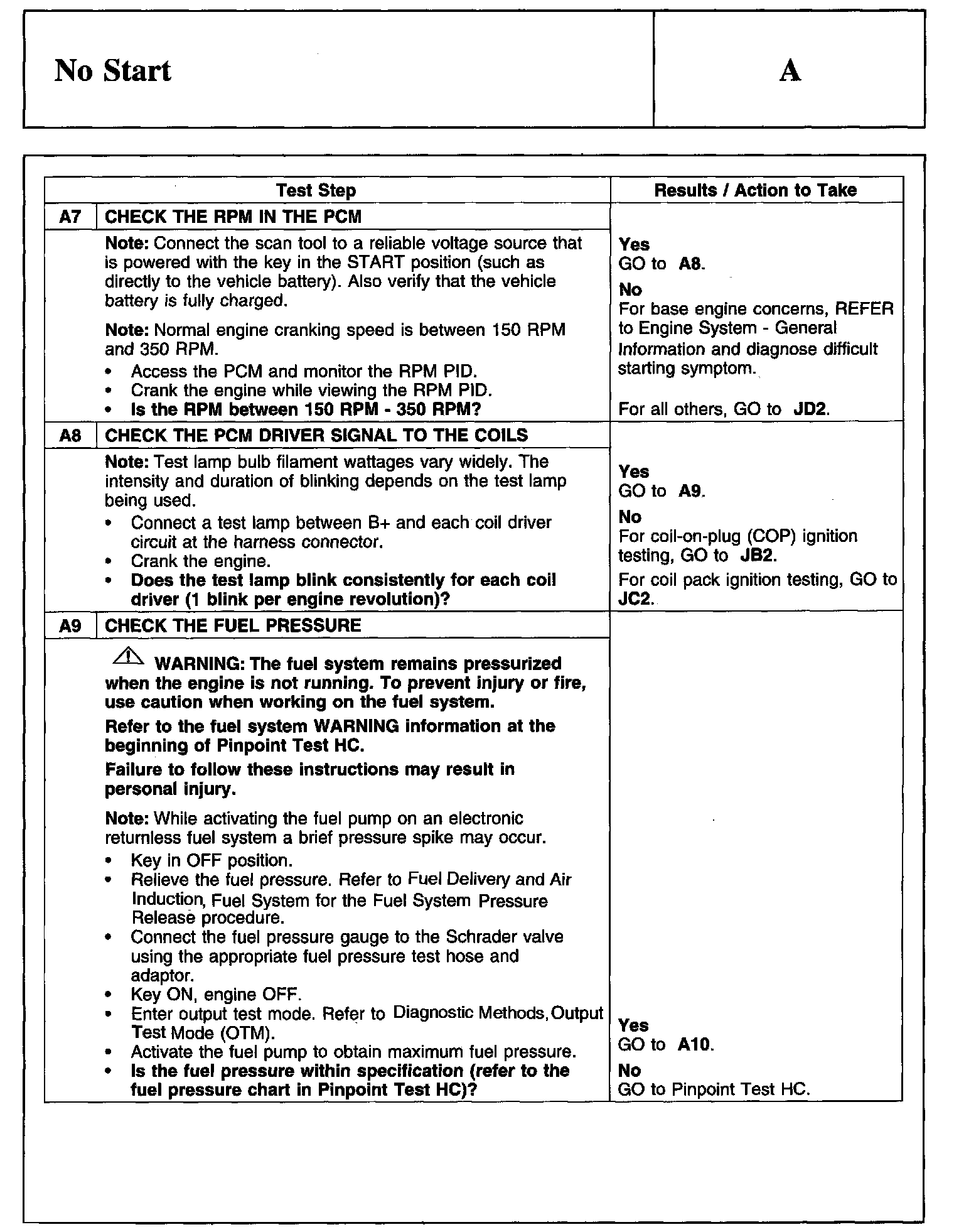

A7-A9:

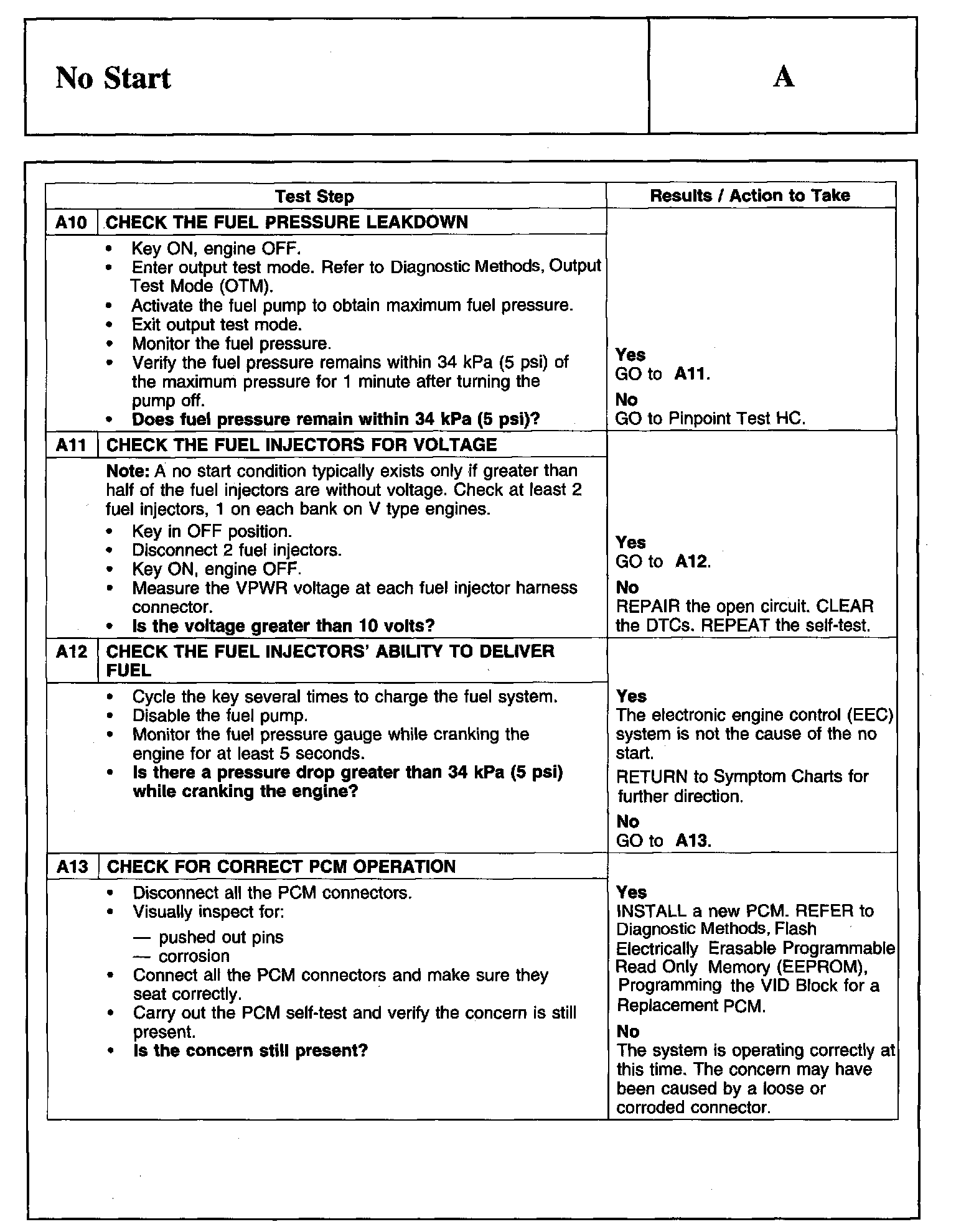

A10-A13:
