Test Z: Intermittent

PINPOINT TEST Z: INTERMITTENT

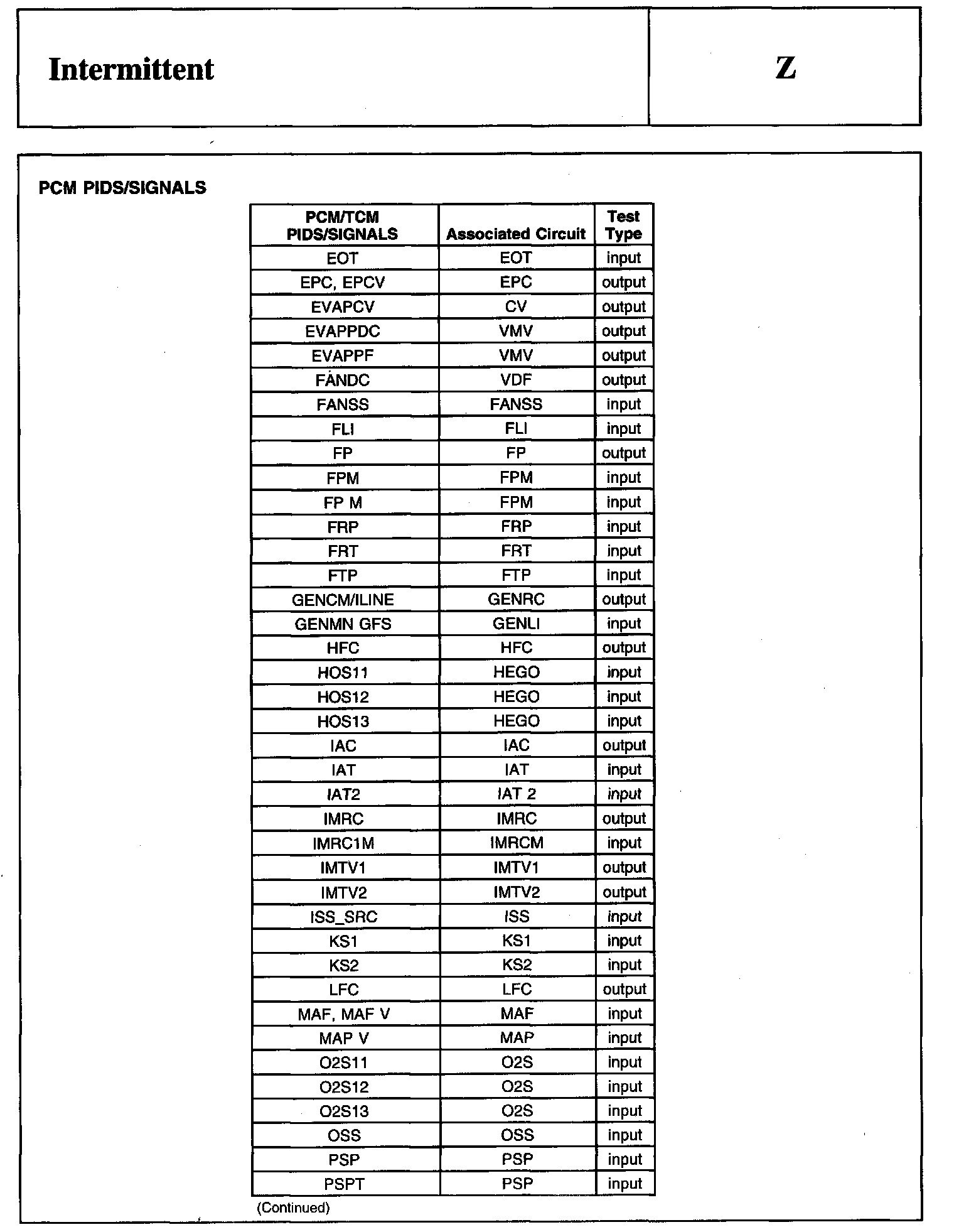

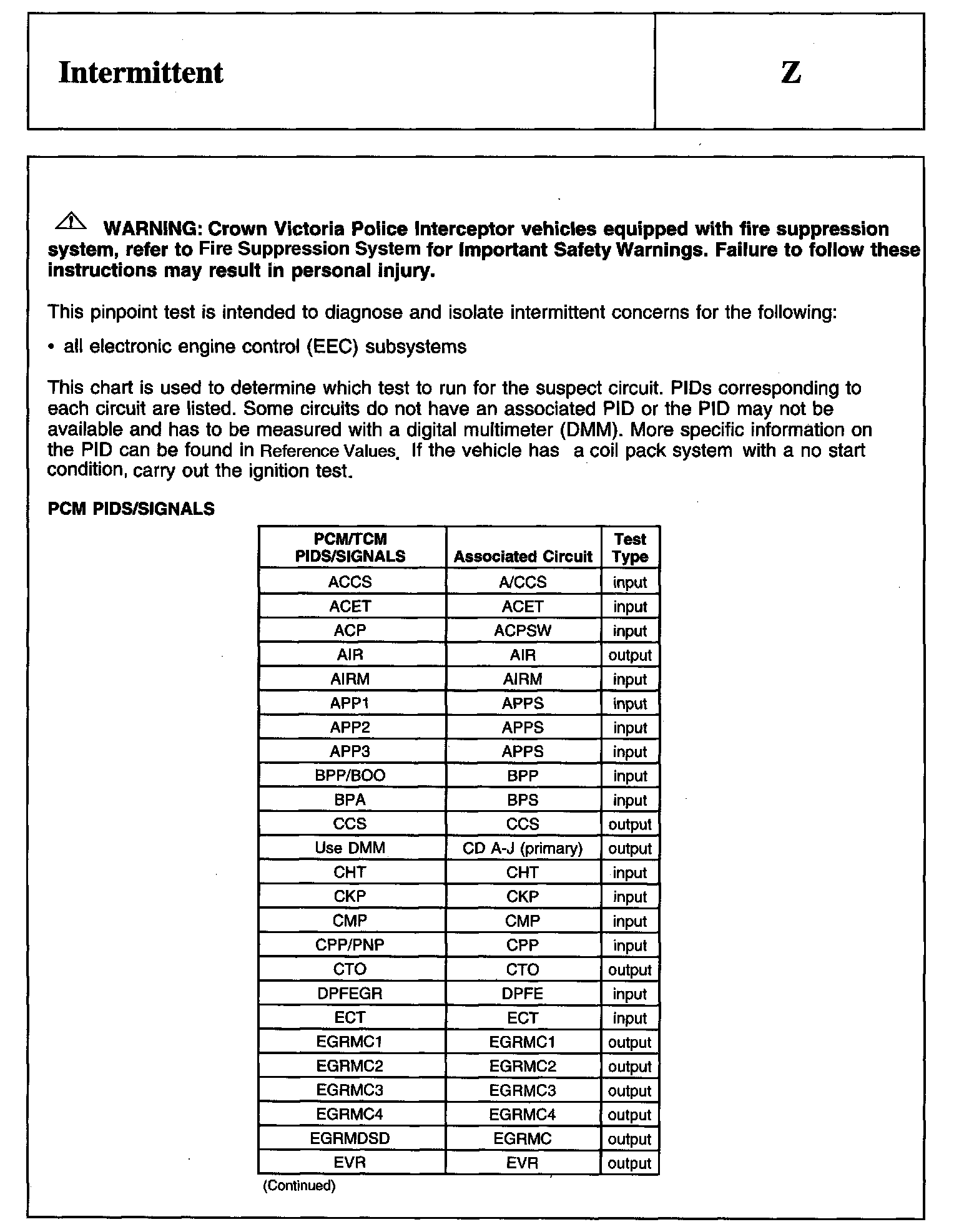

Warning And PCM PIDS/Signals:

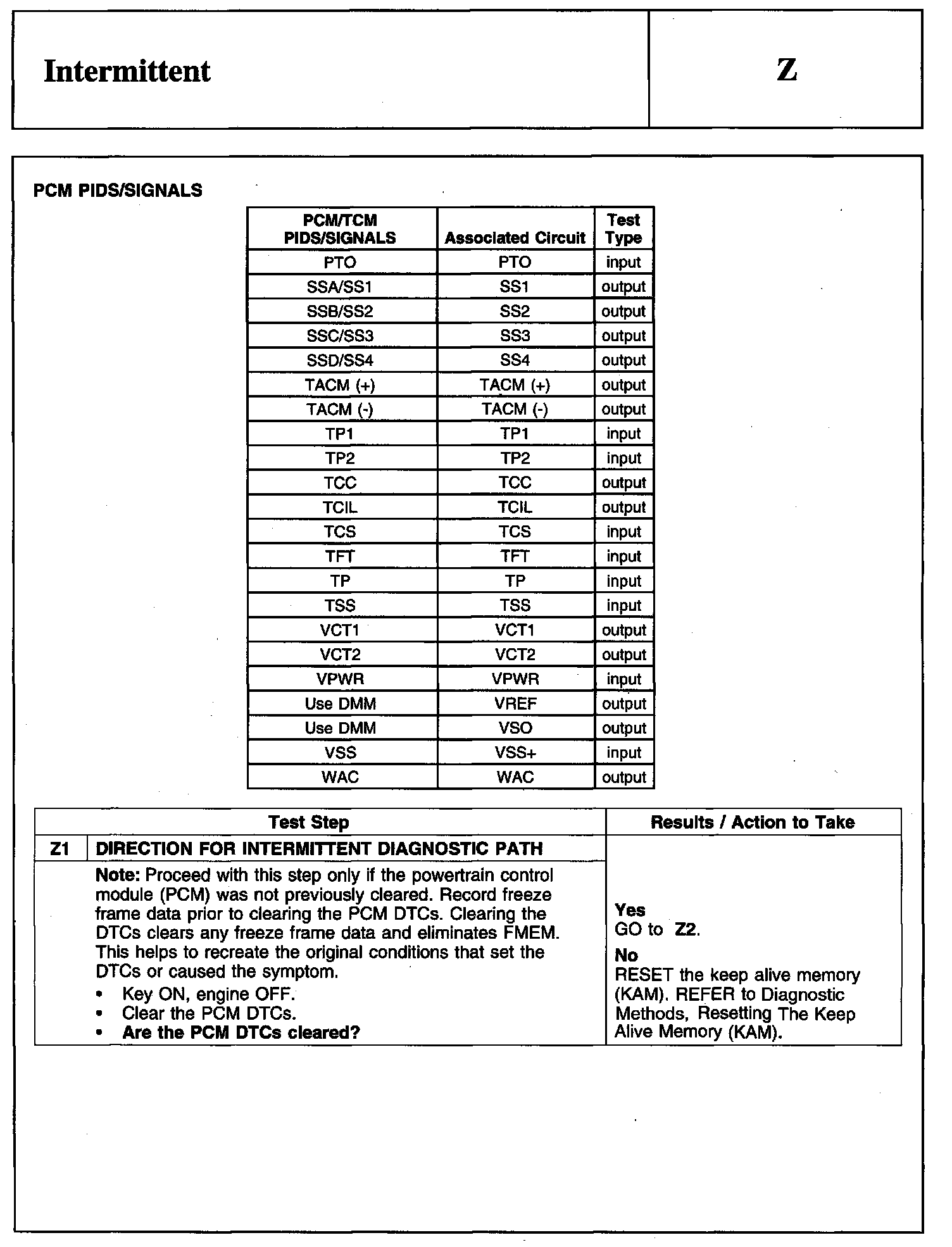

PCM PIDS/Signals Continued:






Z1:

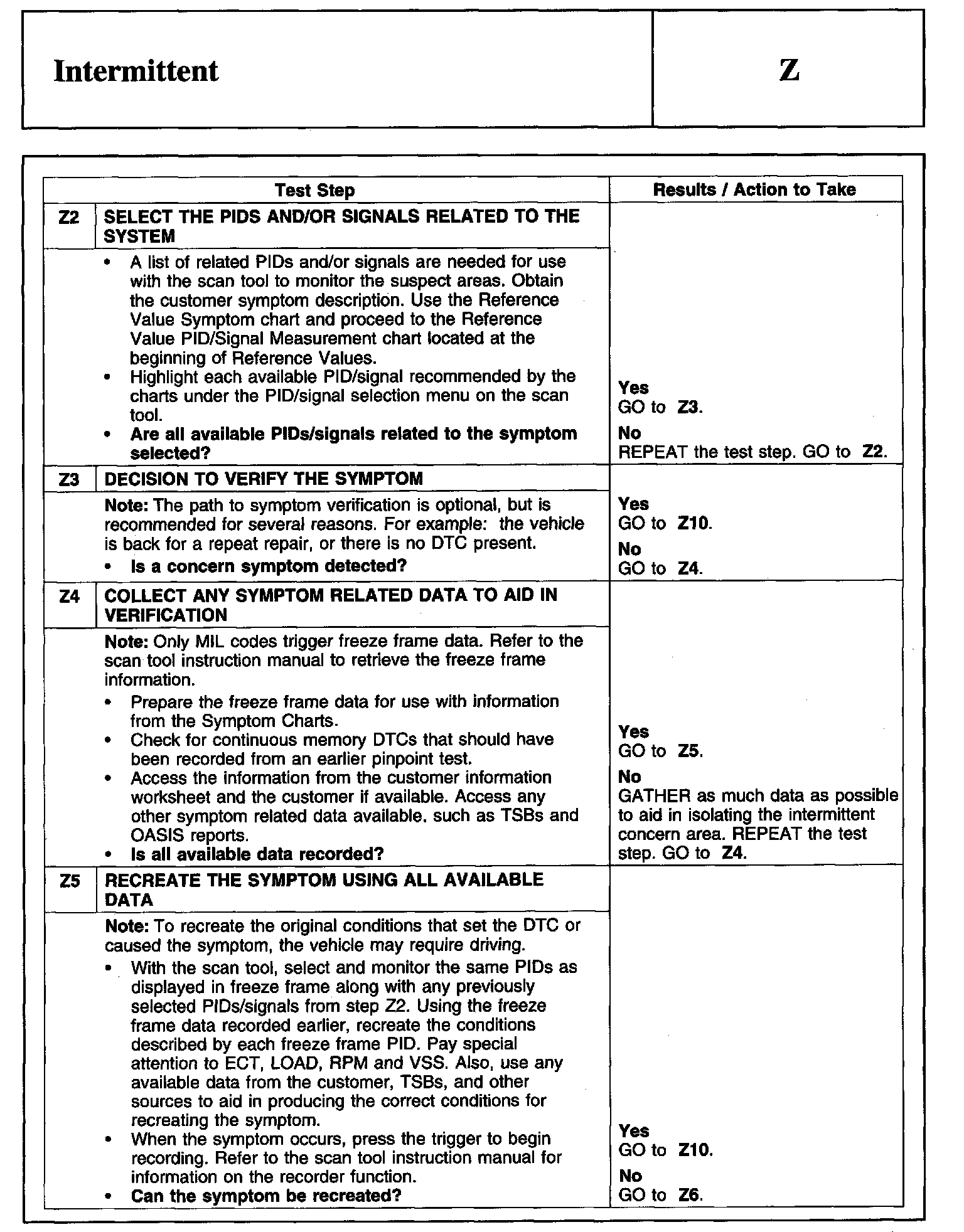

Z2-Z5:

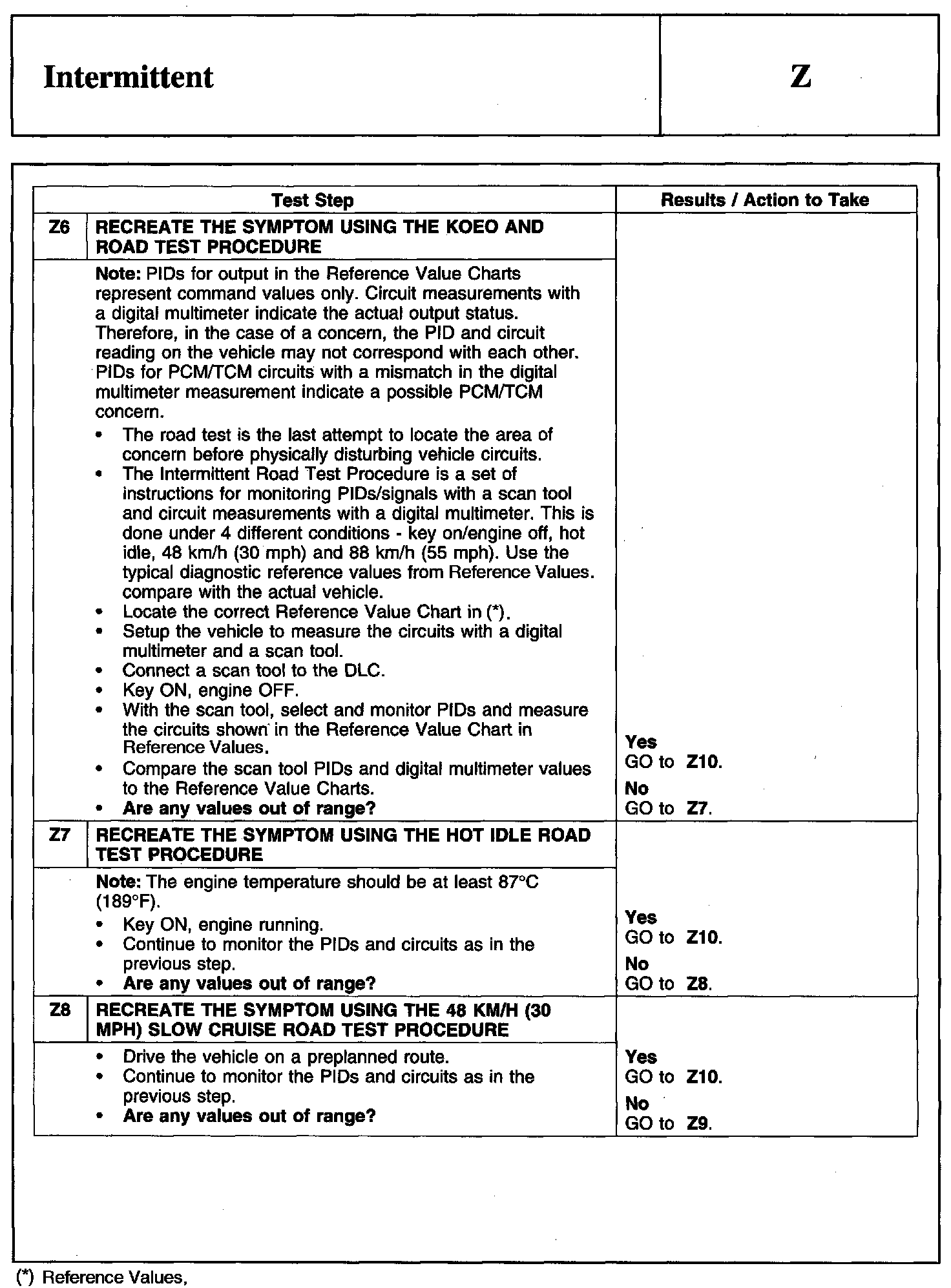

Z6-Z8:






Z9-Z10:

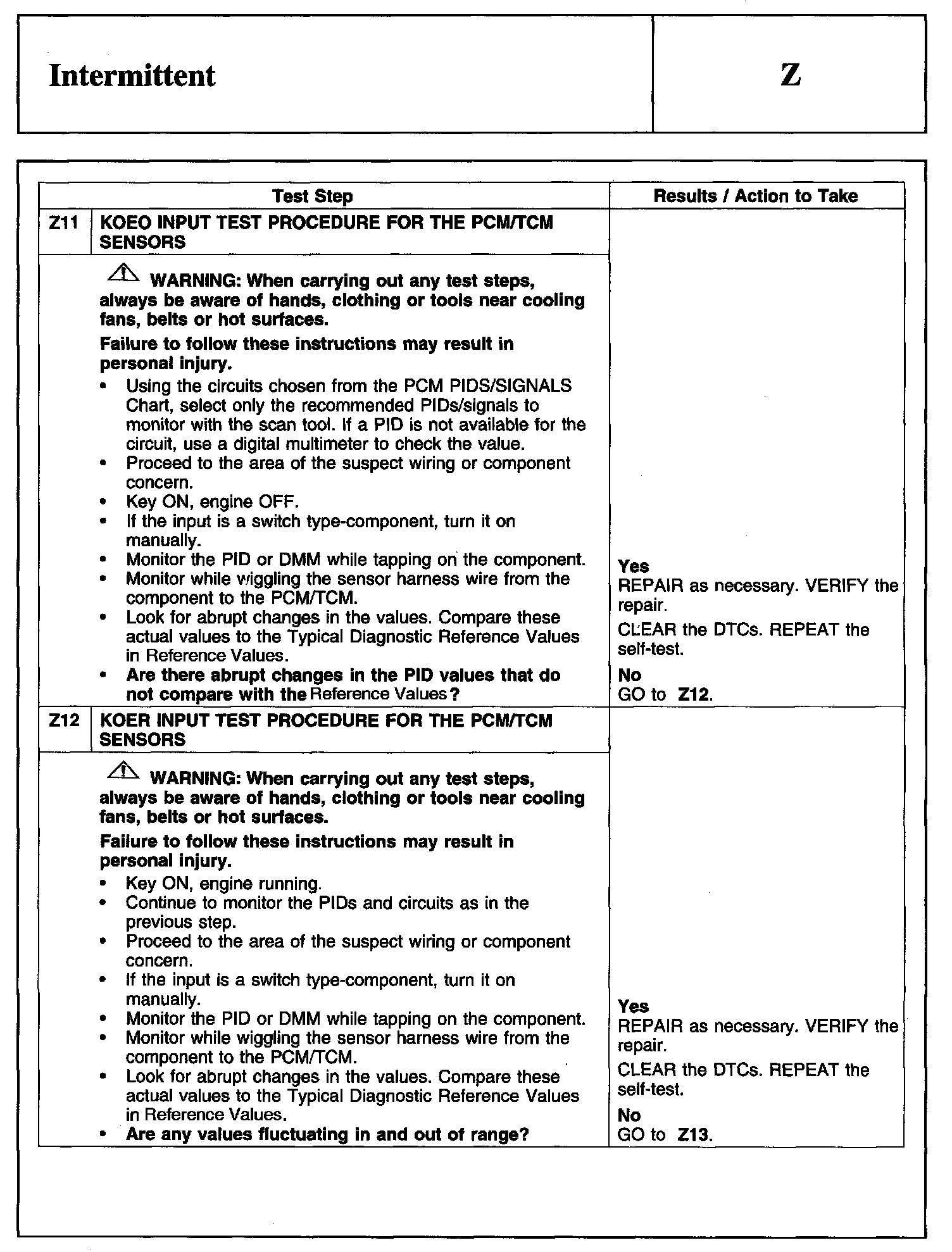

Z11-Z12:

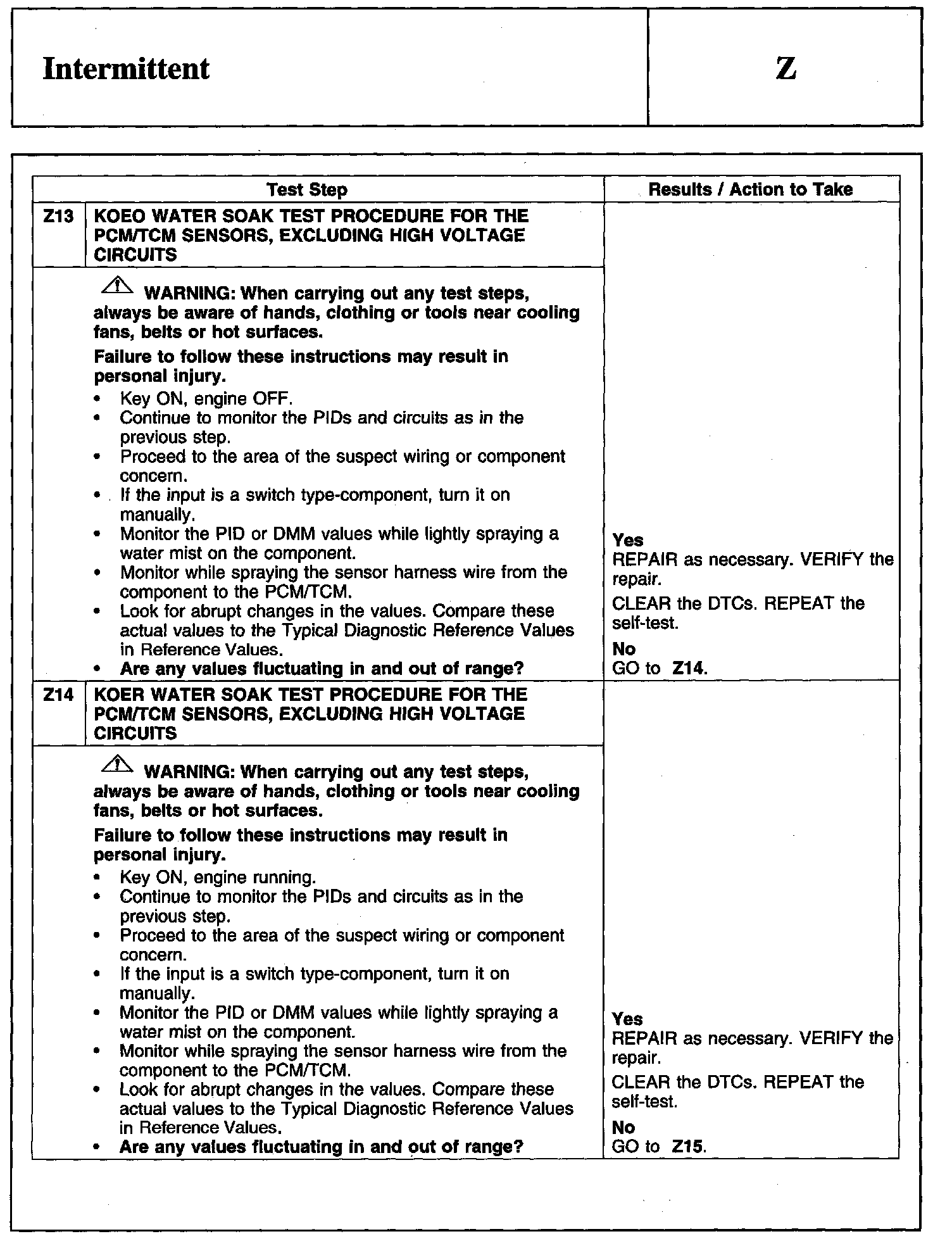

Z13-Z14:

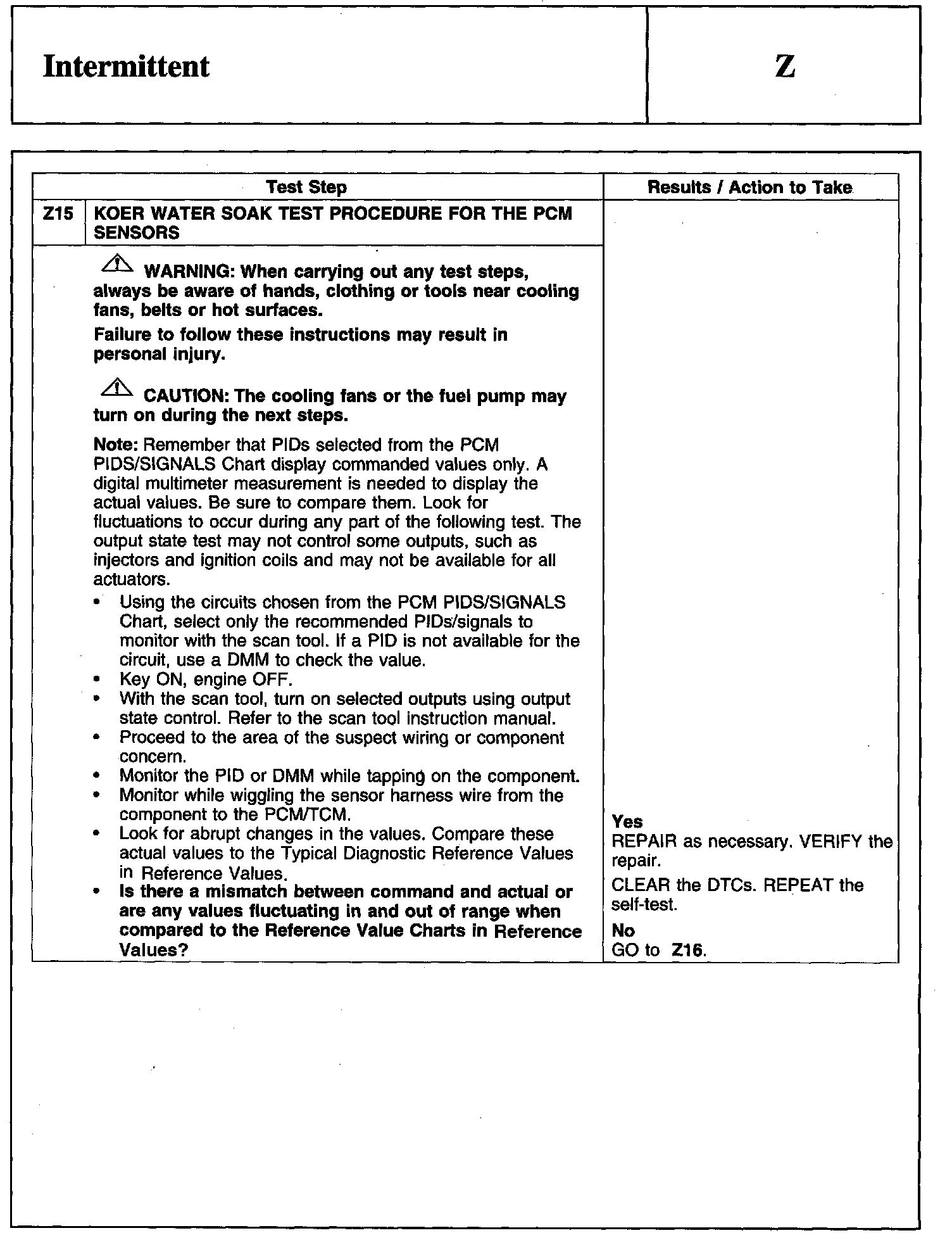

Z15:

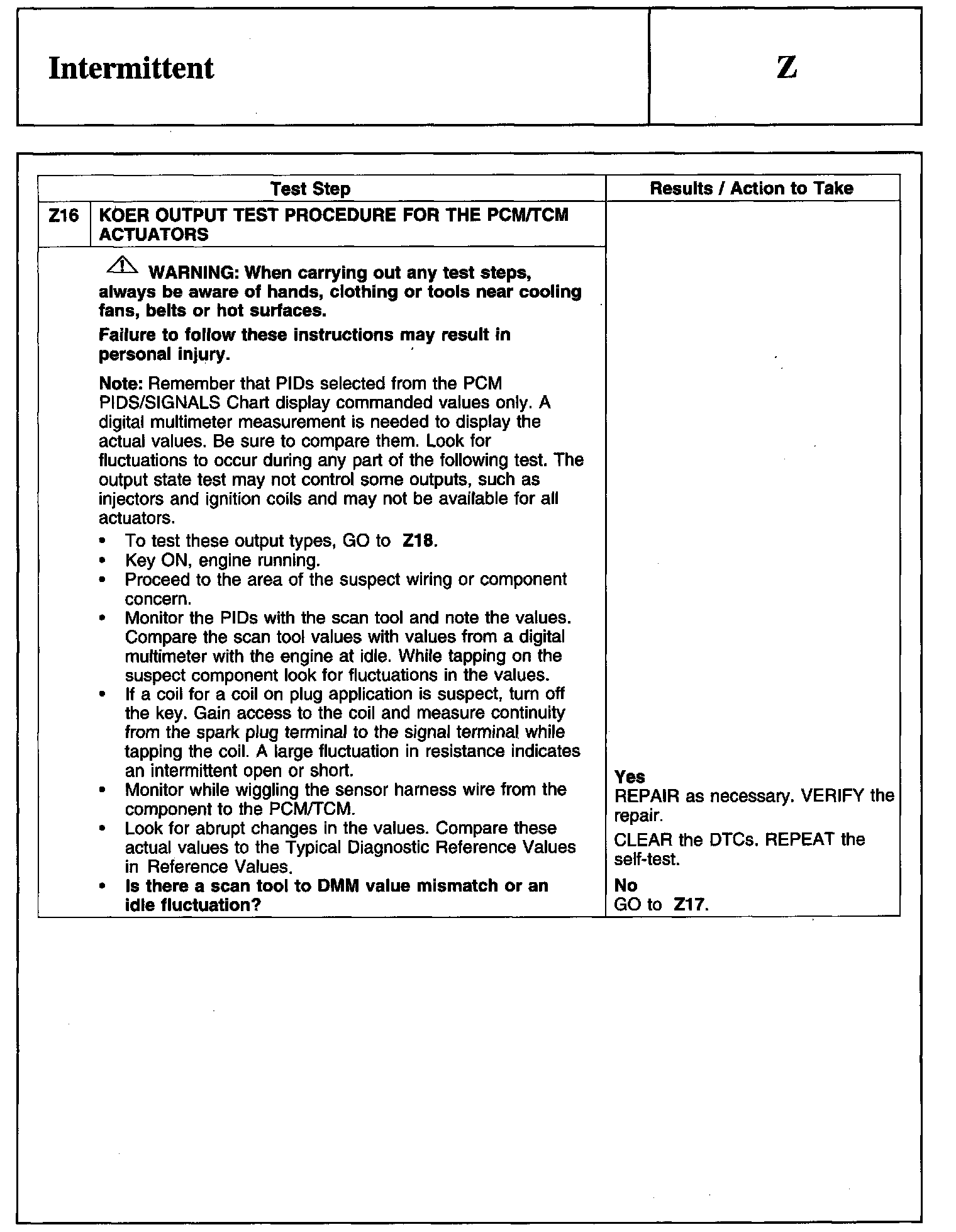

Z16:

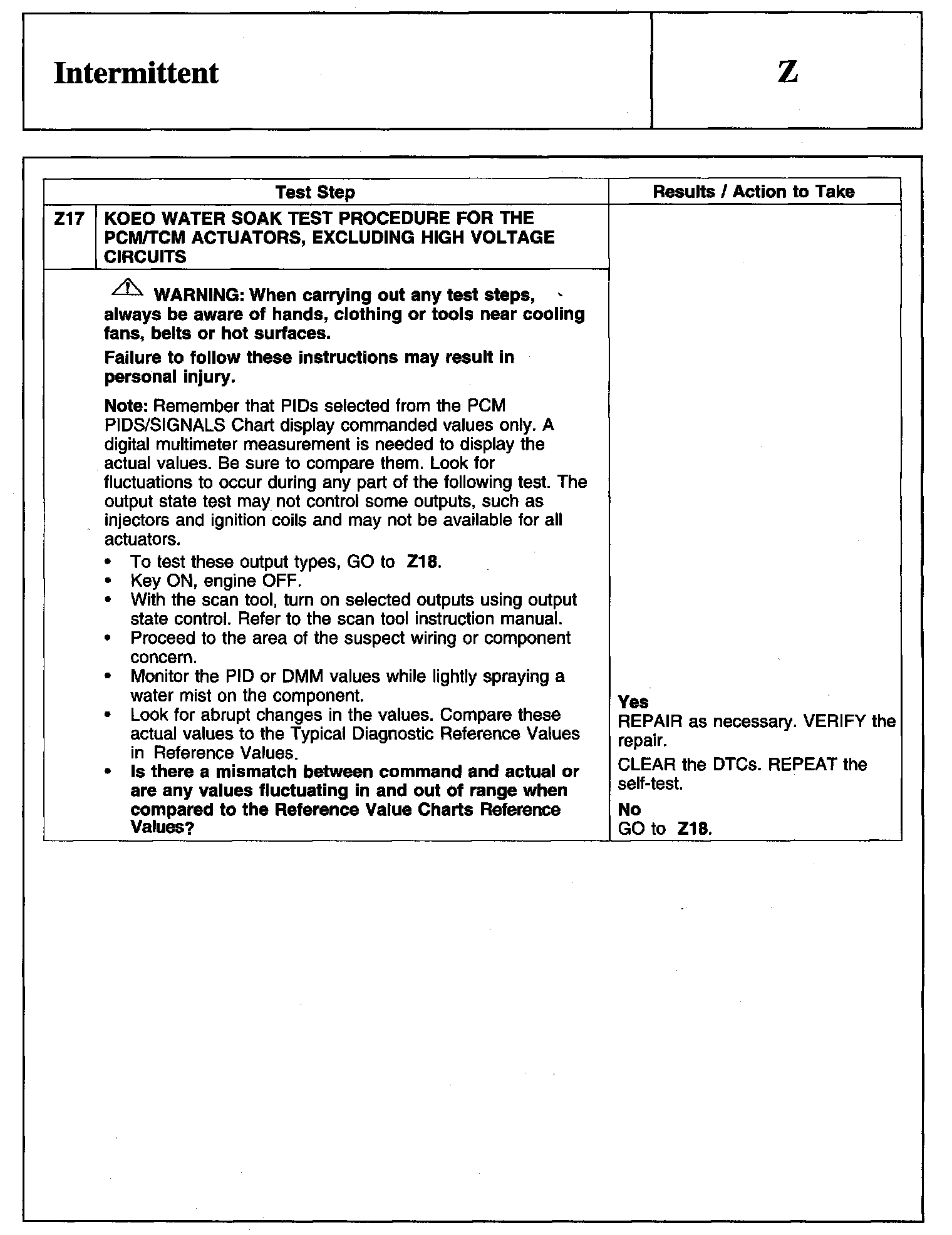

Z17:

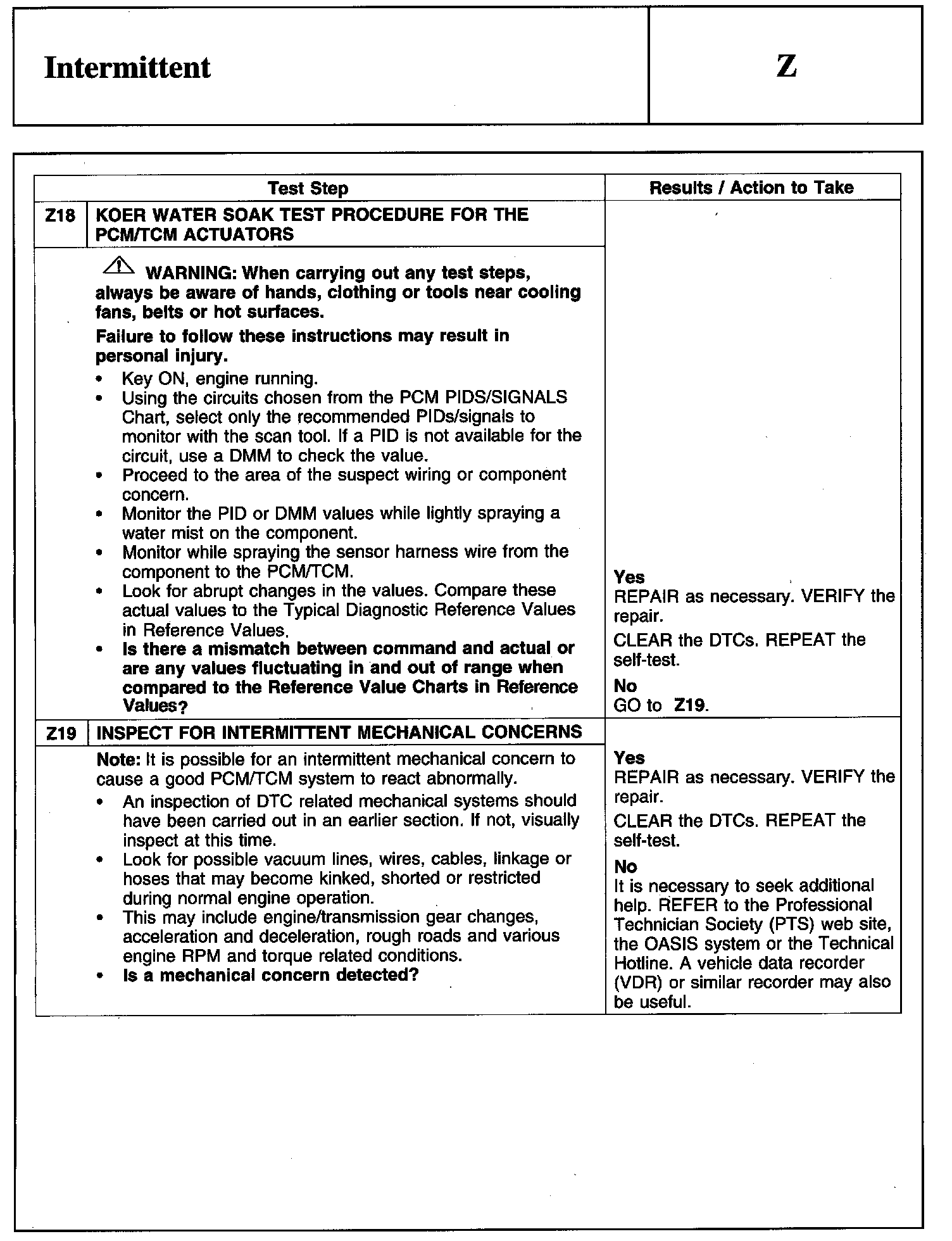

Z18-Z19:
