Power Trunk / Liftgate Control Module: Service and Repair

LIFTGATE/TRUNK MODULE (LTM)

Removal and Installation







1. Remove the power liftgate motor assembly.

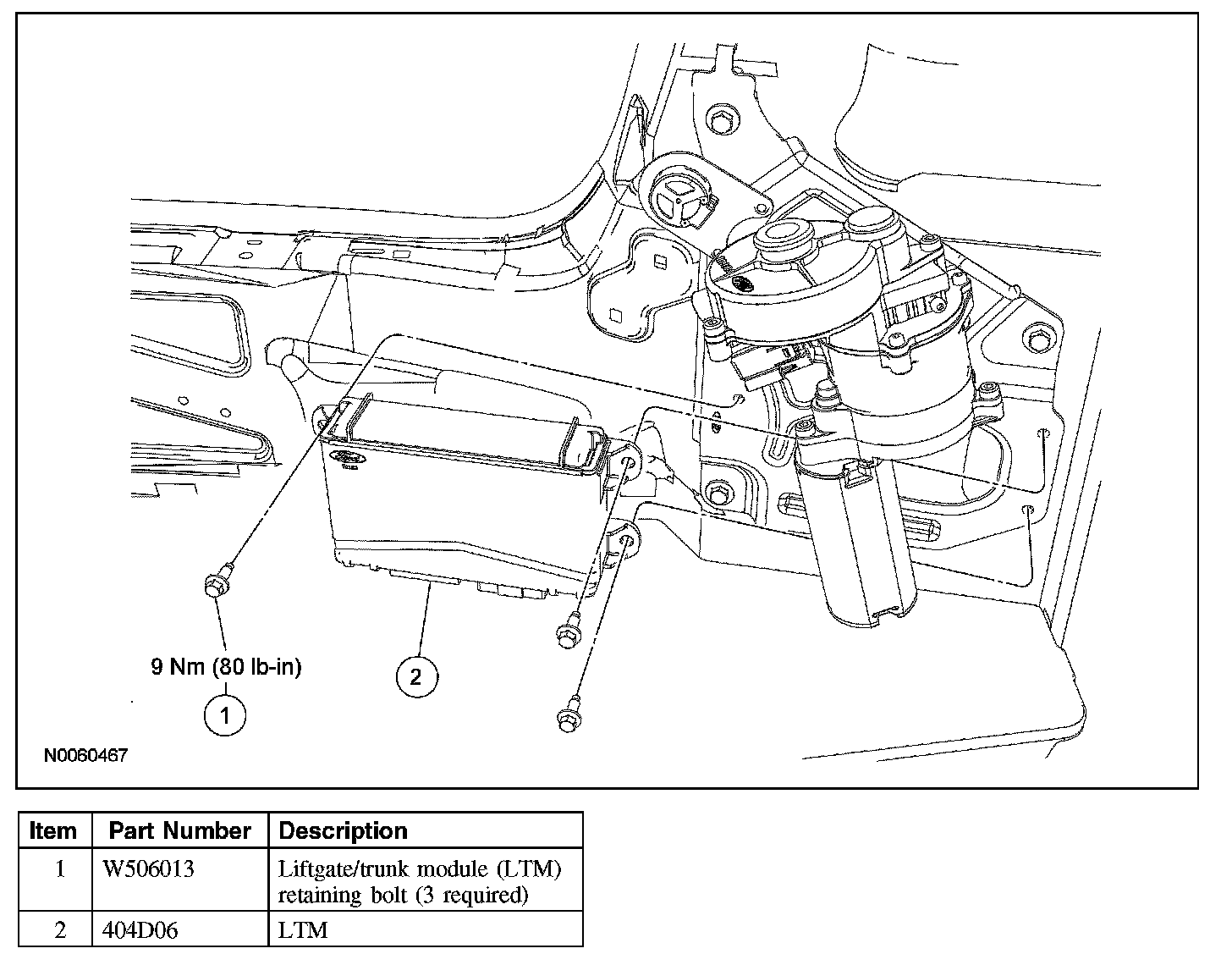

2. Remove the LTM.

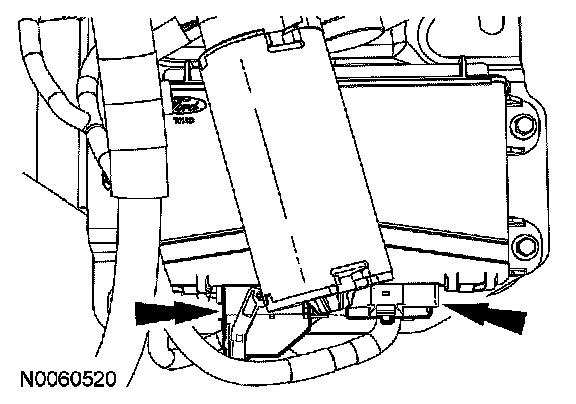

- Disconnect the electrical connectors and remove the 3 bolts.
- To install, tighten to 9 Nm (80 lb-in).







3. To install, reverse the removal procedure.
- Initialize the power liftgate. For additional information, refer to Power Liftgate Initialization. Programming and Relearning
