Ignition Coil: Service and Repair

IGNITION COIL-ON-PLUG

Exploded View

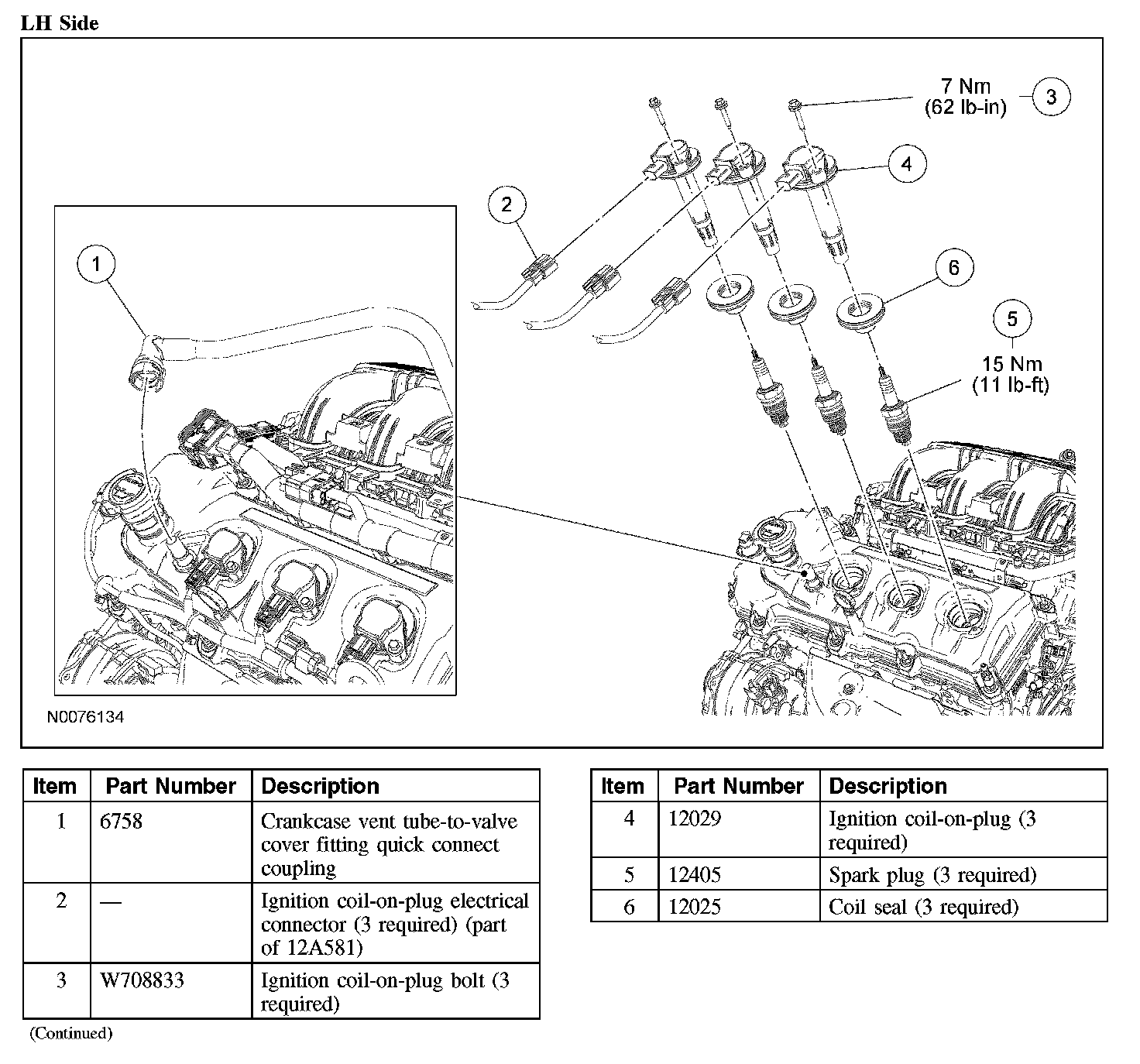

LH Side:

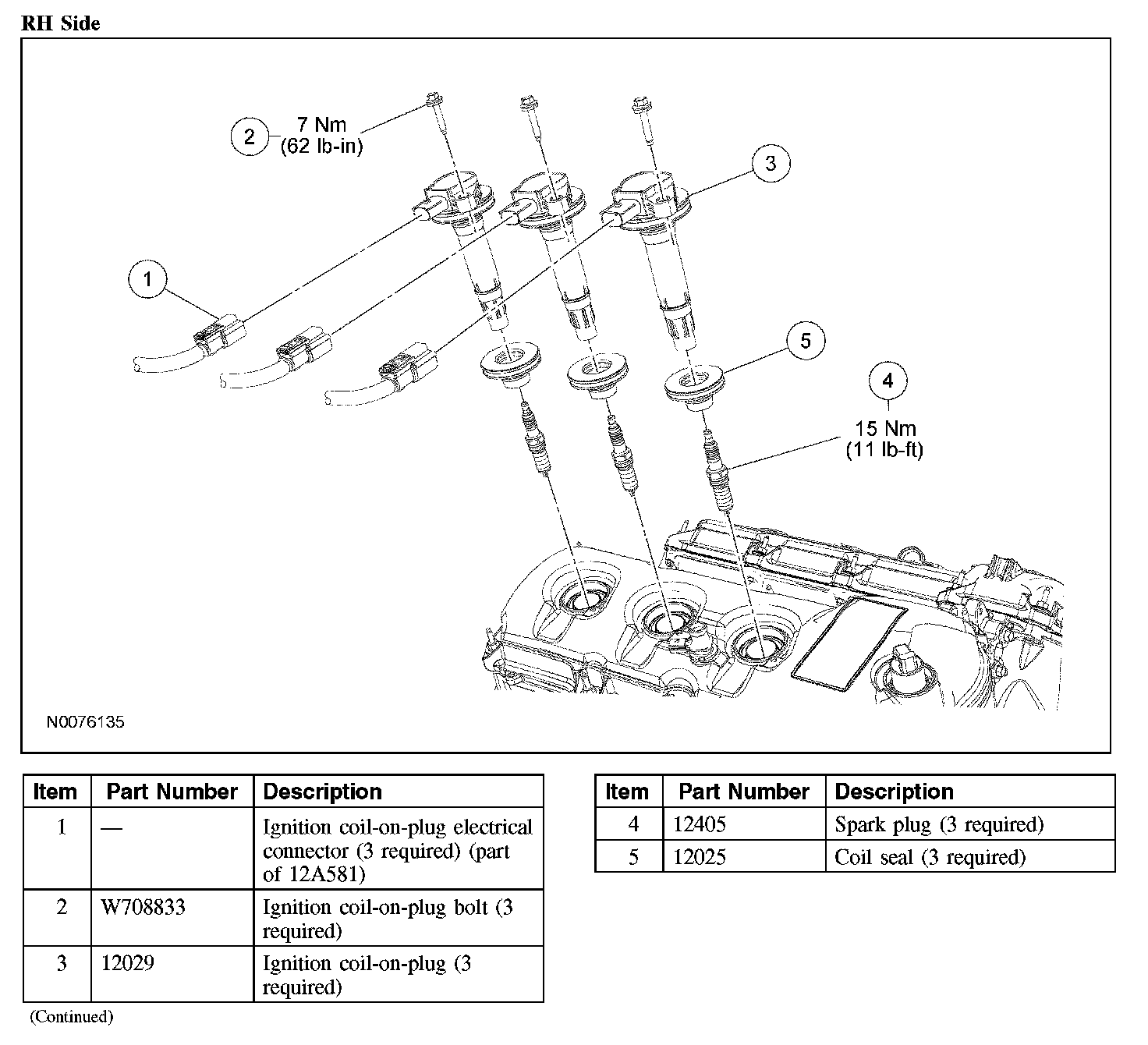

RH Side:

Removal and Installation

LH side
1. Disconnect the crankcase vent tube quick connect coupling from the valve cover fitting and position aside.

RH side

2. NOTE: The upper intake manifold must be removed to access the RH ignition coil-on-plugs.

Remove the upper intake manifold.

Both sides
3. Disconnect the 6 ignition coil-on-plug electrical connectors.

4. NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.

Remove the 6 bolts and the 6 ignition coil-on-plugs.
- To install, tighten to 7 Nm (62 lb-in).

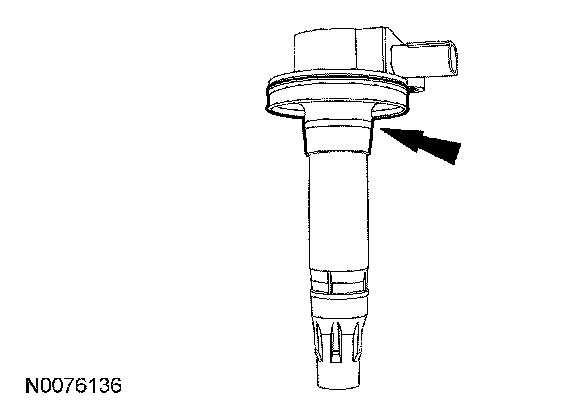

5. Inspect the coil seals for rips, nicks or tears. Remove and discard any damaged coil seals.
- To install, slide the new coil seal onto the coil until it is fully seated at the top of the coil.







6. To install, reverse the removal procedure.
- Apply a small amount of dielectric grease to the inside of the ignition coil-on-plug boots before attaching to the spark plugs.
